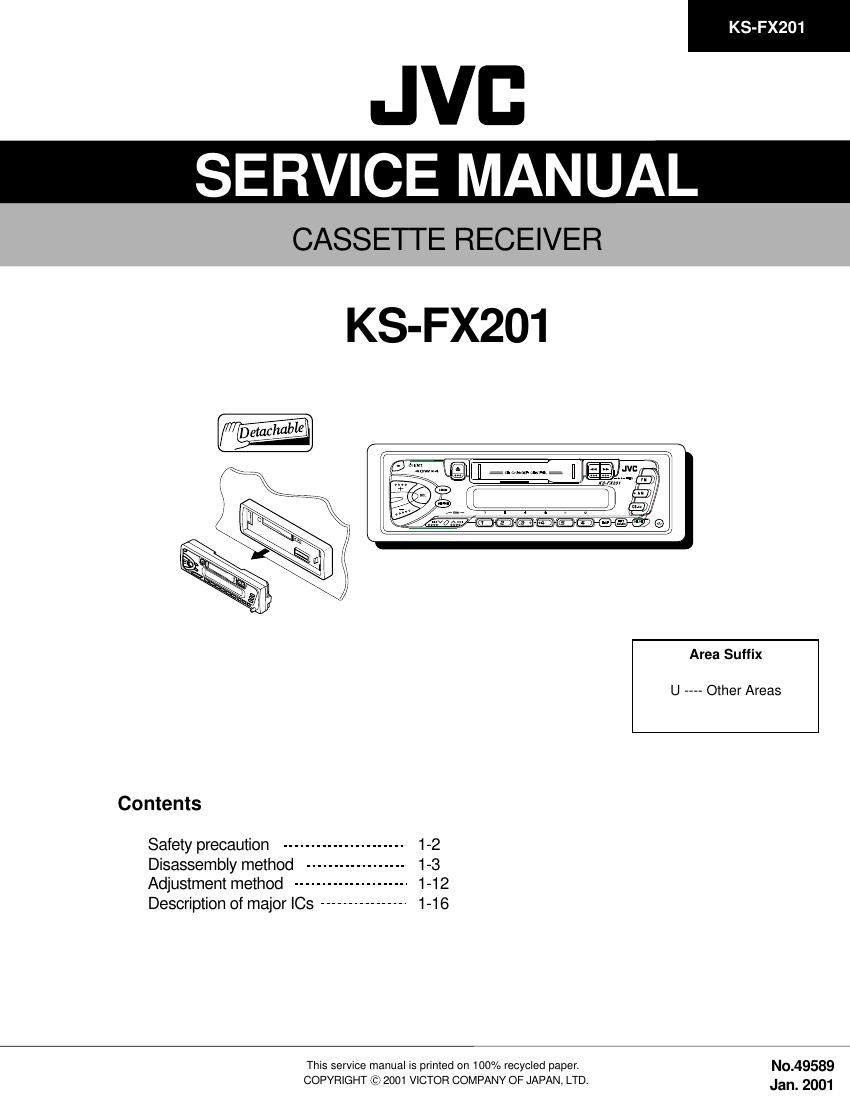

Jvc KSFX 201 Service Manual
This is the 44 pages manual for Jvc KSFX 201 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KSFX 201 Service Manual (Ocr-read)
Page 1
KS-FX201 1-2 ! Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of preforming repair of this system. Safety precaution
Page 2
KS-FX201 1-3 Fig. 3 Disassembly Method Detaching the Front Panel Unit ( See Fig.1 ) Push the Release button in the direction of arrow to detach the front panel unit. Removing the Front Chassis ( See Fig. 2 and 3 ) Disengage the four tabs ( a ) in the right and left sides of unit and pull the front chassis forward to remove it. Removing the Bottom Cover ( See Fig. 2 to 4 ) 1. Removing the front chassis. 2. Turn the unit up side down. 3. Insert the four engagements ( b, c, d, e ) to the screwdriver . 4. Turn the screwdriver and remove the bottom cover. Fig. 2 Fig. 4 Front panel unit Fig. 1 Push the release button Front chassis Bottom cover Top chassis Bottom cover a ab c a Front chassis d Bottom cover Rear panel e
Page 30
KS-FX201 3-2 Main board LCD / Switch board 28 5052 60 61 Exploded view of general assembly and parts list Block No. M M M 1 30 1 15
