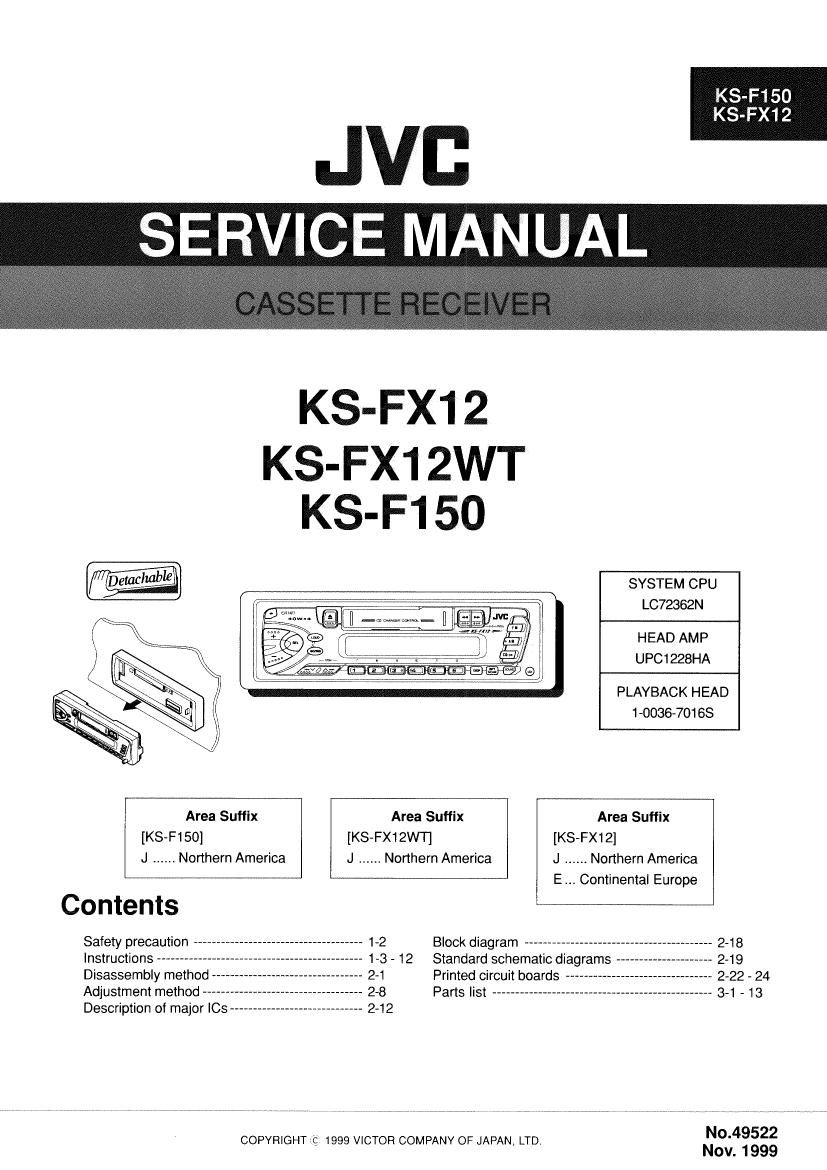

Page 1
KS-F150
KS-FX12
J SERVICE MANUAL
KS-FX1 2
KS-FX1 2WT
KS- F1 50
SYSTEM CPU
LC72362N
HEAD AMP
UPC1228HA
PLAYBACK HEAD
1 0036-701 BS
Area Suffix Area Suffix Area Suffix
[KS-F150] [KS-FX12WI] [KS-FX12]
J ...... Northern America J ...... Northern America J Northern America
E... Continental Europe
Contents
Safety precaution ----------- Block diagram ----------------------------------------- 2-1 8
Instructions ------------- 1-3 - 12 Standard schematic diagrams - 2-19
Disassembly method ~ 2-1 Printed circuit boards M 2-22 - 24
Adjustment method --------------- 2.3 Parts "51 ___________________
Description of major ICs ............................. 2.12
No.49522
COPYRIGHT c 1999 VICTOR COMPANY OF JAPAN, LTD.
Nov. 1999
Page 2
KS-F1 50
KS-FX1 2
1-2
Safety Precaution
A CAUTION Burrs formed during molding may be left over on some parts of the chassis. There-tore,
pay attention to such burrs in the case of preforming repair of this system.
lFeature Check List
Model KS-F150 KS~FX12/FX12WT KS»FX12
Features J J E
Changer Control _ O O
Line Flear Output 0 __ O
