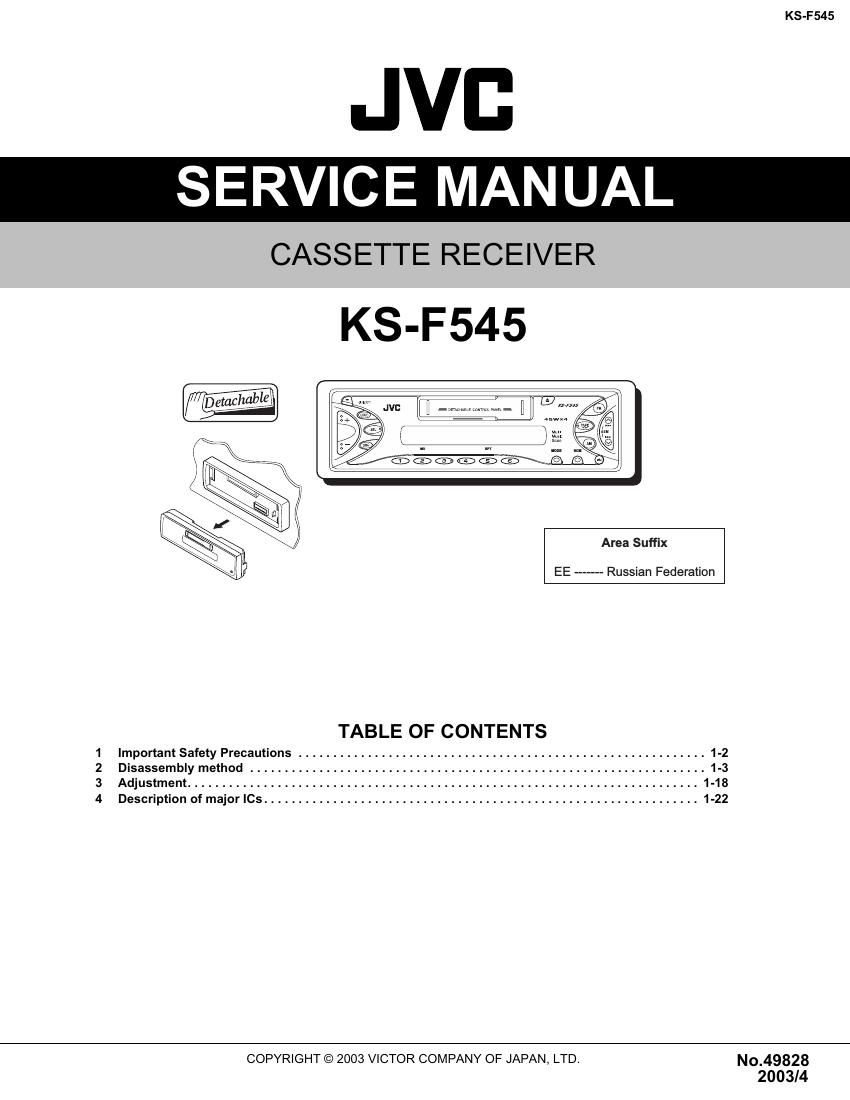

Jvc KSF 545 Service Manual
This is the 103 pages manual for Jvc KSF 545 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KSF 545 Service Manual (Ocr-read)
Page 1
KS-F545 1-2 (No.49828) SECTION 1 Important Safety Precautions 1.1 Safety Precautions ! Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of preforming repair of this system.
Page 2
KS-F545 (No.49828)1-3 SECTION 2 Disassembly method 2.1 Main body 2.1.1 Removing the front panel assembly (See Fig.1) (1) Press the release button and remove the front panel as- sembly. Fig.1 2.1.2 Removing the bottom cover (See Fig.2) (1) Turn the main body upside down. (2) Insert a screwdriver under the joints to release the two joints a on the left side, two joints b on the right side and joint c on the back side of the main body, then remove the bottom cover from the main body. CAUTION: When releasing the joints using a screwdriver, do not damage the main board. Fig.2 2.1.3 Removing the front chassis (See Fig.3) - Prior to performing the following procedures, remove the front panel assembly and bottom cover. (1) Remove the screw A on the both sides of the main body. (2) Release the two joints d and two joints e on the both sides of the main body, then remove the front chassis toward the front. Fig.3 Front panel assembly Release button Bottom cover Joint b Joint b Joint c Joint a Joint a Joint dJoint e Front chassis Joint d A Joint e
