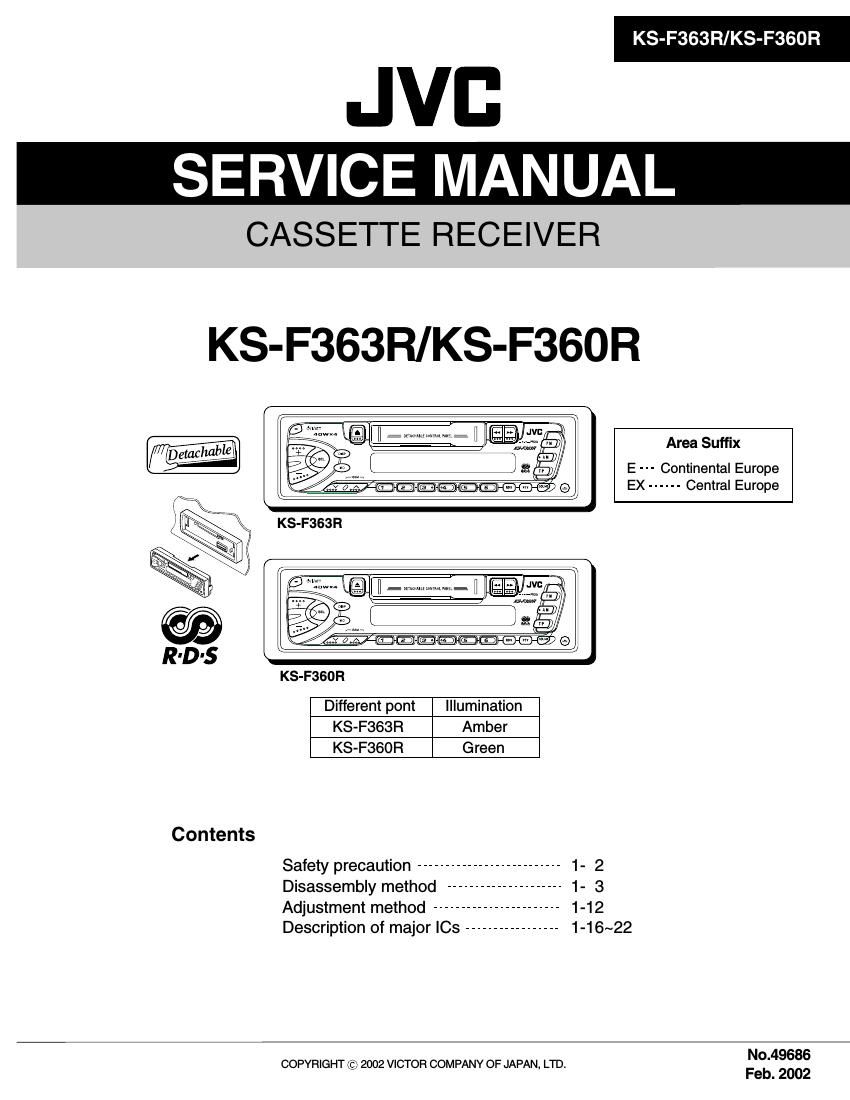

KS-F363R/KS-F360R
SERVICE MANUAL
CASSETTE RECEIVER
KS-F363R/KS-F36OR
Area Suffix
E Continental Europe
EX ------ Central Europe
KS-F360R
Different pont Illumination
KS-F363R Amber
KS-F360R Green
Contents
Safety precaution -------------------------- 1- 2
Disassembly method --------------------- 1- 3
Adjustment method ----------------------- 1-12
Description of major le ----------------- 1-16~22
\ No.49686
COPYRIGHT (g 2002 VICTOR COMPANY OF JAPAN, LTD.
Feb. 2002
Page 2
KS-F363R/KS-F360R
Safety precaution
A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
Page 3
KS-F363R/KS-F360R
Disassembly method
l Removing the front panel assembly
(See Fig.1)
1. Press the eject button in the lower right part of the
front panel. Remove the front panel assembly from
the body.
Front panel assembly
Eject button
Fig.1
l Removing the front chassis assembly
(See Fig.2 and 3)
- Prior to performing the following procedure, remove
the front panel assembly.
1. Release the four joint tabs a on both sides of the
front chassis assembly and remove the front chassis
assembly toward the front.
Front chassis assembly
Fig.2
Tab a Front chassis
assembly
Fig.3
