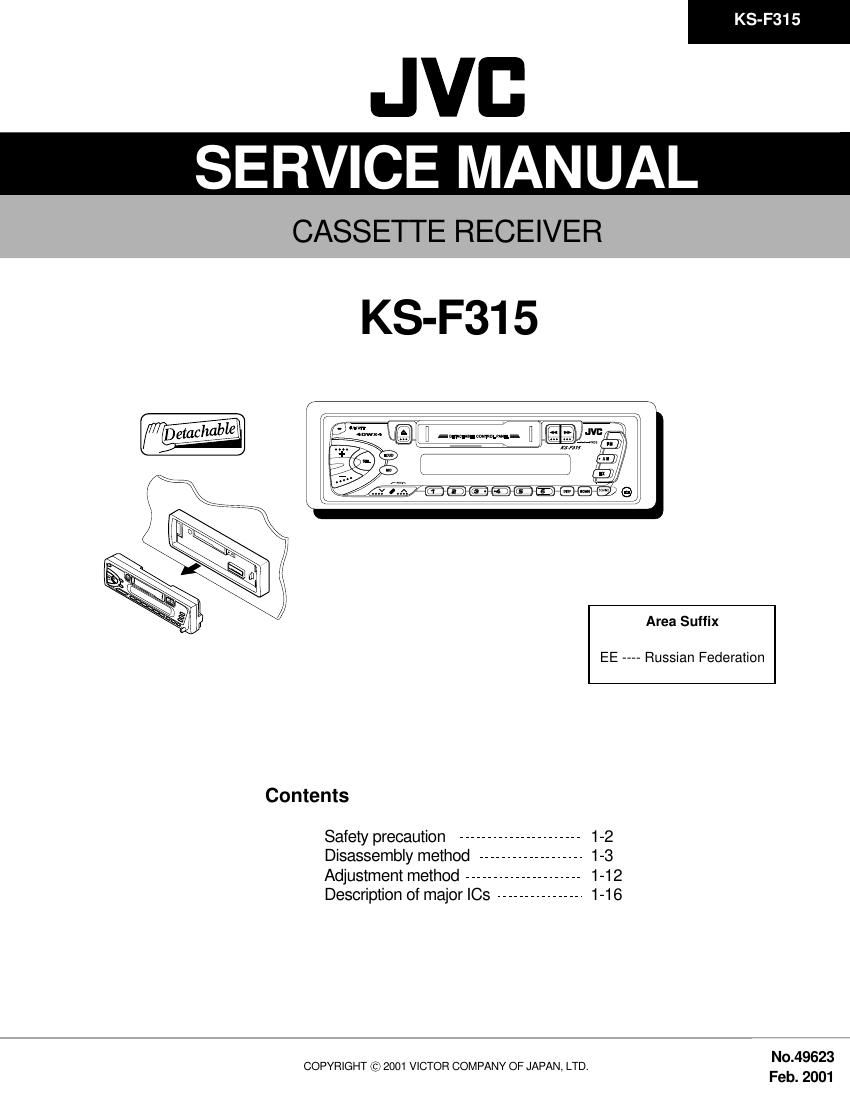

Jvc KSF 315 Service Manual
This is the 42 pages manual for Jvc KSF 315 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KSF 315 Service Manual (Ocr-read)
Page 1
KS-F315 1-2 ! Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of preforming repair of this system. Safety precaution
Page 2
KS-F315 1-3 Fig. 3d Front chassis a e e a Disassembly method Detaching the Front Panel Unit ( See Fig.1 ) Push the Release button in the direction of arrow to detach the front panel unit. Removing the Front Chassis ( See Fig. 2 and 3 ) Disengage the four tabs ( a ) in the right and left sides of unit and pull the front chassis forward to remove it. Removing the Bottom Cover ( See Fig. 2 to 4 ) 1. Removing the front chassis. 2. Turn the unit up side down. 3. Insert the six engagements ( b, c, d, e, f ) to the screwdriver . 4. Turn the screwdriver and remove the bottom cover. Fig. 1Push the release button Front panel unit aa Fi g. 2 Top chassisFront chassis Bottom cover b c Fig. 4f Bottom cover Rear panel
