Jvc KSF 150 Service Manual
This is the 56 pages manual for Jvc KSF 150 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KSF 150 Service Manual (Ocr-read)

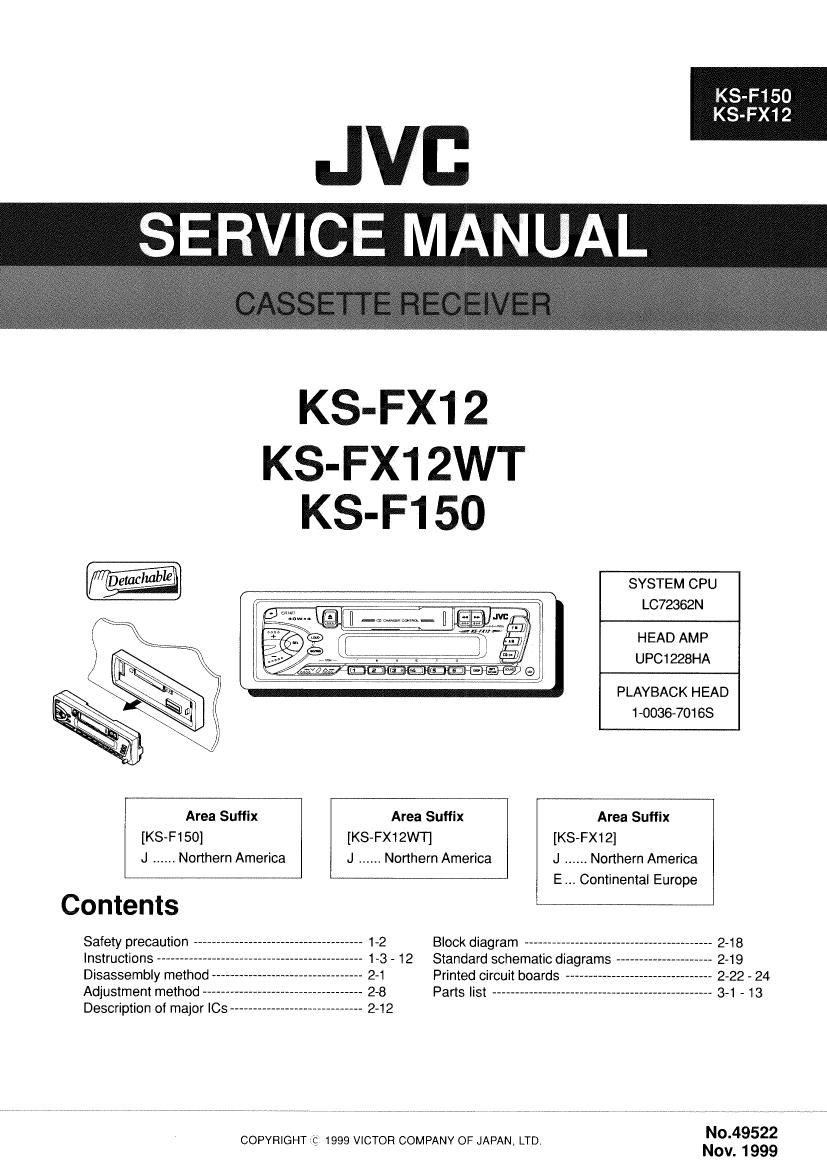

Page 1
KS-F150
KS-FX12
J SERVICE MANUAL
KS-FX1 2
KS-FX1 2WT
KS- F1 50
SYSTEM CPU
LC72362N
HEAD AMP
UPC1228HA
PLAYBACK HEAD
1 0036-701 BS
Area Suffix Area Suffix Area Suffix
[KS-F150] [KS-FX12WI] [KS-FX12]
J ...... Northern America J ...... Northern America J Northern America
E... Continental Europe
Contents
Safety precaution ----------- Block diagram ----------------------------------------- 2-1 8
Instructions ------------- 1-3 - 12 Standard schematic diagrams - 2-19
Disassembly method ~ 2-1 Printed circuit boards M 2-22 - 24
Adjustment method --------------- 2.3 Parts "51 ___________________
Description of major ICs ............................. 2.12
No.49522
COPYRIGHT c 1999 VICTOR COMPANY OF JAPAN, LTD.
Nov. 1999
Page 2
KS-F1 50
KS-FX1 2
1-2
Safety Precaution
A CAUTION Burrs formed during molding may be left over on some parts of the chassis. There-tore,
pay attention to such burrs in the case of preforming repair of this system.
lFeature Check List
Model KS-F150 KS~FX12/FX12WT KS»FX12
Features J J E
Changer Control _ O O
Line Flear Output 0 __ O
