Extracted text from Jvc KSF 110 Service Manual (Ocr-read)

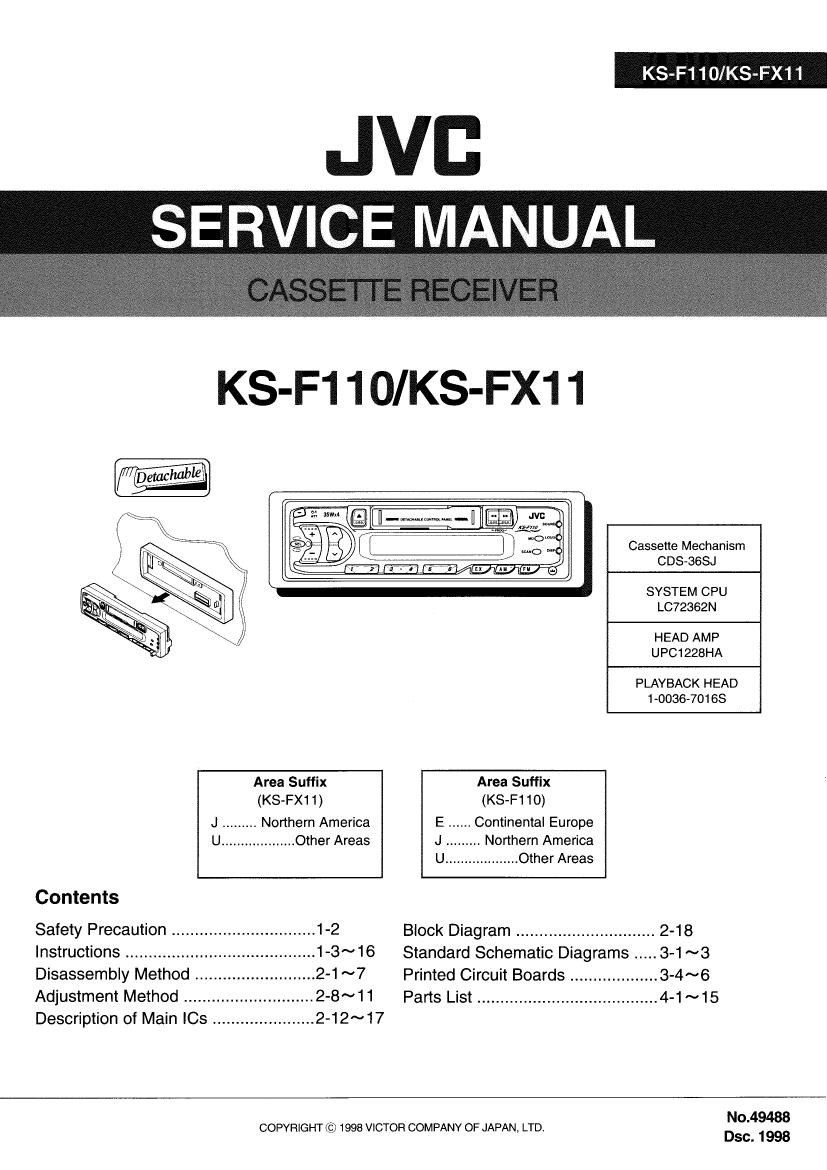

Page 1
KS-F11 0/KSvFX1 1
JVC
SERV'CEMANUAL
KS-F1 10/KS-FX1 1
Cassette Mechanism
CDS-368J
SYSTEM CPU
LC72362N
HEAD AMP
U PC1228HA
PLAYBACK HEAD
1-0036-70168
Area Suffix Area Suffix
(KS-FX11) (KS-F110)
J ......... Northern America E ...... Continental Europe
U .................. Other Areas J ......... Northern America
U ................... Other Areas
Contents
Safety Precaution ............................... 1 -2 Block Diagram .............................. 2-18
Instructions ......................................... 1 -3~16 Standard Schematic Diagrams ..... 3-1~3
Disassembly Method .......................... 2-1~7 Printed Circuit Boards ................... 3-4~6
Adjustment Method ............................ 2-8~11 Parts List ....................................... 4-1 ~15
Description of Main le ...................... 2-12~17
No.49488
COPYRIGHT © 1998 VICTOR COMPANY OF JAPAN, LTD.
Dsc. 1998
Page 2
KS-F110[KS-FX11
Safety Precaution
ACAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs when preforming repairs of this system.
IFeature Check List
Model KS-F11O KS-F110 KS-FX11
Features J/U E J/U
Changer Control - - 0
Line Output - O
Illumination Color Green Amber Green
