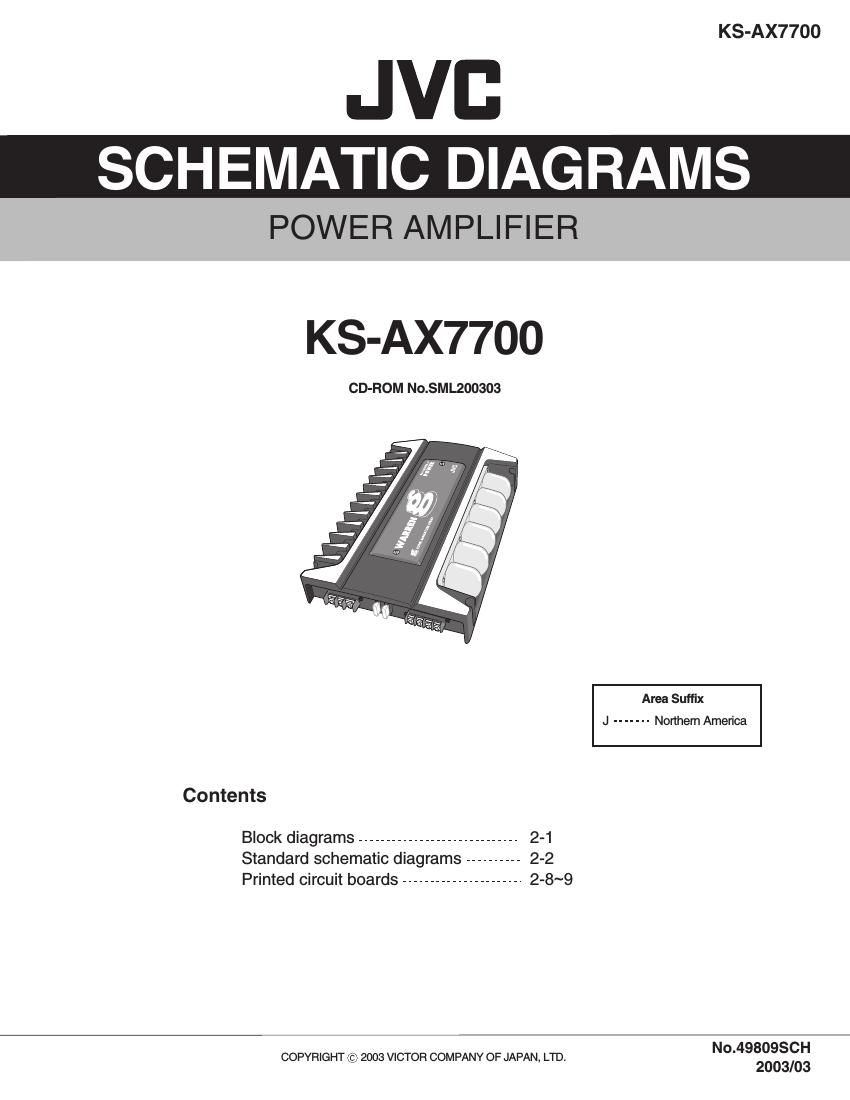

Page 1
KS-AX7700
JVI:
SCHEMATICD GR 3
POWER AMPLIFIER
KS-AX7700
CD-ROM No.8ML200303
Area Suffix
J ------- Northern America
Contents
Block diagrams ............................. 2-1
Standard schematic diagrams - 2-2
Printed circuit boards ..................... 2-8~9
No.49809$CH
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LTD.
2003/03
Page 2
KS-AX7700
Safety precaution
A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
