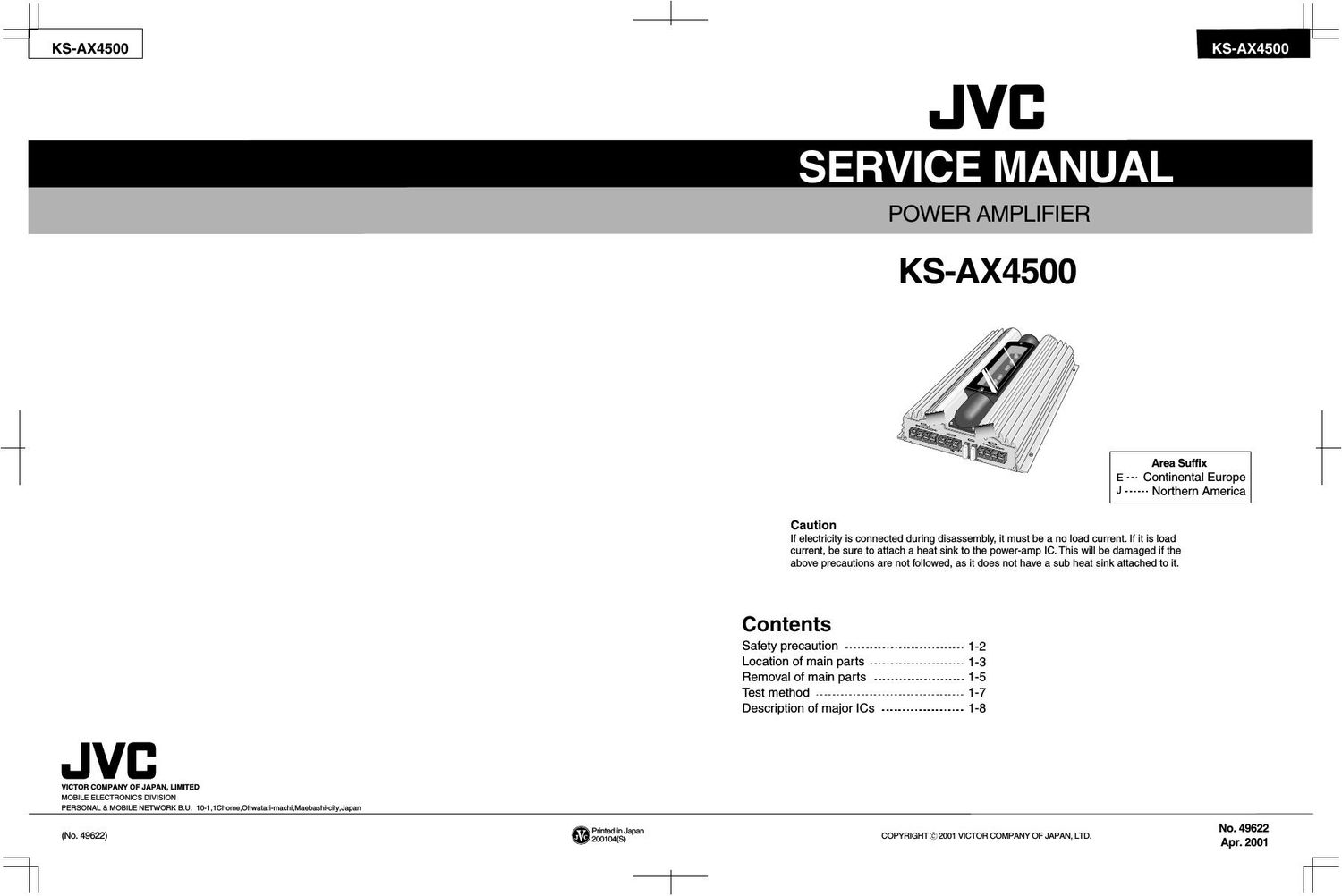

Page 1
KS-AX4500 KS-AX4500
JVG
SERVICE MANUAL
POWER AMPLIFIER
KS-AX4500
Area Suffix
E Continental Europe
J ------ Northern America
Caution
lf electricity is connected during disassembly, it must be a no load current. lf it is load
current, be sure to attach a heat sink to the power-amp 10. This will be damaged it the
above precautions are not followed, as it does not have a sub heat sink attached to it.
Co n te n ts
Safety precaution ............................. 1.2
Location of main parts ..
Removal of main parts ...................... 1.5
Test method .................................... 1.7
Description of major ICs .................... 1-8
VICTOR COMPANY OF JAPAN, LIMITED
MOBILE ELECTRONICS DIVISION
PERSONAL & MOBILE NETWORK B.U. 10v1,1Chome,0hwatari-machi,Maebashi~city,Japan
(No. 49622):6ISI%€1IHSIJapan COPYRIGHTED) 2001 VICTOR COMPANY OF JAPAN, LTD. NO. 49622
Apr. 2001
f l7
Page 2
KS-AX4500
A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
