Jvc KDSX 883 Service Manual
This is the 55 pages manual for Jvc KDSX 883 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KDSX 883 Service Manual (Ocr-read)

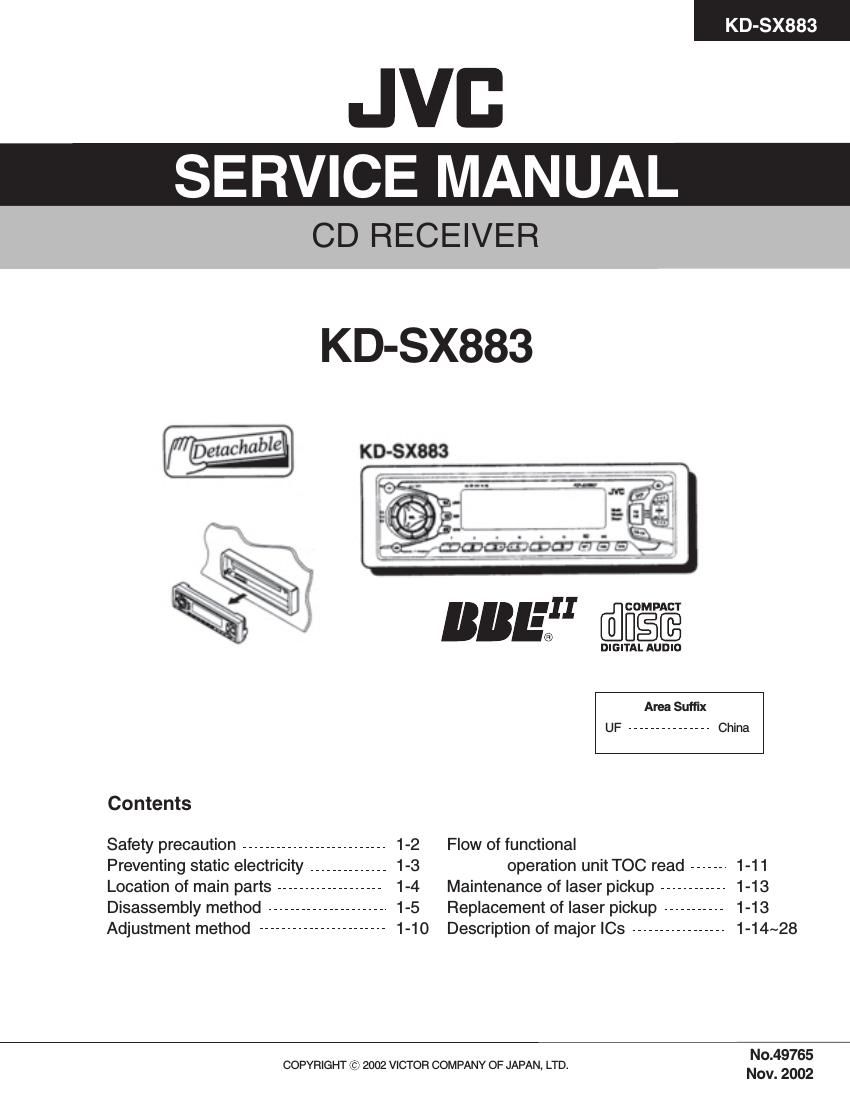

Page 1
JVB
SERVICE MANUAL
CD RECEIVER
KD-SX883
M i" am
TAL AUDIO
Area Suffix
UF --------------- China
Contents
Safety Precaution -------------------------- 1-2 Flew of functional
Preventing static electricity ..... 1-3 operation unit TOC read ------ 1-11
Location Of main parts ------------------- 1-4 Maintenance of laser pickup ............ 1-13
Disassembly method --------------------- 1-5 Replacement of laser pickup ........... 1-13
Adjustment method ---------------- 1-10 Description of major ICs ................. 1-14~28
No.49765
COPYRIGHT (0 2002 VICTOR COMPANY OF JAPAN, LTD.
Nov. 2002
Page 2
KD-SX883
Safety precaution
1-2
A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
A CAUTION Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
