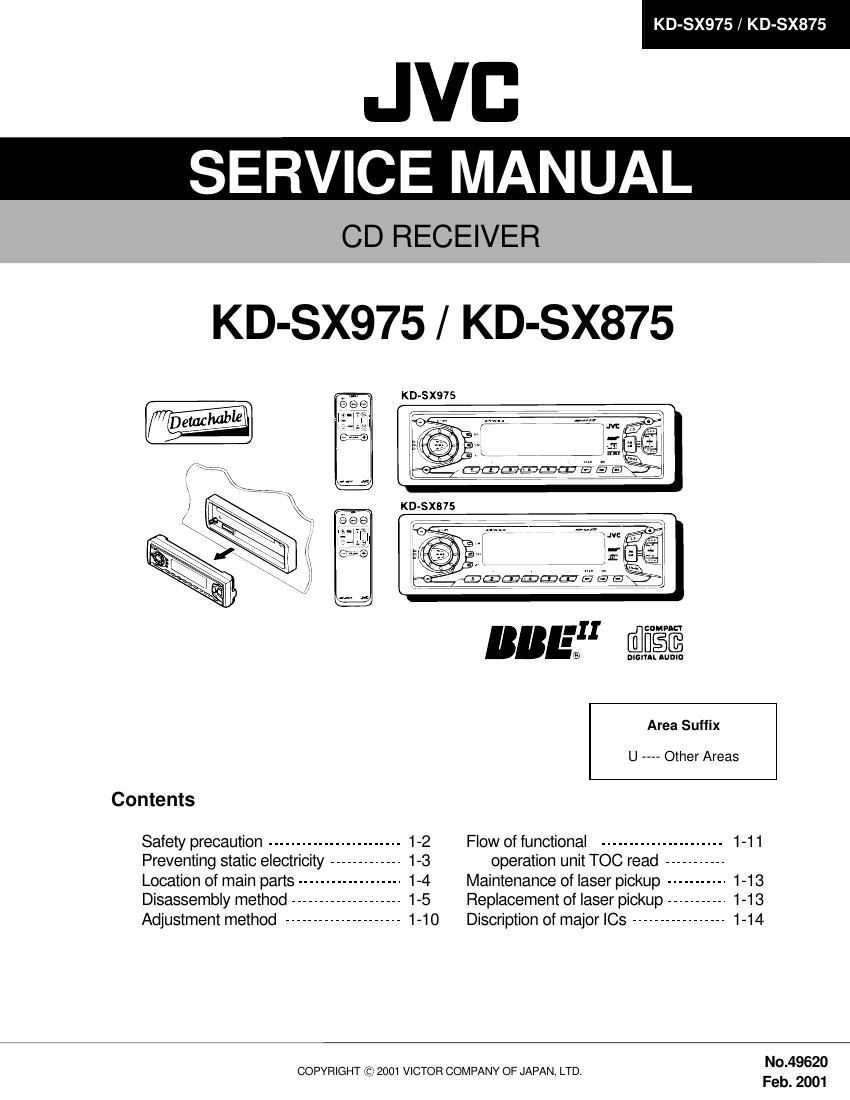

Page 1
KD-SX975 / KD-SX875
JVB
SERVICE MANUAL
CD RECEIVER
KD-SX975 / KD-SX875
KD-SX975
BB '1" @058
Area Suffix
U Other Areas
Contents
Safety precaution ------------------------ 1-2 Flow of functional ...................... 1-1 1
Preventing static electricity ------------- 1-3 operation unit TOC read ...........
Location of main parts --------- Maintenance of laser pickup ----------- 1-1 3
Disassembly method Replacement of laser pickup ---------- 1-1 3
AdeSthNt method --------------------- 1-1 0 Discription of major ICs ................. 1-14
COPYRIGHT CC) 2001 VICTOR COMPANY OF JAPAN, LTD. 0-49620
Feb. 2001
Page 2
KD-SX975 / KD-SX875
Safety precaution
A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
A CAUTION Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
1-2
