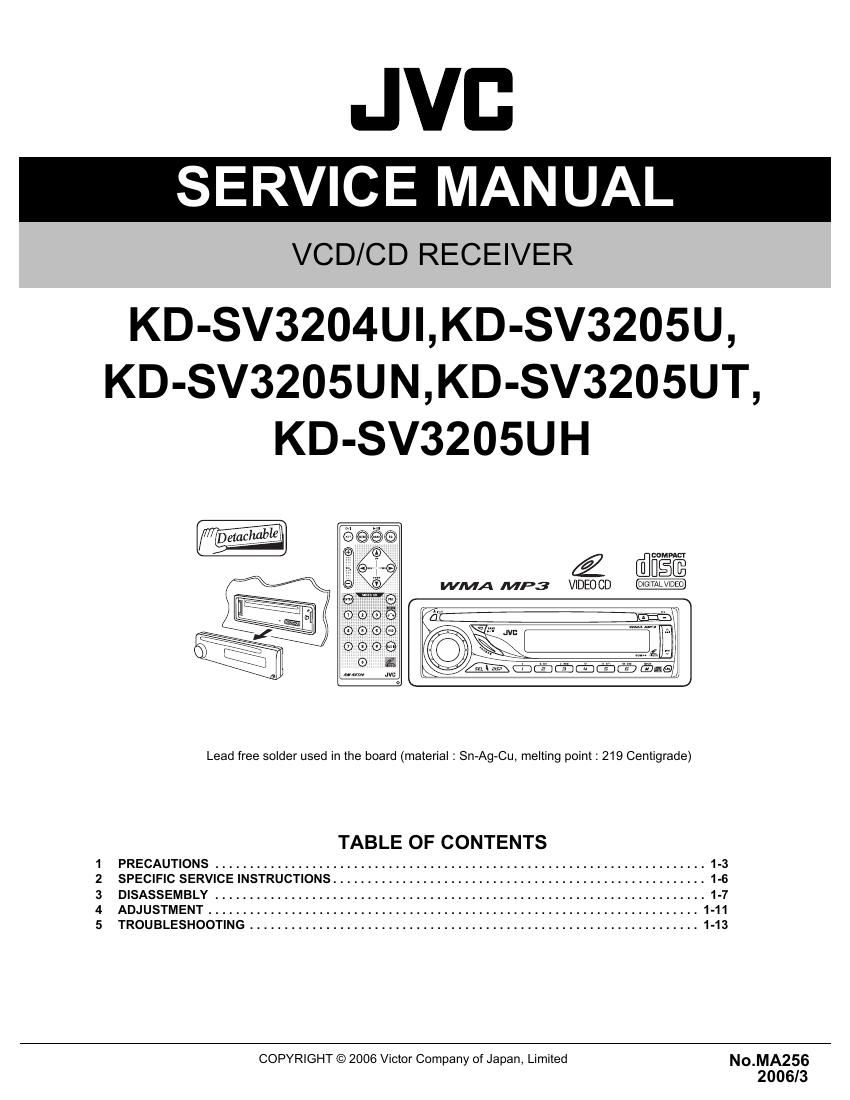

Jvc KDSV 3205 UN Service Manual

Page 2

SPECIFICATION

AUDIO AMPLIFIER SECTION

Maximum Power Output Front

50 W per channel

Rear

50 W per channel

Continuous Power Output Front

19 W per channel into 4 Q4 40 Hz to 20 000 HZ at no more than

(RMS) 0.8% total harmonic distortion.
Rear 19 W per channel into 4 Q, 40 Hz to 20 000 HZ at no more than
0.8% total harmonic distortion.
Load Impedance 4 £2 (4 Q to 8 Q allowance)
Tone Control Range Bass :10 dB at 100 HZ
Treble :10 dB at 10 kHz
Frequency Response 40 Hz to 20 000 HZ
Signal-to-Noise Ratio 70 dB
Line-Out Level/Impedance 2.5 V/20 k9 load (full scale)
Output Impedance 1 k9

Other Terminal

LINE IN, CD changer

VIDEO SECTION

Color system PAL/NTSC
Video output (composite) 1 Vp-p/75 Q
TUNER SECTION
Frequency Range FM 87.5 MHZ to 108.0 MHz
AM 531 kHz to 1 602 kHz
FM Tuner Usable Sensitivity 11.3 dBf (1.0 uV/75 Q)
50 dB Quieting Sensitivity 16.3 dBf (1.8 uV/75 (2)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 30 dB
AM Tuner Sensitivity 20 uV
Selectivity 35 dB
VCD/CD PLAYER SECTION
Type Compact disc player

Signal Detection System

Non-contact optical pickup (semiconductor laser)

Number of Channels

2 channels (stereo)

Frequency Response

5 HZ to 20 000 HZ

Dynamic Range

96 dB

Signal-to-Noise Ratio

98 dB

Wow and Flutter

Less than measurable limit

MP3 Decoding Format

MPEG1/2 Audio Layer 3
Max. Bit Rate: 320 kbps

WMA (Windows Media® Audio) Decoding Format

Max. Bit Rate: 192 kbps

GENERAL

Power Requirement

Operating Voltage:

Grounding System

Negative ground

Allowable Operating Temperature

0°C to +40°C

Dimensions (W x H x D) Installation Size (approx.)

182 mm><52 mm>< 150 mm

Panel Size (approx.)

188mm><58mm><11mm

Mass (approx)

1.4 kg (excluding accessories)

Design and specifications are subject to change without notice.

1-2 (No.MA256)
