Jvc KDSHX 751 Service Manual
This is the 65 pages manual for Jvc KDSHX 751 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KDSHX 751 Service Manual (Ocr-read)
Page 1
outrun-n
JVC

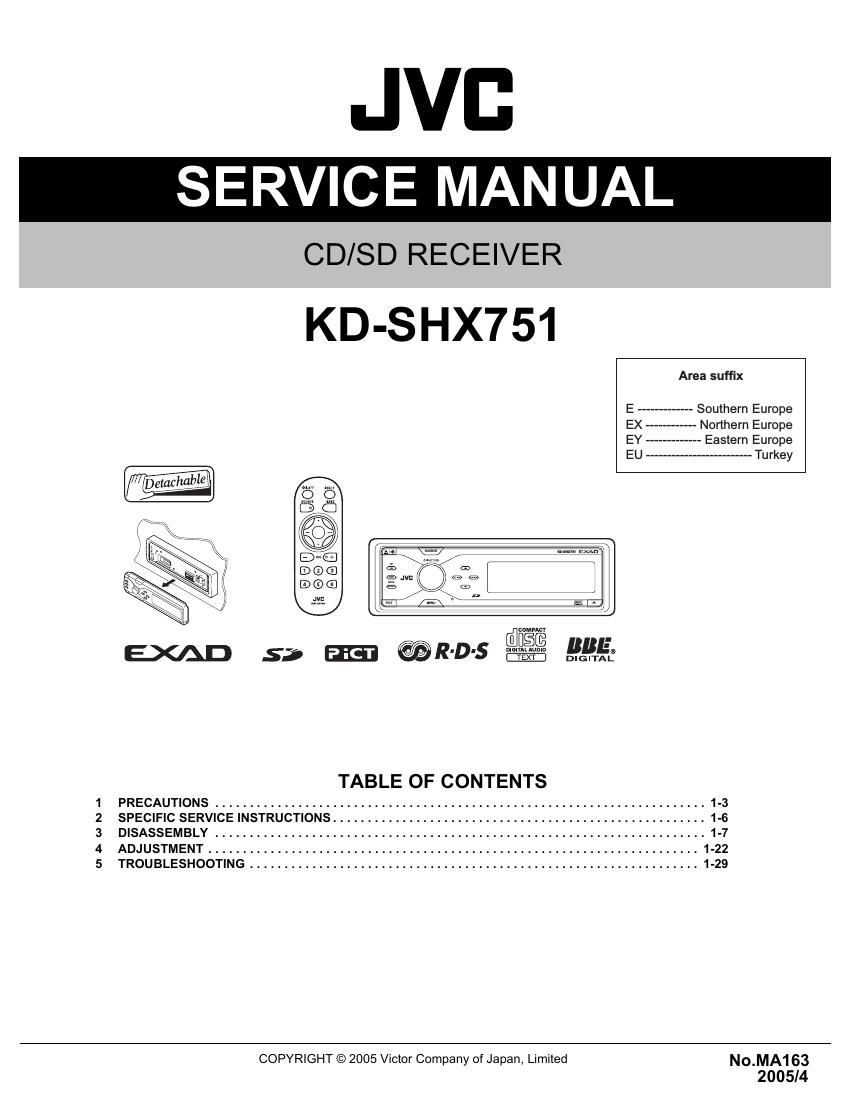

SERVICE MANUAL
CD/SD RECEIVER
KD-SHX751
Area suffix
E ............. southern Europe
EX .- Northern Europe
EY .. - Eastern Europe
EU .___..............._~---~ Turkey
amp-m
E>
TABLE OF CONTENTS
PRECAUTIONS ....................................................................... 1-3
COPYRIGHT © 2005 Victor Company of Japan, Limited NO.MA163
SPECIFIC SERVICE INSTRUCTIONS .....
DISASSEMBLY .....................
ADJUSTMENT ......................
TROUBLESHOOTING .................
2005/4
Page 2
SPECIFICATION
AUDIO AMPLIFIER SECTION
Maximum Power Output Front 52 W per channel
Rear 52 W per channel
Continuous Power Output (RMS) Front 22 W per channel into 4 £2, 40 Hz to 20 000 Hz at no more than 0.8% total
harmonic distortion.
Rear 22 W per channel into 4 £2, 40 Hz to 20 000 Hz at no more than 0.8% total
harmonic distortion.
Load Impedance 4 Q (4 Q to 8 £2 allowance)
Equalizer Control Range Frequencies 60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.4 kHz, 6 kHz, 12 kHz
Level :10 dB
Frequency Response 40 Hz to 20 000 Hz
Signal-to-Noise Ratio 70 dB
Line-In Level/Impedance LINE IN 1.5 V120 kn load
Line-Out Level/Impedance LINE OUT 5.0 V/20 kn load (full scale)
Output Impedance 1 k9
Other Terminals SUBWOOFER OUT
Changer control
Steering wheel remote input
TUNER SECTION
Frequency Range FM 87.5 MHz to 108.0 MHZ
AM (MW) 522 kHz to 1 620 kHz
(LW) 144 kHZ to 279 kHz
FM Tuner Usable Sensitivity 11.3 dBf(1.0 pV/75 £2)
50 dB Quieting Sensitivity 16.3 dBf(1.8 uv175 :2)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 35 dB
Capture Ratio 1.5 dB
MW Tuner Sensitivity 20 pV
Selectivity 65 dB
LW Tuner Sensitivity 50 pV
CDISD PLAYER SECTION
Type Compact disc player
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of Channels 2 channels (stereo)
Frequency Response 5 Hz to 20 000 Hz
Dynamic Range 98 dB
Signal-to-Noise Ratio 102 dB
Wow and Flutter Less than measurable limit
MP3 (MPEG Audio Layer 3) Max. Bit Rate 320 kbps
WMA (Windows Media Audio) Max. Bit Rate 192 kbps
Playable SD Card Format FAT 12/16
Storage Up to 512 MB
Playable Audio Format for SD Card MP3/WMA
GENERAL
Power Requirement (Operating Voltage DC 14.4 V (11 V to 16 V allowance)
Grounding System Negative ground
Allowable Operating Temperature 0°C to +40°C
Dimensions (W X H x D) Installation Size (approx) 182 mm X 52 mm X 157 mm
Panel Size (approx) 188 mm x 58 mm x 13 mm
Mass (approx) 1.7 kg (excluding accessories)
- Design and specifications are subject to change without notice.
- Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/
or other countries.
- SD logo is a trademark.
1-2 (No.MA163)
