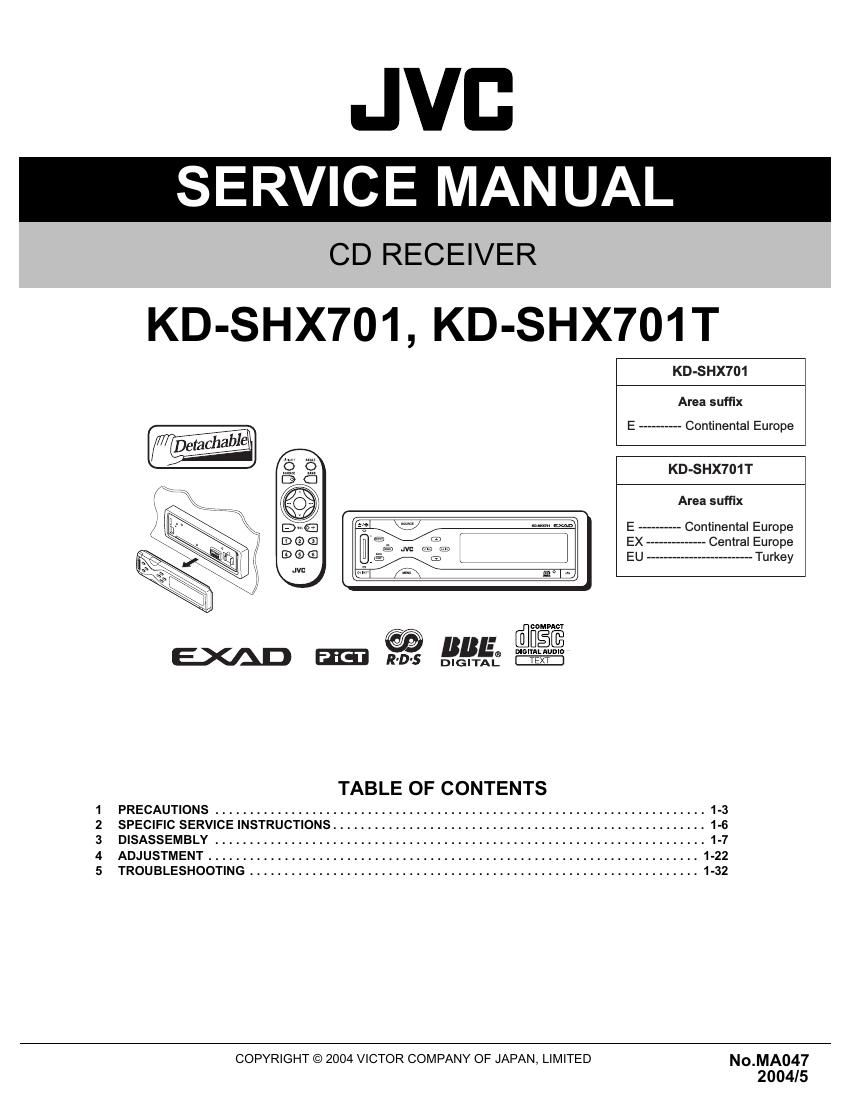

Jvc KDSHX 701 T Service Manual

Page 2

SPECIFICATION

AUDIO AMPLIFIER SECTION

Maximum Power Output Front 50 W per channel

Rear 50 W per channel
Continuous Power Output Front 19 W per channel into 4 £2, 40 Hz to 20 000 Hz at no more
(RMS) than 0.8% total harmonic distortion.

Rear 19 W per channel into 4 £2, 40 Hz to 20 000 Hz at no more

than 0.8% total harmonic distortion.

Load Impedance

4 Q (4 Q to 8 Q allowance)

Equalizer Control Range

Frequencies

60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.4 kHz, 6 kHz, 12 kHz

Level 110 dB
Frequency Response 40 Hz to 20 000 Hz
Signal-to-Noise Ratio 70 dB
Line-In Level/Impedance LINE IN 15 V/20 k9 load
Line-Out Level/Impedance LINE OUT 50 V/20 k9 load (full scale)
Output Impedance 1 k!)
Other Terminals SUBWOOFER OUT
Changer control
Steering wheel remote input
TUNER SECTION
Frequency Range FM 875 MHz to 108.0 MHZ
AM MW:522 kHz to 1 620 kHz

LW2144 kHz to 279 kHz

[FM Tuner] Usable Sensitivity 11.3 dBf(1.0 pV/75 £2)

50 dB Quieting Sensitivity 16.3 dBf (1.8 LIV/75 52)

Alternate Channel Selectivity (400 kHz) 65 dB

Frequency Response 40 Hz to 15 000 Hz

Stereo Separation 35 dB

Capture Ratio 1.5 dB
[AM Tuner] Sensitivity 20 uV

Selectivity 65 dB

CD PLAYER SECTION

Type Compact disc player
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of channels 2 channels (stereo)
Frequency Response 5 Hz to 20 000 Hz
Dynamic Range 98 dB
Signal-to-Noise Ratio 102 dB
Wow and Flutter Less than measurable limit
MP3 (MPEG Audio Layer 3) Max, Bit rate 320 Kbps
WMA (Windows Media Audio) Max. Bit rate 192 Kbps

GENERAL

Power Requirement

lOperating Voltage

DC 144 V (11 V to 16 V allowance)

Grounding System

Negative ground

Allowable Operating Temperature

0°C to +40°C

Dimensions (W x H x D)

Installation Size

182 mm><52 mm x 157 mm

Panel Size

188 mm><58 mm><13 mm

Mass

1.7 kg (excluding accessories)

Design and specifications are subject to change without notice.

1-2 (No.MAO47)
