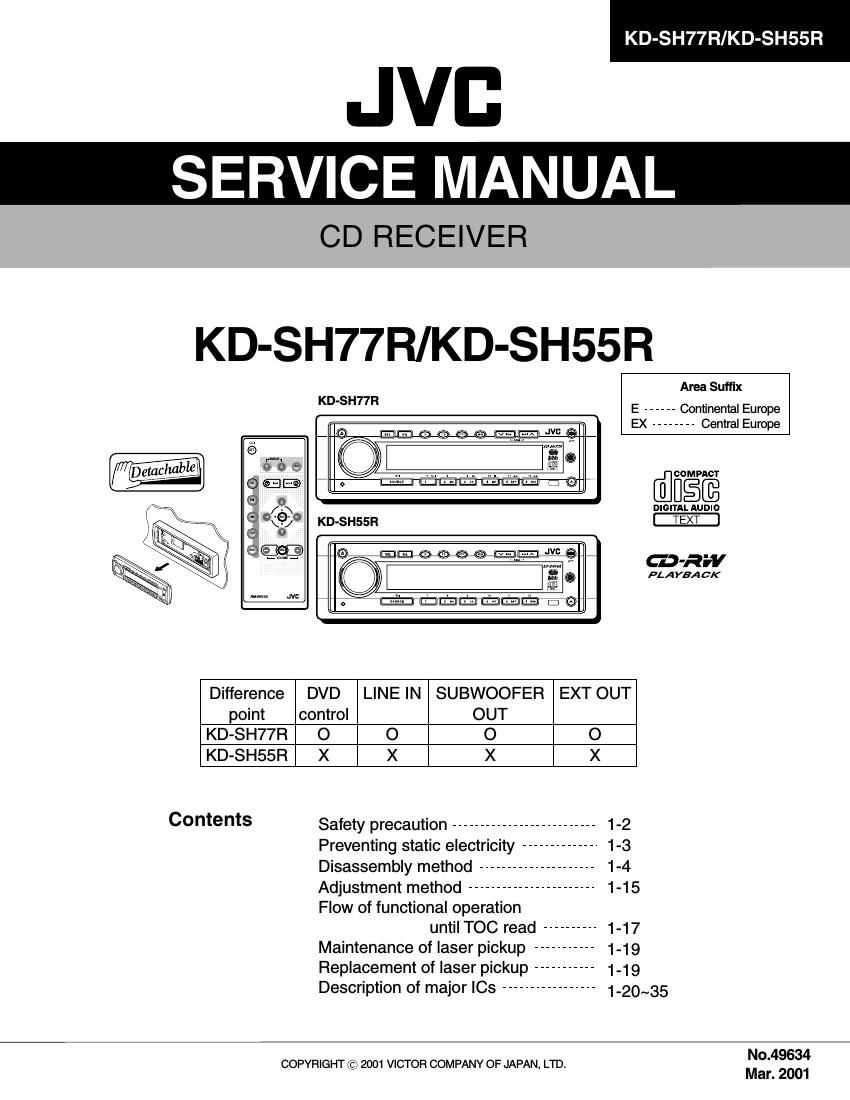

Page 1
KD-SH77R/KD-SH55R
SERVICE MANUAL
JVB
CD RECEIVER
KD-SH77R/KD-SH55R
Area Suffix
KD-SH77R E ------ Continental Europe
EX -------- Central Europe
6
5°30
G) o
@figfi
a °€®>° DIGI'l'rAEI.XI¥JDIO
-. é _-
GJ-RW
PLAYEACK
Difference DVD LINE IN SUBWOOFER EXT OUT
point control OUT
KD-SH77R O O O O
KD-SH55R X X X X
Contents Safety precaution -------------------------- 1-2
Preventing static electricity -------------- 1-3
Disassembly method -----------
Adjustment method ----------------------- 1-15
Flow of functional operation
until TOC read ---------- 1-17
Maintenance of laser pickup ----------- 1-19
Replacement of laser pickup ----------- 1-19
Description of major ICs ----------------- 1-20445
No.49634
COPYRIGHT © 2001 VICTOR COMPANY OF JAPAN, LTD.
Mar. 2001
Page 2
KD-SH77R/KD-SH55R
Safety precaution
A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
A CAUTION Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
Page 45
KD-SH77R/SH55R
PARTS LIST
[ KD-SH77R]
* All printed circuit boards and its assemblies are not available as service parts.
Area suffix
E ----------- Continental Europe
EX --------------- Central Europe
- Contents -
Exploded view of general assembly and parts IiSt ......................................... 3- 2
CD mechanism assembly and parts list ...................................................... 3- 5
Electrical parts list .................................................................................. 3_ 8
Packing materials and accessories parts list ............................................... 3-16
3-1
