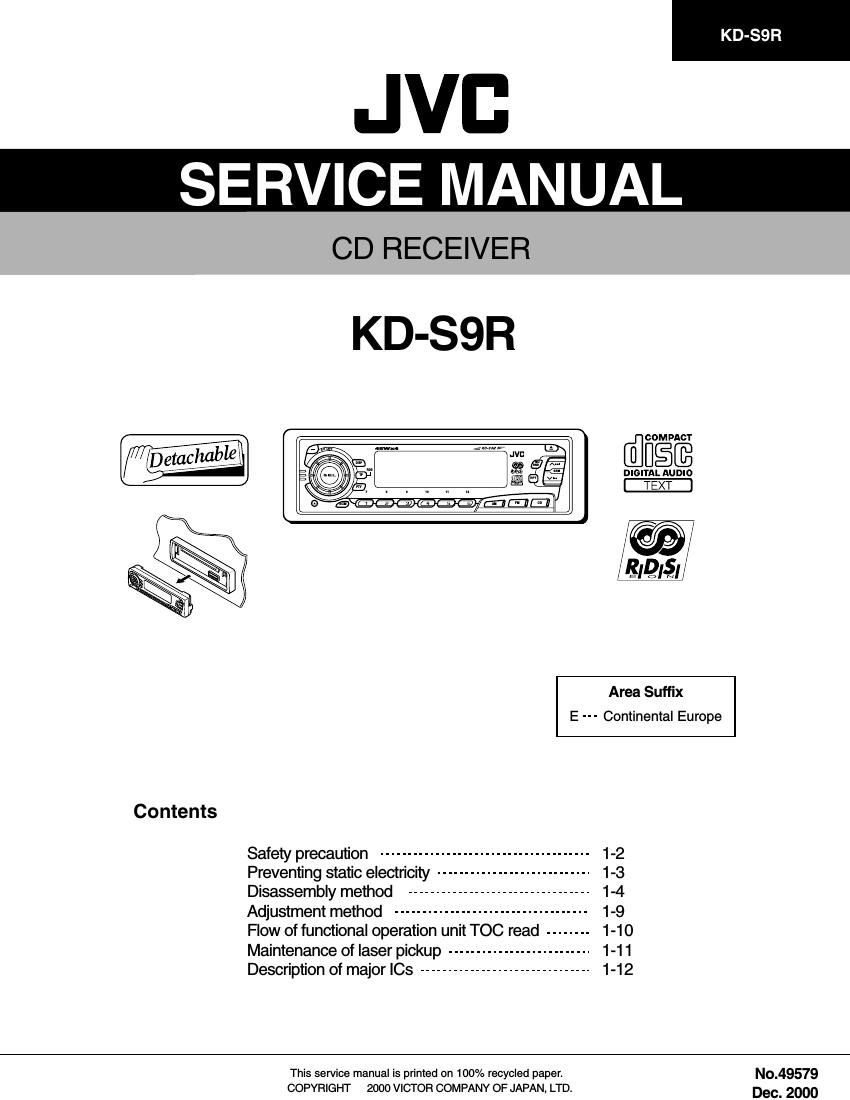

SERVICE MANUAL
JVB
CD RECEIVER
KD-SQR
Contents
COMPACT
DIGITAL AUDIO
l l
l I
l @1215! /
Area Suffix
E Continental Europe
Safety precaution -------------------------------------- 1-2
Preventing static electricity ---------------------------- 1-3
Disassembly method --------------------------------- 1-4
Adjustment method ----------------------------------- 1-9
Flow of functional operation unit TOC read -------- 1-10
Maintenance of laser pickup .......................... 1-11
Description of major le ------------------------------- 1-12
This service manual is printed on 100% recycled paper.
COPYRIGHT 2000 VICTOR COMPANY OF JAPAN, LTD.
No.49579
Dec. 2000
Page 2
KD-SQR
Safety precaution
A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
A CAUTION Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
1-2
