Extracted text from Jvc KDS 8 R Service Manual (Ocr-read)

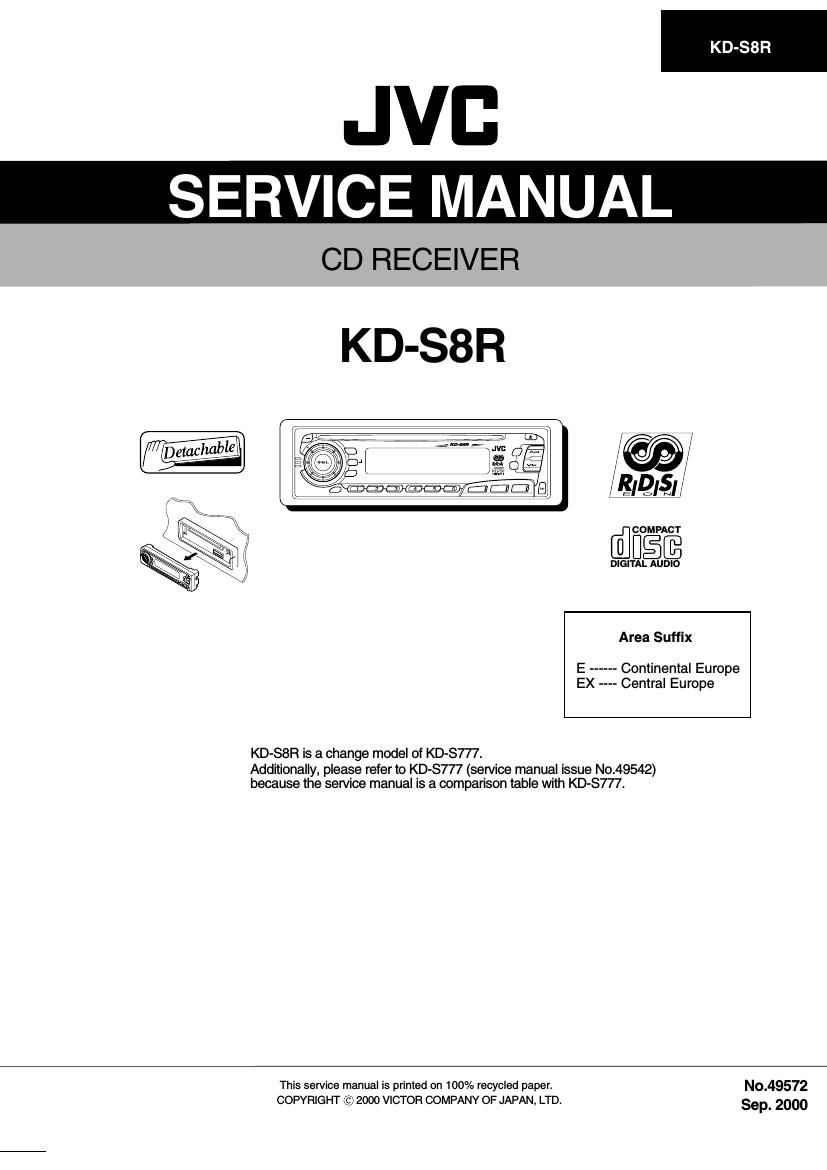

Page 1
Printed in Japan 200009(V) VICTOR COMPANY OF JAPAN, LIMITED MOBILE ELECTRONICS DIVISION PERSONAL & MOBILE NETWORK B.U. 10-1,1Chome,Ohwatari-machi,Maebashi-city,Japan (No.49572) KD-S8R
Page 2
FSUN3117-312 [E] INSTRUCTIONS BEDIENUNGSANLEITUNG MANUEL DINSTRUCTIONS GEBRUIKSAANWIJZING KD-SX878R/KD-S777R/KD-S8R CD RECEIVER CD-RECEIVER RECEPTEUR CD CD-RECEIVER ENGLISH DEUTSCH NEDERLANDS FRANÇAIS For installation and connections, refer to the separate manual. Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch. Pour linstallation et les raccordements, se référer au manuel séparé. Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de desbetreffende handleiding. COMPACT DIGITAL AUDIO KD-SX878R 40Wx4TP DISP RPTSSM SCM MO RND 7 8 9 10 11 12PTY CD /IAT T/ RDS CD-CHFM/AMCD 5 ∞ DAB KD-S8RKD-S777R 40Wx4TP DISP RPTSSM SCM MO RND 7 8 9 10 11 12PTY AMFMCD /IA T T/ RDS 40Wx4TP DISP RPTSSM SCM MO RND 7 8 9 10 11 12PTY AMFMCD /IAT T/ RDS COVER.KD-SX878R/S777R[E]E,G,F,N 08/09/2000, 04:02 PM3
Page 16
15 ENGLISH 1 Press and hold PTY (programme type) for more than 1 second while listening to an FM station. The last selected PTY code appears. 2 Select one of PTY codes stored in preset number buttons (1 to 6). PTY search for your favorite programme starts after 5 seconds. -If there is a station broadcasting a programme of the same PTY code you selected, that station is tuned in. -If there is no station broadcasting a programme of the same PTY code you selected, the station will not change. Note: In some areas, the PTY search will not work correctly. To search your favorite programme type 2 1 PTY Ex. When ROCK M is stored in preset number button 2. EN10-17.KD-SX878R/S777R[E]/f 08/09/2000, 04:04 PM15
Page 46
45 ENGLISH SPECIFICATIONS AUDIO AMPLIFIER SECTION Maximum Power Output: Front: 40 W per channel Rear: 40 W per channel Continuous Power Output (RMS): Front: 16 W per channel into 4 Ω, 40 Hz to 20,000 Hz at no more than 0.8% total harmonic distortion. Rear: 16 W per channel into 4 Ω, 40 Hz to 20,000 Hz at no more than 0.8% total harmonic distortion. Load Impedance: 4 Ω (4 Ω to 8 Ω allowance) Tone Control Range Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz Frequency Response: 40 Hz to 20,000 Hz Signal-to-Noise Ratio: 70 dB Line-Out Level/Impedance: 2.0 V/20 kΩ load (full scale) Output impedance: 1 kΩ TUNER SECTION Frequency Range FM: 87.5 MHz to 108.0 MHz AM: (MW) 522 kHz to 1,620 kHz (LW) 144 kHz to 279 kHz [FM Tuner] Usable Sensitivity: 11.3 dBf (1.0 µV/75 Ω) 50 dB Quieting Sensitivity: 16.3 dBf (1.8 µV/75 Ω) Alternate Channel Selectivity (400 kHz): 65 dB Frequency Response: 40 Hz to 15,000 Hz Stereo Separation: 30 dB Capture Ratio: 1.5 dB [MW Tuner] Sensitivity: 20 µV Selectivity: 35 dB [LW Tuner] Sensitivity: 50 µV CD PLAYER SECTION Type: Compact disc player Signal Detection System: Non-contact optical pickup (semiconductor laser) Number of channels: 2 channels (stereo) Frequency Response: 5 Hz to 20,000 Hz Dynamic Range: 96 dB Signal-to-Noise Ratio: 98 dB Wow and Flutter: Less than measurable limit GENERAL Power Requirement Operating Voltage: DC 14.4 V (11 V to 16 V allowance) Allowable Operational Temperature: 0˚C to +40˚C Grounding System: Negative ground Dimensions (W × H × D) Installation Size: 182 mm × 52 mm × 150 mm Panel Size: 188 mm × 58 mm × 14 mm Mass: 1.3 kg (excluding accessories) Design and specifications subject to change without notice. EN43-45.KD-SX878R/S777R[E]/f 08/09/2000, 04:09 PM45
