Jvc KDS 785 Schematic

Extracted text from Jvc KDS 785 Schematic (Ocr-read)

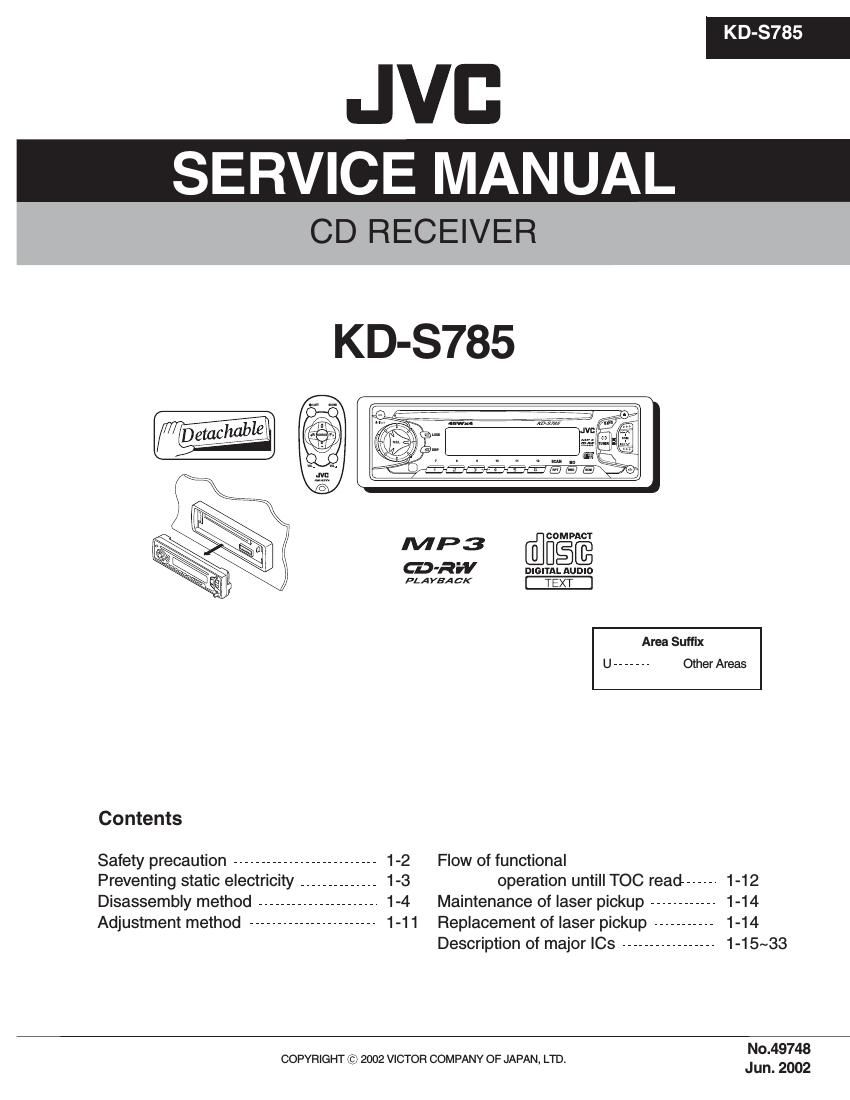

Page 1

KD-S785

JVI:

SERVICE MANUAL

CD RECEIVER

KD-S785

MP3 COMPACT

GJ'RW DIGITALAUDID

FLAYEACK

Area Suffix
U ------- OtherAreas
Contents
Safety precaution - 1-2 Flow of functional
Preventing static electricity .............. 1-3 operation untill TOC read ------ 1-12
Disassembly method - - 1-4 Maintenance of laser pickup ------------ 1-14
Adjustment method ----------------------- 1-11 Replacement of laser pickup ----------- 1-14
Description of major le ----------------- 1-15~33

No.49748

COPYRIGHT (c) 2002 VICTOR COMPANY OF JAPAN, LTD.
Jun. 2002

Page 2

KD-S785

Safety precaution

A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.

A CAUTION Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
