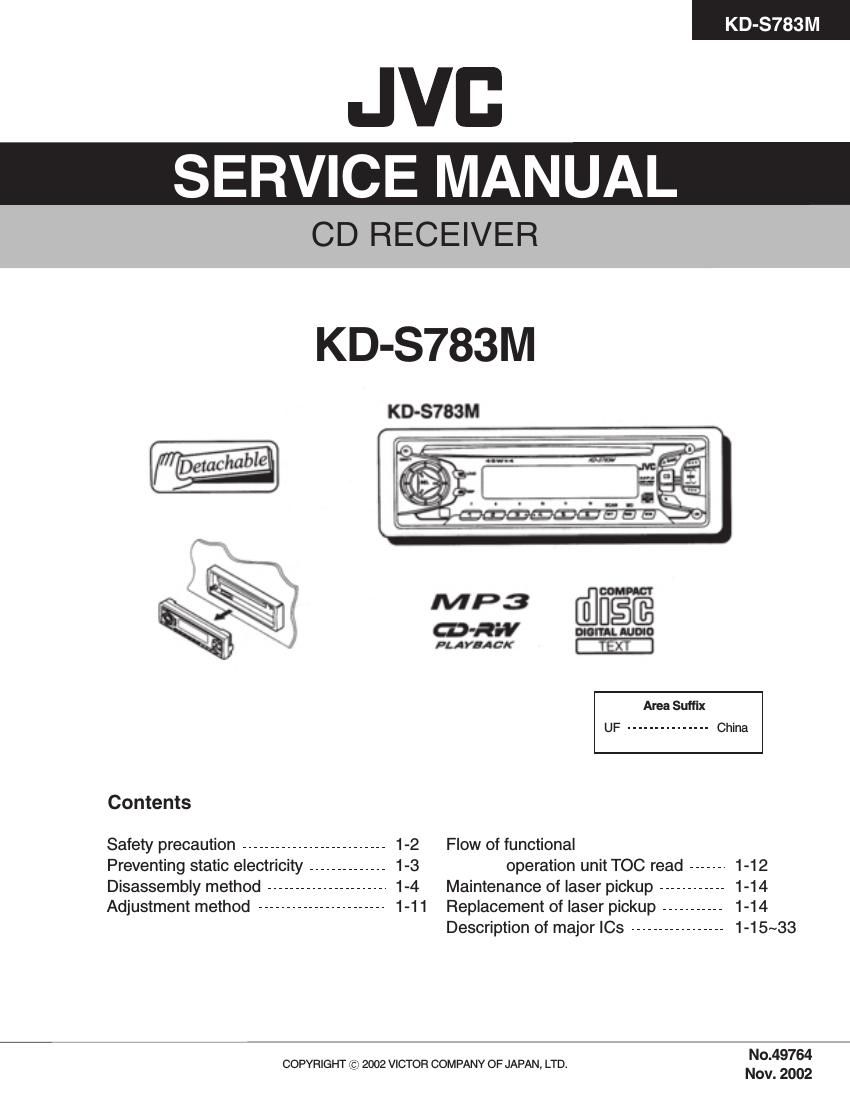

Page 1
KD-S783M
JVB
SERVICE MANUAL
CD RECEIVER
KD-S783M
KD-5783M
' i m
.- MP3 I] ng®
I .
W mom mo
PLAV'ACK
Area Suffix
UF --------------- China
Contents
Safety precaution - 1-2 Flow of functional
Preventing static electricity ....... 1-3 operation unit TOC read ------- 1-12
Disassembly method --------------------- 1-4 Maintenance of laser pickup ------------ 1-14
Adjustment method ----------------------- 1-11 Replacement of laser pickup ----------- 1-14
Description of major ICs ----------------- 1-15~33
No.49764
COPYRIGHT © 2002 VICTOR COMPANY OF JAPAN, LTD.
Nov. 2002
Page 2
KD-S783M
Safety precaution
1-2
A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
A CAUTION Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
