Jvc KDS 731 R Service Manual
This is the 51 pages manual for Jvc KDS 731 R Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KDS 731 R Service Manual (Ocr-read)
Page 1

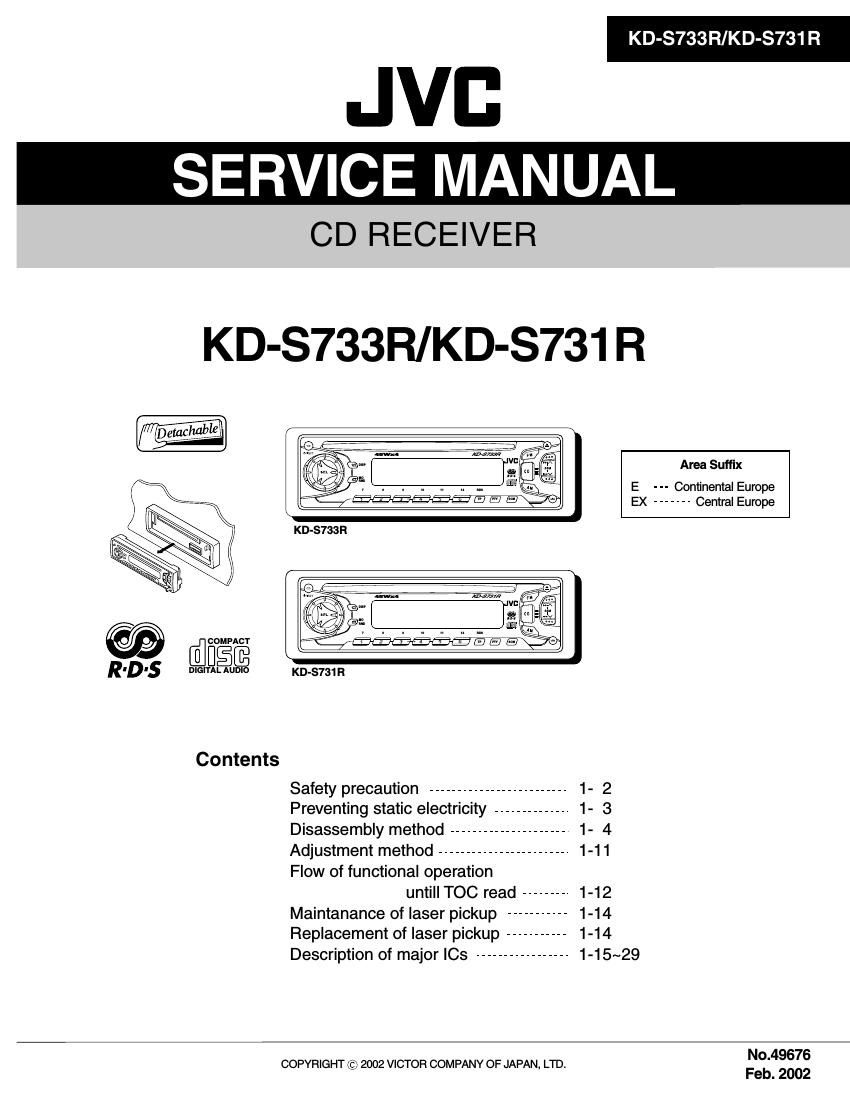

KD-S733R/KD-S731 R
JVB
SERVICE MANUAL
CD RECEIVER
KD-S733R/KD-S731 R
Area Suffix
E - - - Continental Europe
EX ------- Central Europe
COMFACY
RlDls DIGIQEJEE KD-S731R
Contents
Safety precaution ------------------------- 1- 2
Preventing static electricity -------------- 1- 3
Disassembly method --------------------- 1- 4
Adjustment method ------------------------ 1-11
Flow of functional operation
untill TOC read -------- 1-12
Maintanance of laser pickup ----------- 1-14
Replacement of laser pickup -- - 1-14
Description of major ICs ----------------- 1-15~29
No.49676
COPYRIGHT (2;) 2002 VICTOR COMPANY OF JAPAN, LTD.
Feb. 2002
Page 2
KD-S733R/KD-S731 R
Safety precaution
A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
A CAUTION Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
