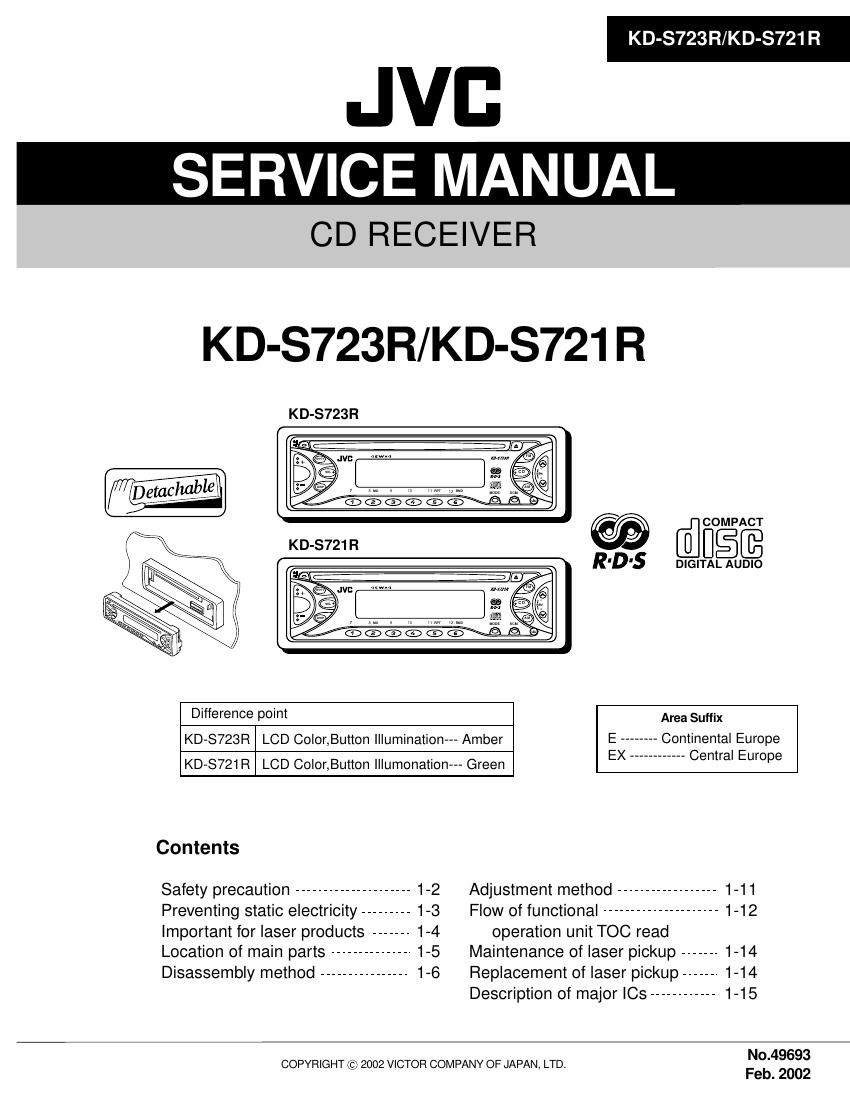

Page 1
KD-S723R/KD-S721 R
JVB
SERVICE MANUAL
CD RECEIVER
KD-S723R/KD-S721 R
KD-S723R
@ [flfigfi
DIGITAL AUDIO
Difference point Area Suffix
KD-S723R LCD Color,Button Illumination Amber E -------- Continental Europe
KD-S721R LCD Color,Button lllumonationm Green EX ____________ Central Europe
Contents
Safety precaution -------------- 1-2 Adjustment method ---------- 1-11
Preventing static electricity --------- 1-3 Flow of functional --------------------- 1-1 2
important for laser products ------- 1-4 operation unit TOC read
Location of main parts --------------- 1-5 Maintenance of laser pickup ------- 1-14
Disassembly method ---------------- 1-6 Replacement of laser pickup ------- 1»14
Description of major le ------------ 1-15
COPYRIGHT (2;) 2002 VICTOR COMPANY OF JAPAN, LTD. N04969:;
Feb. 2002
Page 2
KD-S723 R/KD-S72I R
Safety precaution
A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
A CAUTION Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
1-2
