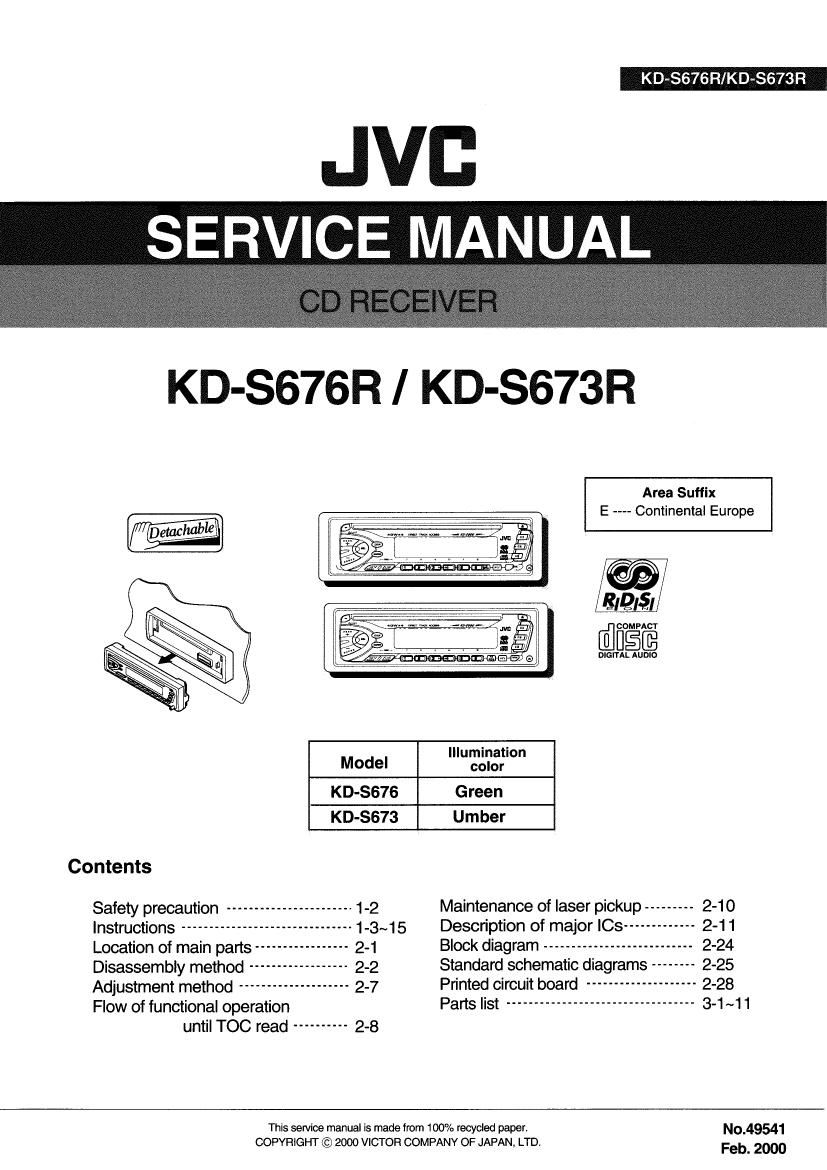

Page 1
KDr-5676R/KD-SG73R
JVI:
_ SERV'CE MANUAL
KD-SG76R/ KD-SG73R
Area Suffix
E ---- Continental Europe
I EIQISI/
COMPACT
DIGITAL AUDIO
Model lllurgéngrtion
KD-SS76 Green
KD-SG73 Umber
Contents
Safety precaution ----------------------- 1-2 Maintenance of laser pickup --------- 2-10
Instructions ----------------------------- 1-345 Description of major ICs ------------- 2-11
Location 01 main parts ----------------- 2-1 Block diagram --------------------------- 2-24
Disassembiy method ------------------ 2-2 Standard schematic diagrams -------- 2-25
Adjustment method -------------------- 2-7 Printed circuit board -------------- 2-28
Flow of functional operation Parts list ---------------------------------- 3-1~1 1
until TOC read ---------- 2-8
This sen/ice manual is made from 100% recycled paper. N°_49541
COPYRIGHT © 2000 VICTOR COMPANY OF JAPAN, LTD. Feb 2000
Page 2
_KD-se76R/KD-se73n 7 E
Safety precaution
A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore.
pay attention to such burrs in the case of preforming repair of this system.
A CAUTION Please use enough caution not to see the beam directly or touch it in case at an
adjustment or operation check.
