Jvc KDS 620 Service Manual
This is the 42 pages manual for Jvc KDS 620 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KDS 620 Service Manual (Ocr-read)

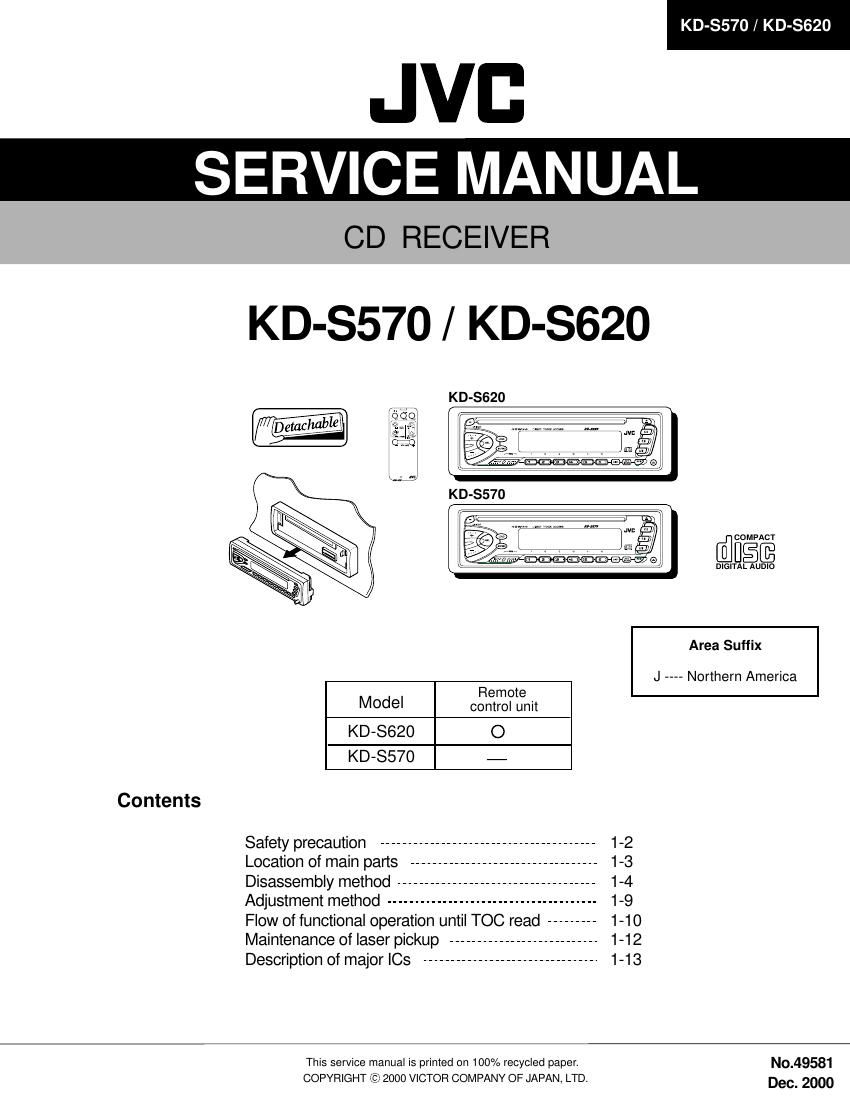

Page 1
KD-S570 / KD-SGZO
JVB
SERVICE MANUAL
CD RECEIVER
KD-5570 / KD-S620
KD-SSZO
Area Suffix
J Northern America
Remote
Model control unit
KD-8620 O
KD-8570 -
Contents
Safety precaution --------------------------------------- 1-2
Location of main parts -------------------------- 1-3
Disassembly method ----------------- 1-4
Adjustment method -------------------------------------- 1-9
Flow of functional operation until TOC read --------- 1-1 0
Maintenance of laser pickup --------------------------- 1-12
Description of major le -------------------------------- 1-13
This service manual is printed on 100% recycled paper. No.49581
COPYRIGHT © 2000 VICTOR COMPANY OF JAPAN, LTD. Dec 2000
Page 2
KD-8570/KD-8620
Safety precaution
A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
A CAUTION Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
1-2
