Jvc KDS 611 Service Manual
This is the 45 pages manual for Jvc KDS 611 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KDS 611 Service Manual (Ocr-read)
Page 1
JVI:

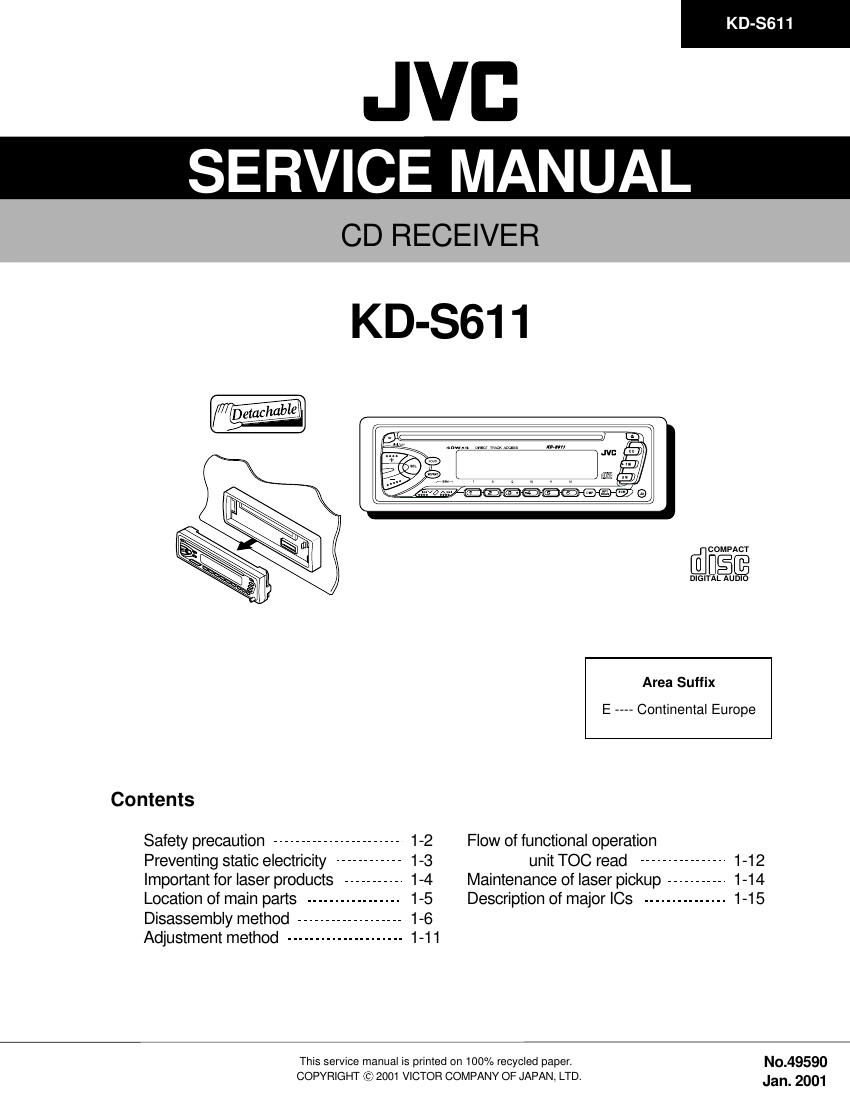

SERVICE MANUAL
CD RECEIVER
KD-S61 1
[flfigtfi
DIGITAL AUDIO
Area Suffix
E Continental Europe
Contents
Safety precaution ----------------------- 1-2 Flow of functional operation
Preventing static electricity ----- 1-3 unit TOC read --------- 1-1 2
Important for laser products ----- 1-4 Maintenance of laser pickup 1-1 4
Location of main parts --------------- 1-5 Description of major le --------------- 1-15
Disassembly method ----------- 1-6
Adjustment method --------------------- 1-1 1
This service manual is printed on 100% recycled paper. No_49590
COPYRIGHT (C7 2001 VICTOR COMPANY OF JAPAN, LTD.
Jan. 2001
Page 2
KD-861 1
Safety precaution
A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
A CAUTION Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
1-2
