Jvc KDS 587 Service Manual
This is the 49 pages manual for Jvc KDS 587 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KDS 587 Service Manual (Ocr-read)
Page 1

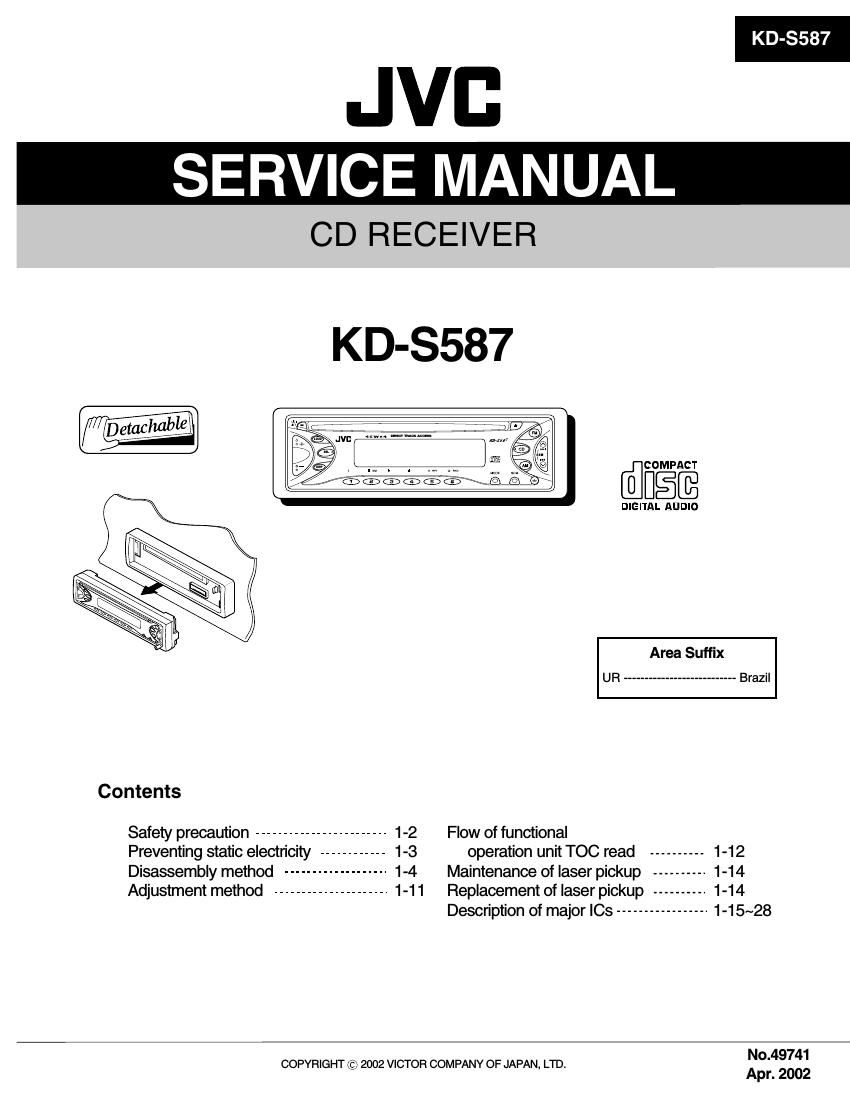

KD-3587
JVB
SERVICE MANUAL
CD RECEIVER
KD-S587
[flfigifi
DIGITAL AUDIO
Area Suffix
UR --------------------------- Brazil
Contents
Safety precaution ------------------------ 1-2 Flow of functional
Preventing static electricity ------------ 1-3 operation unit TOC read ---------- 1-12
Disassembly method ------------------- 1-4 Maintenance of laser pickup ---------- 1-14
Adjustment method --------------------- 1-11 Replacement of laser pickup ---------- 1-14
Description of major ICs ----------------- 1-15~28
No.49741
COPYRIGHT ('9; 2002 VICTOR COMPANY OF JAPAN, LTD.
Apr. 2002
Page 2
KD-8587
Safety precaution
A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
A CAUTION Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
