Jvc KDS 580 Service Manual

This is the 37 pages manual for Jvc KDS 580 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 37

Extracted text from Jvc KDS 580 Service Manual (Ocr-read)

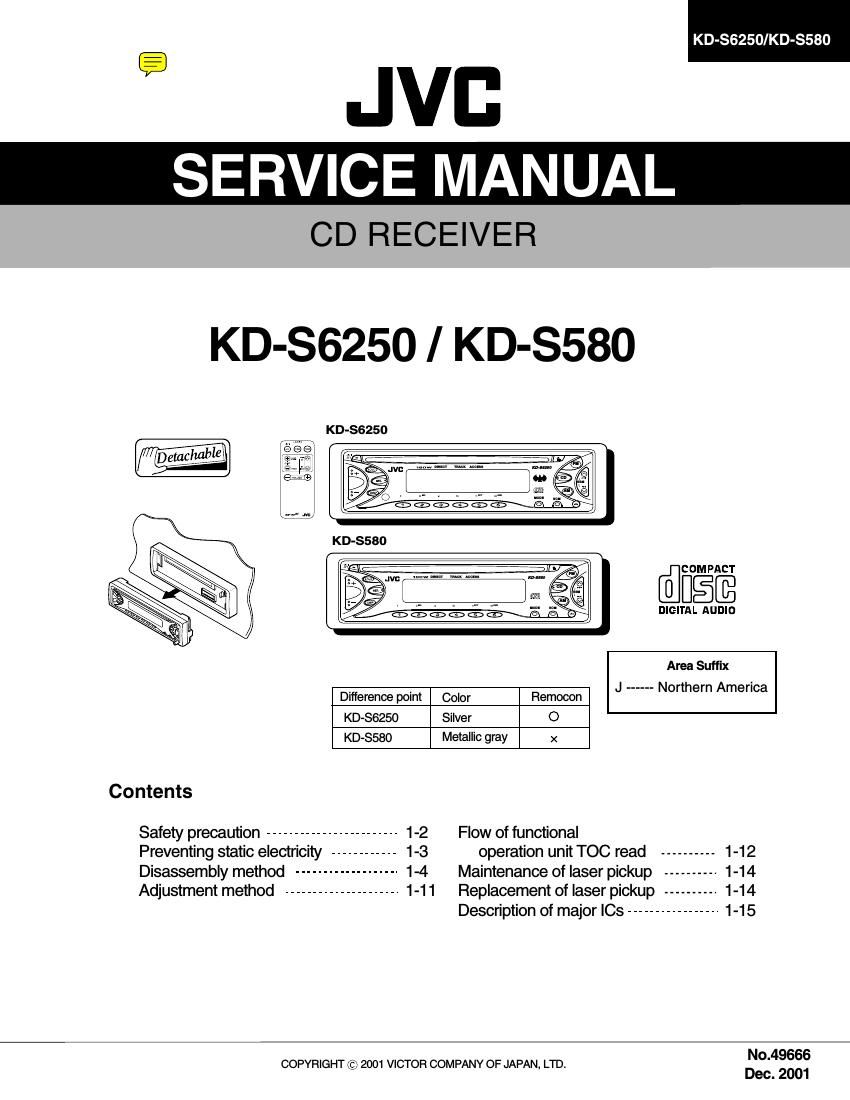

Page 1

CD RECEIVER

KD-86250/KD-S580

KD-86250/ KD-S580

KD-SGZSO

@ﬁgﬁ
DIGITAL AUDIO
Area Suffix
Difference point Color Remocon J ------ Northern America
KD-sszso Silver 0
KD-SS8O Metallic gray x
Contents
Safety precaution ------------------------ 1-2 Flow of functional
Preventing static electricity -- - 1-3 operation unit TOC read -------- 1-12
Disassembly method ---------- 1-4 Maintenance of laser pickup 1-14
Adjustment method --------------------- 1-11 Replacement of laser pickup 1-14
Description of major ICs --------------- 1-15
No.49666

Dec. 2001

Page 2

KD-86250/KD-8580

Disassembly method /
§$ \

./ \

I Removing the front panel assembly
(See Fig.1)

1. Press the eject button in the lower right part of the
front panel. Remove the front panel assembly from
the body.

Front panel assembly

Eject button

Fig.1

Tab a

l Removing the front chassis assembly
(See Fig.2 and 3)

- Prior to performing the following procedure, remove
the front panel assembly.

1. Release the four joint tabs a on both sides of the
front chassis assembly and remove the front chassis
assembly toward the front.

Front chassis assembly
Fig.2

Heat sink Tab a

II
/J

Tab a Front chassis
assembly

Fig.3
