Jvc KDS 577 Service Manual
This is the 42 pages manual for Jvc KDS 577 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KDS 577 Service Manual (Ocr-read)

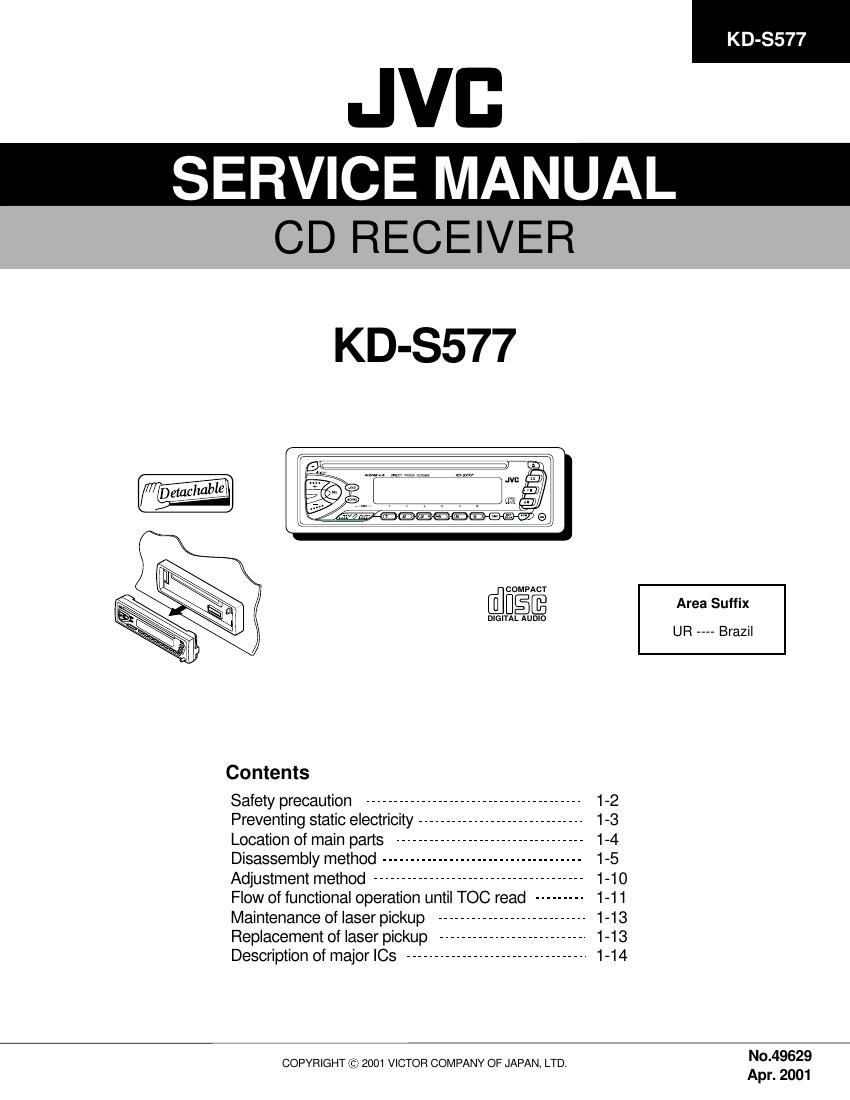

Page 1
KD-5577
JVB
SERVICE MANUAL
CD RECEIVER
KD-5577
COMPACT
[EDS Area Suffix
DIGITAL AUDIO
UR Brazil
Contents
Safety precaution ....................................... 1.2
Preventing static electricity ------ 1-3
Location of main parts ---------- 1_4
Disassembly method ............ 1_5
Adjustment method -------------------------------------- 1_ 10
Flow of functional operation until TOC read --------- 1- 11
Maintenance of laser pickup ........................... 1-13
Replacement of laser pickup -----
Description of major ICs ................................. 1-14
No.49629
COPYRIGHT © 2001 VICTOR COMPANY OF JAPAN, LTD.
Apr. 2001
Page 2
KD-8577
Safety precaution
A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
A CAUTION Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
1-2
