Jvc KDS 575 Service Manual
This is the 44 pages manual for Jvc KDS 575 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KDS 575 Service Manual (Ocr-read)
Page 1

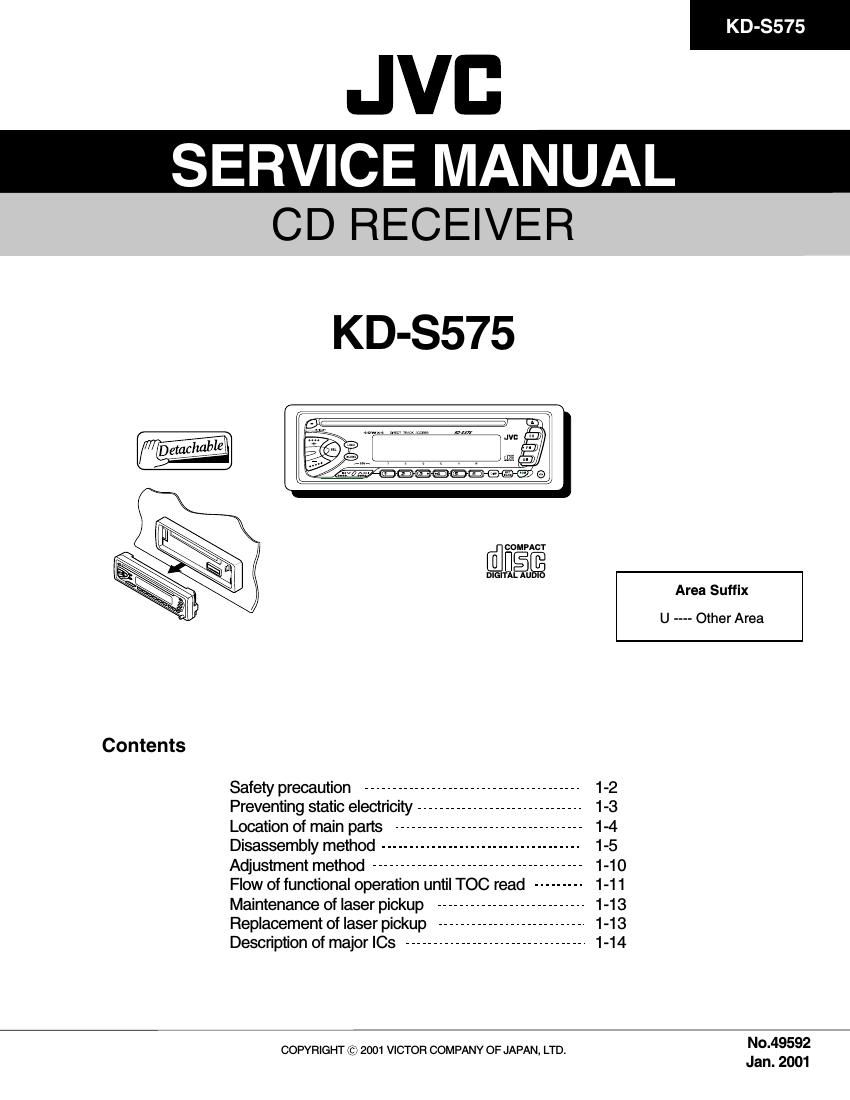

JVB
SERVICE MANUAL
CD RECEIVER
KD-S575
[flfiéfi
DIGITAL AUDIO
Area Suffix
U Other Area
Contents
Safety precaution --------------------------------------- 1-2
Preventing static electricity
Location of main parts ---------------------------------- 1-4
Disassembly method ------------------------------------ 1-5
Adjustment method -------------------------------------- 1-10
Flow of functional operation until TOC read --------- 1-11
Maintenance of laser pickup ---------------- 1-13
Replacement of laser pickup ------------- 1-13
Description of major ICs --------------------------------- 1-14
No.49592
Jan. 2001
COPYRIGHT © 2001 VICTOR COMPANY OF JAPAN, LTD.
Page 2
KD-8575
Safety precaution
A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
A CAUTION Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
1-2
Page 37
KD-8575
I Parts list (CD mechanism)
Block No. M2MM
A Item Parts number Parts name Q'iy Description Area
71 64180403T DET SWITCH 2 ESE22MH3
72 68150232T CONNECTOR 1 TKC-W26X-C1
79 30311105T SOPPORT PLATE 1
80 30311138T GR MT BLK(N) 1
81 30311109T LDG GEAR (2) 1
82 30311110T LDG GEAR (3) 1
84 30311112T LDG GEAR (5) 1
86 30311136T LDG ROLLER 2
88 30311118T L.P SPRING (L) 1
89 30311119T L.P SPRING (R) 1
90 30311123T SW PCB 1
91 30311124T SW ACTUATOR 1
92 30311129T LDG BELT 1
93 30311140T FRONT BRKT (J) 1
100 900620503T C B TAP SCREW 2 M2X5
101 902020401T C SCREW TS.G 5 M2X4
102 904320403T C B TAP SCREW 4 M2X4
103 900117223T SCREW 2 M1 .7X2.2
104 900917703T C TAP SCREW S3 1 M1 .7X7
105 9C0320201T C TAP SCREW S3 1 M2X2
106 904920013T C TAP SCREW $3 2 M2X10
107 904920603T C TAP SCREW 83 4 M2X6
108 9P0220031T TAMS SCREW 2 M2X3
109 900314203T C TAP SCREW 1 M1 .4X2
110 900420253 C TAP SCREW 1 M2X2.5
113 9W0330276 NW BLUE 2 2.9X5X0.3
116 9W0725030T LUMILAR W 1 2.3X9.8X0.25
117 9W0640030T WASHER 1 1.4X3.2X0.4
130 303105310T FEED MO ASSY 1
131 303105311T SPINDLE MO ASSY 1
132 303105312T FEED SCREW ASSY 1
133 303111301T LDG MOTOR ASSY 1
134 303111302T RDG RLR SFT ASY 1
135 303105502T T.T.BASE ASSY 1
3-6
