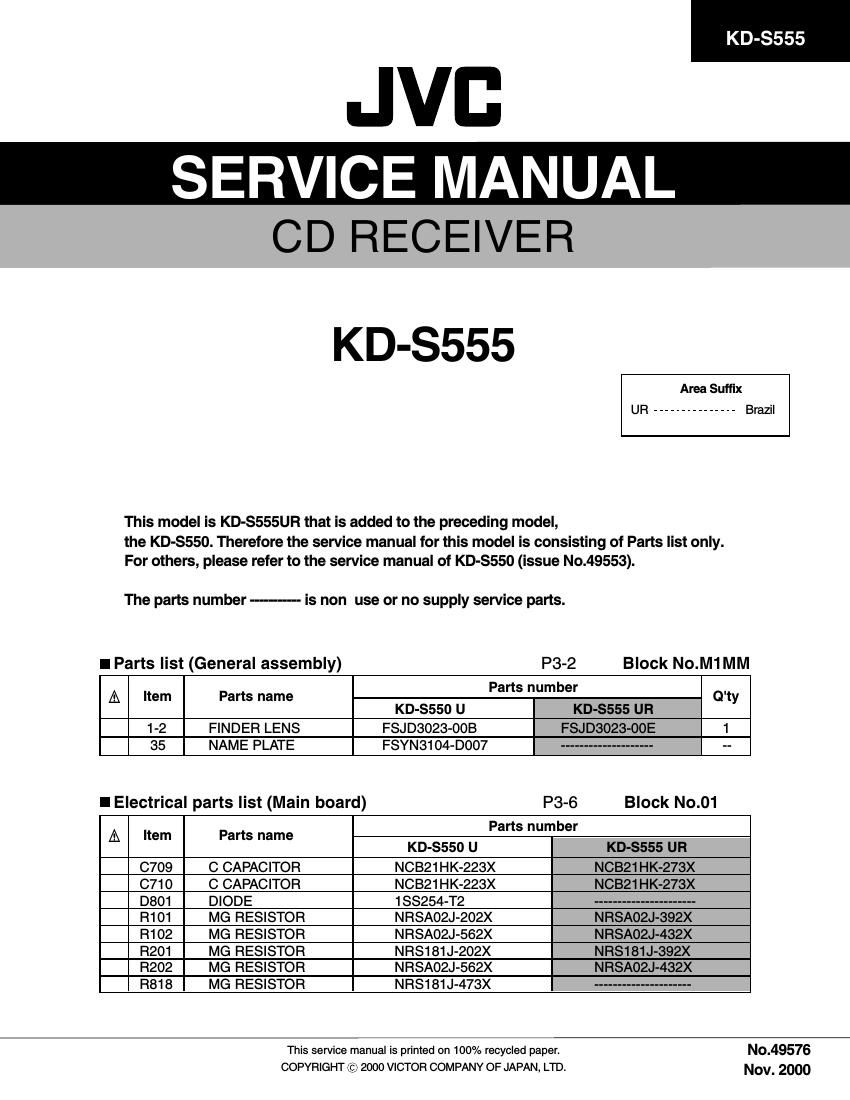

Page 1
This model is KD-3555UR that is added to the preceding model,
JVB
SERVICE MANUAL
CD RECEIVER
KD-S555
Area Suffix
UR ---------------
Brazil
the KD-SSSO. Therefore the service manual for this model is consisting of Parts list only.
For others, please refer to the service manual of KD-S550 (issue No.49553).
The parts number --------- is non use or no supply service parts.
l Parts list (General assembly) P3-2 Block No.M1 MM
A Item Parts name Parts number Q'ty
KD-SS5O U KD-8555 UR
1-2 FINDER LENS FSJD3023-OOB FSJD3023-00E 1
35 NAME PLATE FSYN3104-DOO7 -------------------- --
l Electrical parts list (Main board) P3-6 Block No.01
A Item Parts name Parts number
KD-SS50 U KD-S555 UR
C709 C CAPACITOR NCB21HK-223X NCBZ1HK-273X
C710 C CAPACITOR NCB21HK-223X NCB21HK-273X
D801 DIODE 1SS254-T2 ----------------------
R101 MG RESISTOR NRSA02J-202X NRSA02J-392X
R102 MG RESISTOR NRSA02J-562X NRSA02J-432X
R201 MG RESISTOR NRS181J-202X NRS181J-392X
R202 MG RESISTOR NRSA02J-562X NRSA02J-432X
R818 MG RESISTOR NRS181J-473X ---------------------
This service manual is printed on 100% recycled paper. No.49576
COPYRIGHT :16) 2000 VICTOR COMPANY OF JAPAN, LTD. Nov. 2000
