Jvc KDS 5 M Service Manual
This is the 45 pages manual for Jvc KDS 5 M Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KDS 5 M Service Manual (Ocr-read)

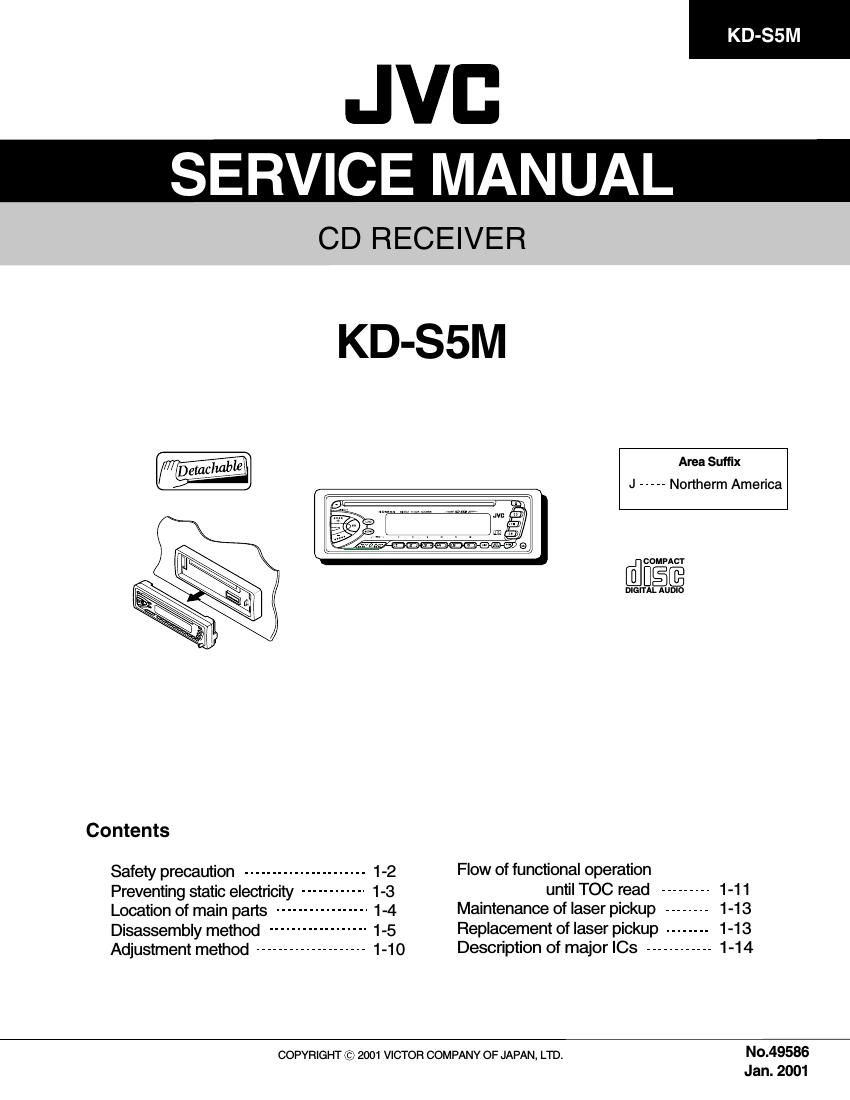

Page 1
JVB
SERVICE MANUAL
CD RECEIVER
KD-S5M
Area Suffix
J ----- Northerm America
flfiéfi
DIGITAL AUDIO
Contents
Safety precaution ---------------------- 1-2 Flow of functional operation
Preventing static electricity ------------ 1-3 until TOC read --------- 1-11
Location of main parts ----------------- 1-4 Maintenance of laser pickup -------- 1-13
Disassembly method 1-5 Replacement of laser pickup - 1-1 3
Adjustment method ----- 1-10 Description of major le ------------ 1-14
COPYRIGHT <9) 2001 VICTOR COMPANY OF JAPAN, LTD. No.49586
Jan. 2001
Page 2
KD-SSM
Safety precaution
A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
A CAUTION Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
