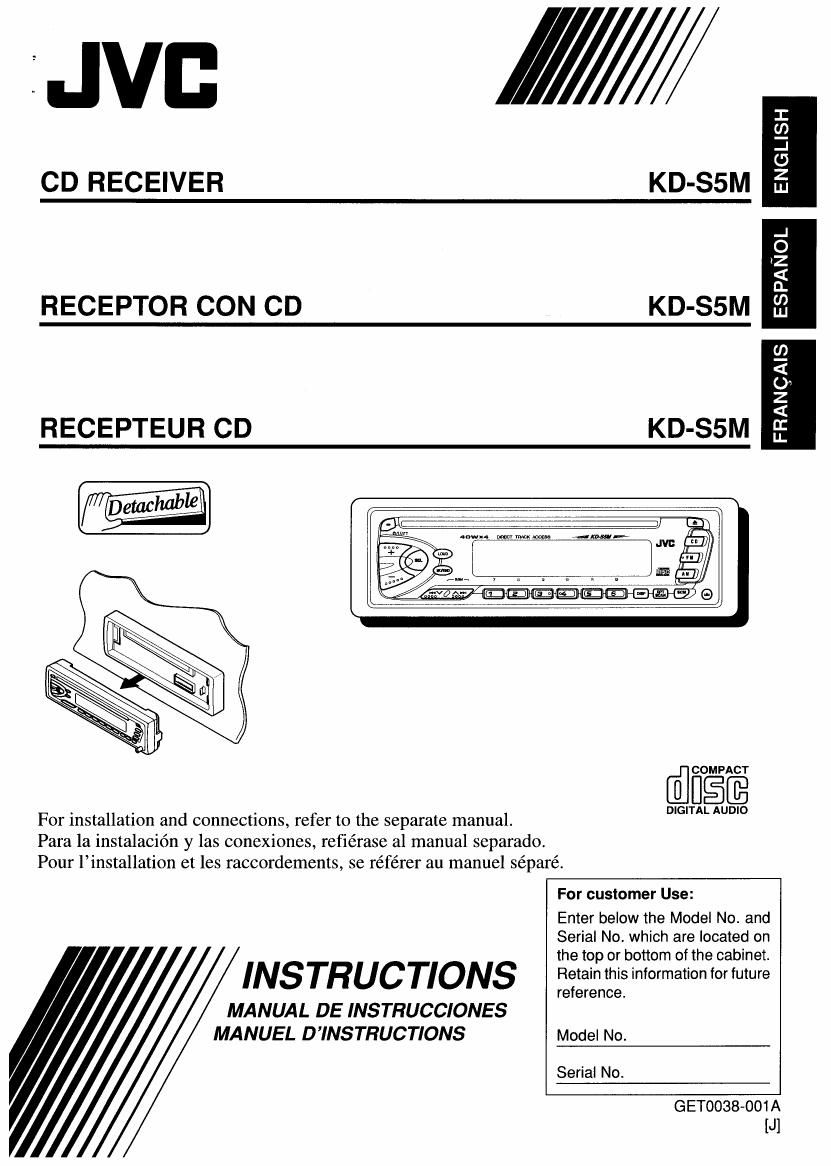

Page 1

:Jvr: ////////

i;
8
CD RECEIVER KD-S5M E
3'
E
RECEPTOR CON CD KD-S5M {I}
L.
<
:2?
RECEPTEUR CD KD-SSM E

Detachab I

[filfiélfi

DIGITAL AUDIO

For installation and connections, refer to the separate manual.
Para 1a instalacién y las conexiones, refiérase a] manual separado.
Pour linstallation et les raccordements, se référer au manuel séparé.

For customer Use:

Enter below the Model No. and
Serial No. which are located on

the top or bottom of the cabinet.
INSTRUCTIONS Retain this information for future
reference.
MANUAL DE INS TRUCCIONES
MANUEL DINSTRUCTIONS Model No.
Serial No.
GET0038~001 A
[J]

Page 2

ENGUSH'

INFORMATION (For USA)

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connectthe equipment into an outlet on a circuit differentfrom that to which the receiver
is connected.

- Consult the dealer or an experienced radiofl' V technician for help.

IMPORTANT FOR LASER PRODUCTS

Precautions:

1. CLASS 1 LASER PRODUCT

2. DANGER: Invisible laser radiation when open and interlock failed or defeated. Avoid direct
exposure to beam.

3. CAUTION: Do not open the top cover. There are no user-serviceable parts inside. Leave
all servicing to qualified service personnel.

4. CAUTION: This CD player uses invisible laser radiation, however, is equipped with safety
switches to prevent radiation emission when unloading CDs. It is dangerous to defeat the
safety switches.

5. CAUTION: Use of controls, adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.

HOW to reset your unIt o/i/ATr

Press and hold both the SEL (Select) and or IIATT (Standby/WATT)
(Standby/On/ATT) buttons at the same time for

several seconds.

This will reset the built-in microcomputer.

NOTES: Your preset adjustments - such as preset

channels or sound adjustments - will also be 1 _
erased.
If a CD is in the unit, it will eject when you reset
the unit. Pay attention not to drop the CD. SEL (Select)
BEFORE USE
* For safety... *Temperature inside the can...

' Do not raise the volume level too much, as this If you have parked the car for a long time in hot
will block outside sounds, making driving or cold weather, wait until the temperature in the
dangerous. car becomes normal before operating the unit.

- Stop the car before performing any complicated
operations.

2

Page 9

Other convenient tuner functions l

MO/RND

SEL

O

+/_ A m RPT/SCAN
K4 v

Scanning broadcast stations

When you press RPT/SCAN while listening to the radio, station scanning starts. Each time a
broadcast is tuned in, scanning stops for about 5 seconds (tuned trequency number flashes
on the display), and you can check what program is now being broadcasted.

If you want to listen to that program, press the same button again to stop scanning.

Selecting FM reception sound

When an FM stereo broadcast is hard to receive:

Press MO/RND (Mono/Random) while listening to an FM stereo broadcast. The sound you
hear becomes monaural but reception will be improved.

@997 giant? ..

Lights up when receiving an FM broadcast in stereo.
To restore the stereo effect, press the same button again.

~

Changing the AM/FM channel intervals
When using this unit in an area other than North or South America:
When this unit is shipped from the factory, the channel intervals are set to 10 kHz for AM and
200 kHz for FM.You can change the channel intervals by following the procedure below.
1 Press SEL (select) for more than 2 seconds.
CLOCK H, CLOCK M, SCM LINK, LEVEL" or AREA" appears on the display.
2 If AREA" does not appear, press A m or K4 v until it appears.
3 Press +.
AREA EU" appears and the channel intervals are set to 9 kHz for AM and 50 kHz (for
manual tuning) / 100 kHz (for searching) for FM.

To reset to the factory setting, follow the above step 1 and 2, then press - in step 3
(AREA US" appears on the display).

AREA EU: Select this when used in an area other than North and South America.

AREA US: Select this when used in North or South America.

ENGLISH
