Jvc KDS 1501 Schematic
This is the 22 pages manual for Jvc KDS 1501 Schematic.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KDS 1501 Schematic (Ocr-read)

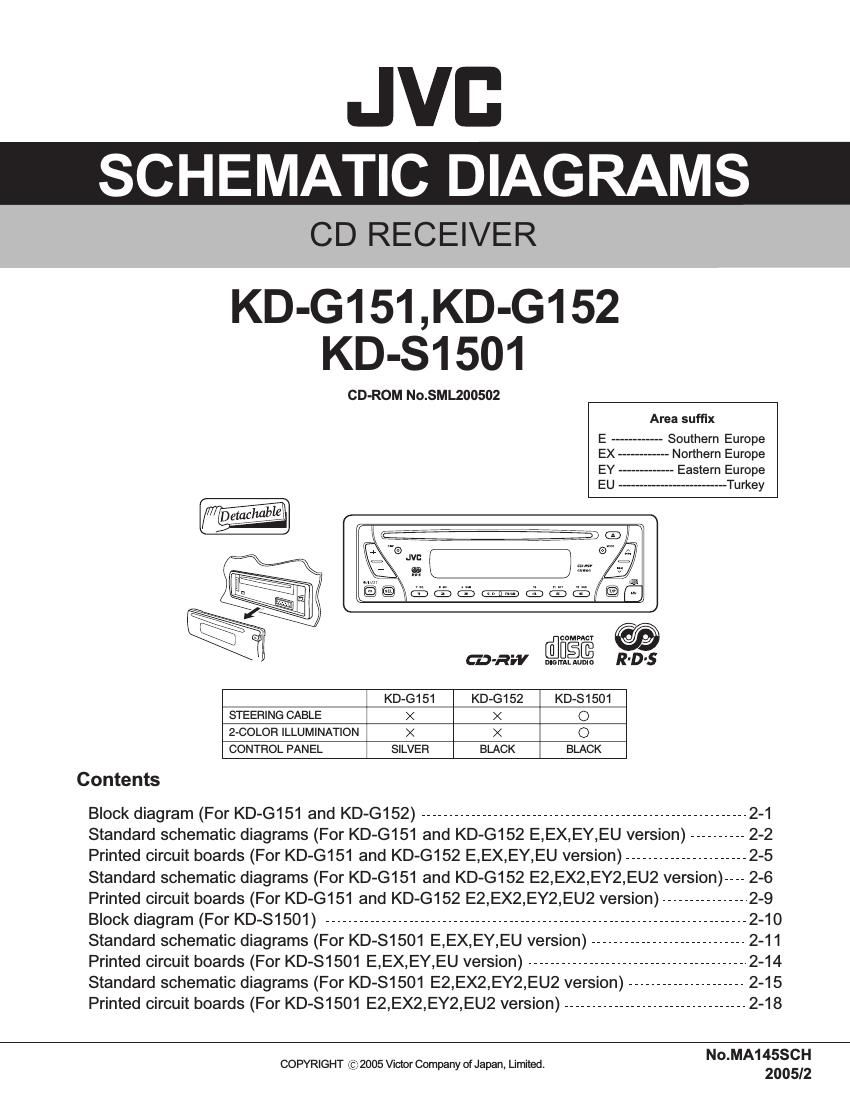

Page 1
JVB
SCHEMATIC DIAGRAMS
CD RECEIVER
KD-G151,KD-G152
KD-S1501
CD-ROM No.SML200502
Area suffix
E ..-- Southern Europe
EX Northern Europe
EY Eastern Europe
EU --- ---------Turkey
aa-Rw Egg R-D'S
KD-G151 KD-G152 KD-S1501
STEERING CABLE X X 0
2-COLOR ILLUMINATION X X O
CONTROL PANEL SILVER BLACK BLACK
Contents
Block diagram (For KD-G151 and KD-G152) ........................................................... 2-1
Standard schematic diagrams (For KD-G151 and KD-G152 E,EX,EY,EU version) -------- 2-2
Printed circuit boards (For KD-G151 and KD-G152 E,EX,EY,EU version) ...................... 2-5
Standard schematic diagrams (For KD-G151 and KD-G152 E2,EX2,EY2,EU2 version)---- 2-6
Printed circuit boards (For KD-G151 and KD-G152 E2,EX2,EY2,EU2 version) ................ 2-9
Block diagram (For KD-S1501) ............................................................................ 2-10
Standard schematic diagrams (For KD-S1501 E,EX,EY,EU version) ----- 2-11
Printed circuit boards (For KD-S1501 E,EX,EY,EU version) ....................................... 2-14
Standard schematic diagrams (For KD-S1501 E2,EX2,EY2,EU2 version) --------------------- 2-15
Printed circuit boards (For KD-S1501 E2,EX2,EY2,EU2 version) ................................. 2-18
No.MA1453CH
COPYRIGHT (CE 2005 Victor Company of Japan, Limited.
2005/2
Page 2
Safety precaution
A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
A CAUTION Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
