Jvc KDR 705 EU Service Manual

This is the 53 pages manual for Jvc KDR 705 EU Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 53
Jvc KDR 705 EU Service Manual

Extracted text from Jvc KDR 705 EU Service Manual (Ocr-read)

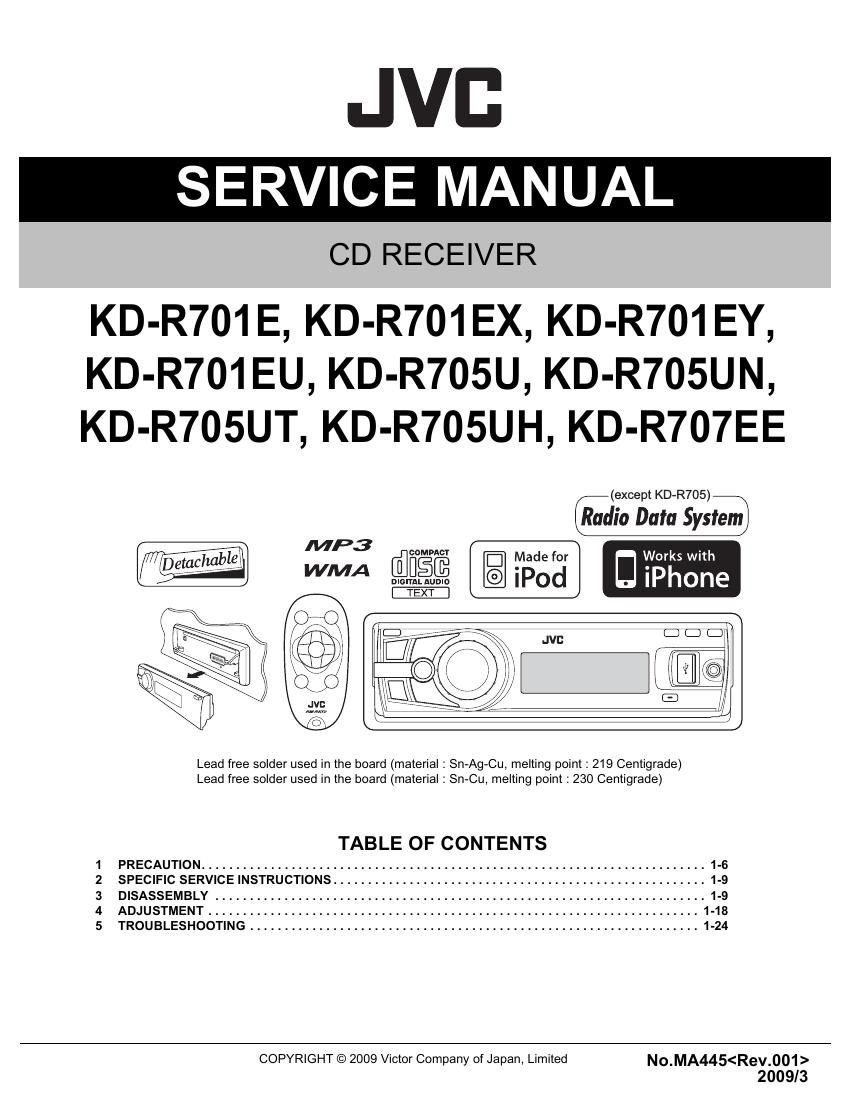

Page 1

JVB
SERVICE MANUAL

CD RECEIVER

KD-R701 E, KD-R701 EX, KD-R701EY,
KD-R701EU, KD-R705U, KD-R705UN,
KD-R705UT, KD-R705UH, KD-R707EE

cept KD R705)
Radio Data System
w I ©iPod DiPhone

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade)

TAB LE OF CONTENTS

1 PRECAUTION ......................................................................... 1-6
2 SPECIFIC SERVICE INSTRUCTIONS ...................................................... 1-9
3 DISASSEMBLY ....................................................................... 1-9
4 ADJUSTMENT ....................................................................... 1-18
5 TROUBLESHOOTING ................................................................. 1-24
COPYRIGHT © 2009 Victor Company of Japan, Limited N0.MA445

2009/3
