Jvc KDMX 2800 R Service Manual
This is the 16 pages manual for Jvc KDMX 2800 R Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KDMX 2800 R Service Manual (Ocr-read)

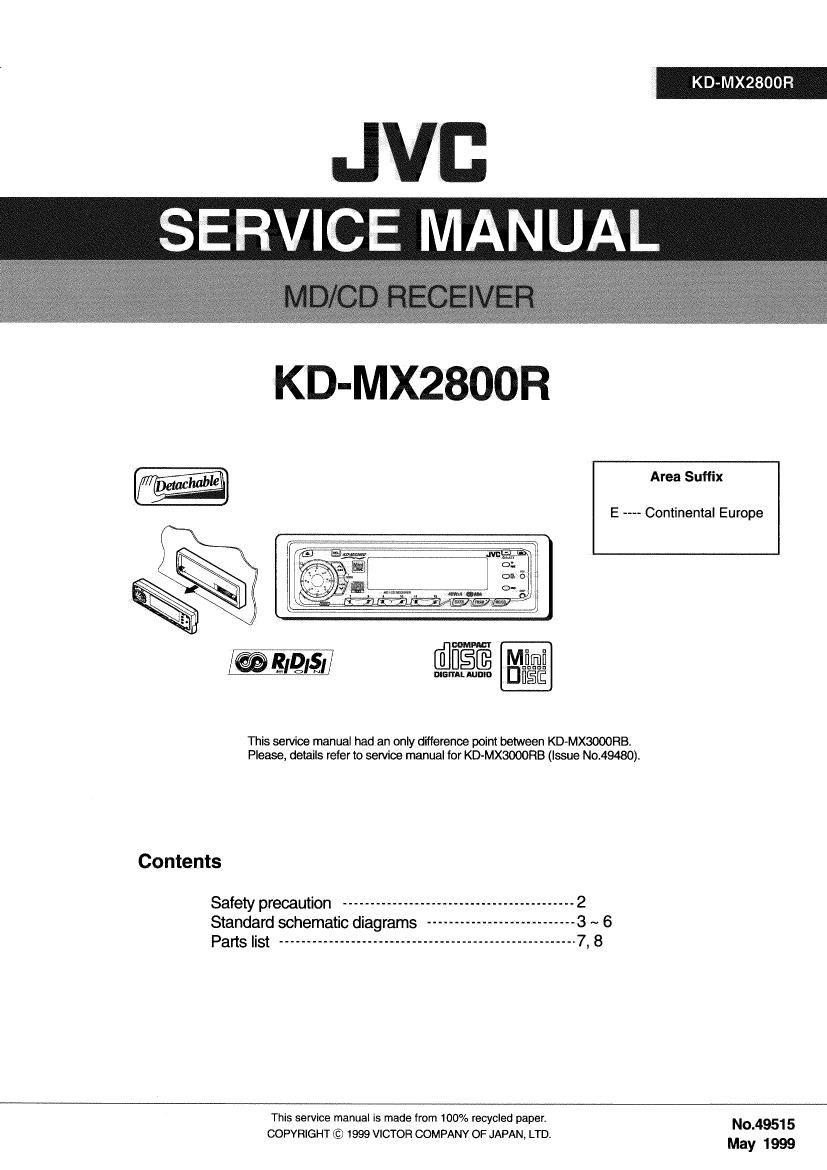

Page 1
KD-MX2800R
Area Suffix
E ---- Continental Europe
DIGITAL DID DEE
This service manual had an only difference point between KD-MXSOOOFlB.
Please, details refer to service manual for KD-MXSOOORB (Issue No.49480).
Contents
Safety precaution ------------------------------------------ 2
Standard schematic diagrams --------------------------- 3 ~ 6
Parts list ------------------------------------------------------ 7, 8
This service manual is made from 100% recycled paper N 0 49515
COPYRIGHT © 1999 VICTOR COMPANY OF JAPAN, LTD '
May 1 999
Page 2
KD-MX2800R
Safety precaution
A CAUTION Buns formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
A cAunoN Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
