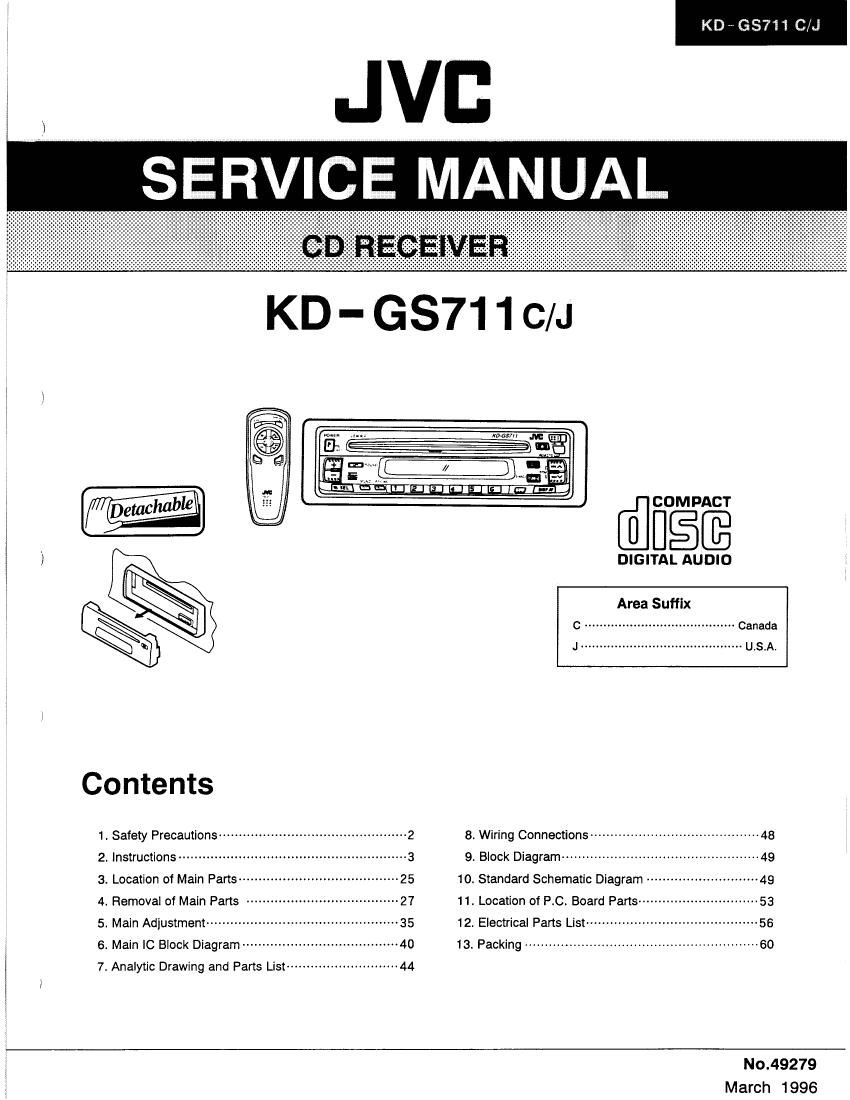

Jvc KDGS 711 Service Manual

Page 1

Kt) GS? Chi

hablg COMPACT
) DIGITAL AUDIO
Area Suffix
\ Canada
\ m
i
1, Safety Precautions ----------------------------------------------- 2 8 Wiring Connections ---------------------------------------- 48
2 Instructions ......................................................... 3 9. Block Diagram ------------------------------------------------ 49
3, Location of Main Parts ------------------------------------- 25 10. Standard Schematic Diagram ---------------------------- 49
4. Removai of Main Pans ----------------- 27 11. Location of RC. Board Parts ------------- 53
5. Main Adjustment ----------------------------- 35 12 Electrical Parts List ------------------------- 56
6. Main IC Block Diagram ....................................... 4o 13. Packing .......................................................... 60
i 7 Analytic Drawing and Parts List ---------------------------- 44
E i
i
No.49279

March 1996

Page 2

KD - GS711 ON

1. Safety Precautions

IMPORTANT FOR LASER
PRODUCTS (For U.S.A. only)
Precautions

1.
2.

CLASS 1 LASER PRODUCT

DANGER: Invisible laser radiation when open
and interlock failed or defeated. Avoid direct
exposure to beam.

. CAUTION: Do not open the top cover. There

are no user~serviceable pans inside, Leave
all servicing to qualified service personnel.

. CAUTION: This CD player uses invisible laser

radiation, however. is equrpped with salety
switches to prevent radiation emission when
unloading CDs, It is dangerous to defeat the
safety switches.

. CAUTION: Use of controls, adjustments or

performance of procedures other than those
specified herein may result in hazardous
radiation exposure.

Identification And Certification Labels

Us JVC CORP. 41 SLATER DRIVE
ELMWOQD PARK. rm. 07407
MANUFACTURED AT m

manuiac
MANUFA URED

Notes:

'1 The date of manufacture.

'2 The ID code ol manufacturing plant.
'3 Marking of country origin.

Bottom panel at the main unit
E

E

NAME/RATING PLATE

A CAUTION

Burrs formed during molding may be left over on some parts of the chassis.
Therefore, pay attention to such burrs in the case of preforming repair of this

system.

2 (No. 49279)
