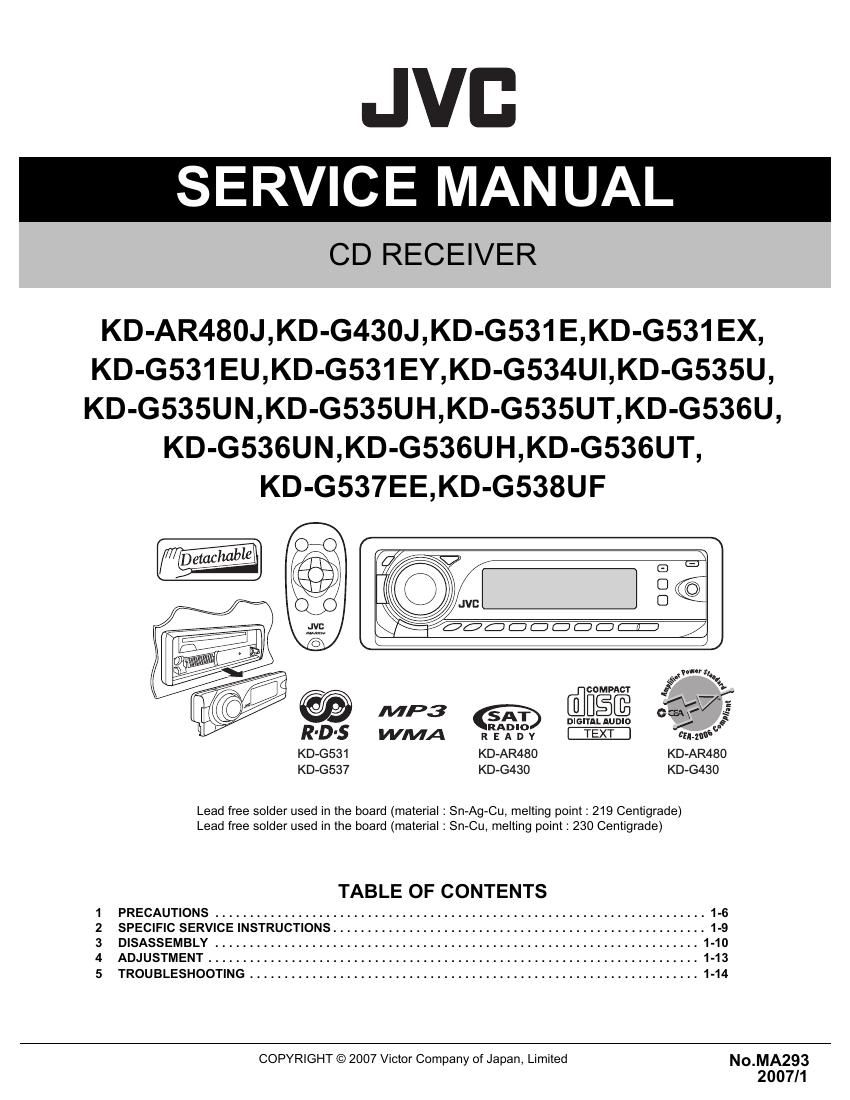

Jvc KDG 531 EY Service Manual
This is the 53 pages manual for Jvc KDG 531 EY Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KDG 531 EY Service Manual (Ocr-read)
Page 2
SPECIFICATION
KD-AR480IKD-G430
AUDIO AMPLIFIER SECTION
Power Output
20 W RMS x 4 Channels at 4 Q and [< or =]1% THD+N
Signal-to-Noise Ratio
80 dBA (reference: 1 W into 4 Q)
Load Impedance
4 Q (4 Q to 8 Q allowance)
Tone Control Range Bass/ Mid-range] Treble
:12 dB at 60 Hz/1 kHz/ 7.5 kHz
Frequency Response
40 Hz to 20 000 HZ
Line-Out Level/Impedance KD-AR480
4.0V/20 kQ load (full scale)
KD-G430
2.5 V/20 k0 load (full scale)
Subwoofer-Out Level/Impedance
2.5 V /20 k0 load (full scale)
Output Impedance
1k!)
Other Terminal
CD changer, AUX (auxiliary) inputjack, Steering wheel remote
input (only for KD-AR480)
TUNER SECTION
Frequency Range FM 87.5 MHzto 107.9 MHZ (with channel interval set to 100 kHz or
200 kHz)
87.5 MHz to 108.0 MHz (with channel interval set to 50 kHz)
AM 530 kHz to 1 710 kHz (with channel interval set to 10 kHz)
531 kHz to 1 602 kHz (with channel interval set to 9 kHz)
FM Tuner Usable Sensitivity 11.3 dBf (1.0 pV/75 Q)
50 dB Quieting Sensitivity 16.3 dBf(1.8 pV/75 0)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 35 dB
AM Tuner Sensitivity/Selectivity 20 uV/35 dB
CD PLAYER SECTION
Type Compact disc player
Signal Detection System
Non-contact optical pickup (semiconductor laser)
Number of Channels
2 channels (stereo)
Frequency Response
5 Hz to 20 000 HZ
Dynamic Range
96 dB
Signal-to-Noise Ratio
98 dB
Wow and Flutter
Less than measurable limit
MP3 Decoding Format: (MPEG1/2 Audio Layer 3)
Max. Bit Rate: 320 kbps
WMA (Windows Media® Audio) Decoding Format
Max. Bit Rate: 192 kbps
GENERAL
Power Requirement IOperating Voltage
DC 14.4 V (11 V to 16 V allowance)
Grounding System
Negative ground
Allowable Operating Temperature
0°C to + 40°C (32°F to 104°F)
Dimensions (W x H X D) Installation Size 182 mm X 52 mm X 150 mm
(approx) (7-3/16" >< 2-1/16 >< 5-15/16")
Panel Size 188 mm X 58 mm X 12 mm
(7-7/16" >< 2-5/16 X 1/2")
Mass 14 kg (3.1 lbs) (excluding accessories)
Design and specifications are subject to change without notice.
1-2 (No.MA293)
