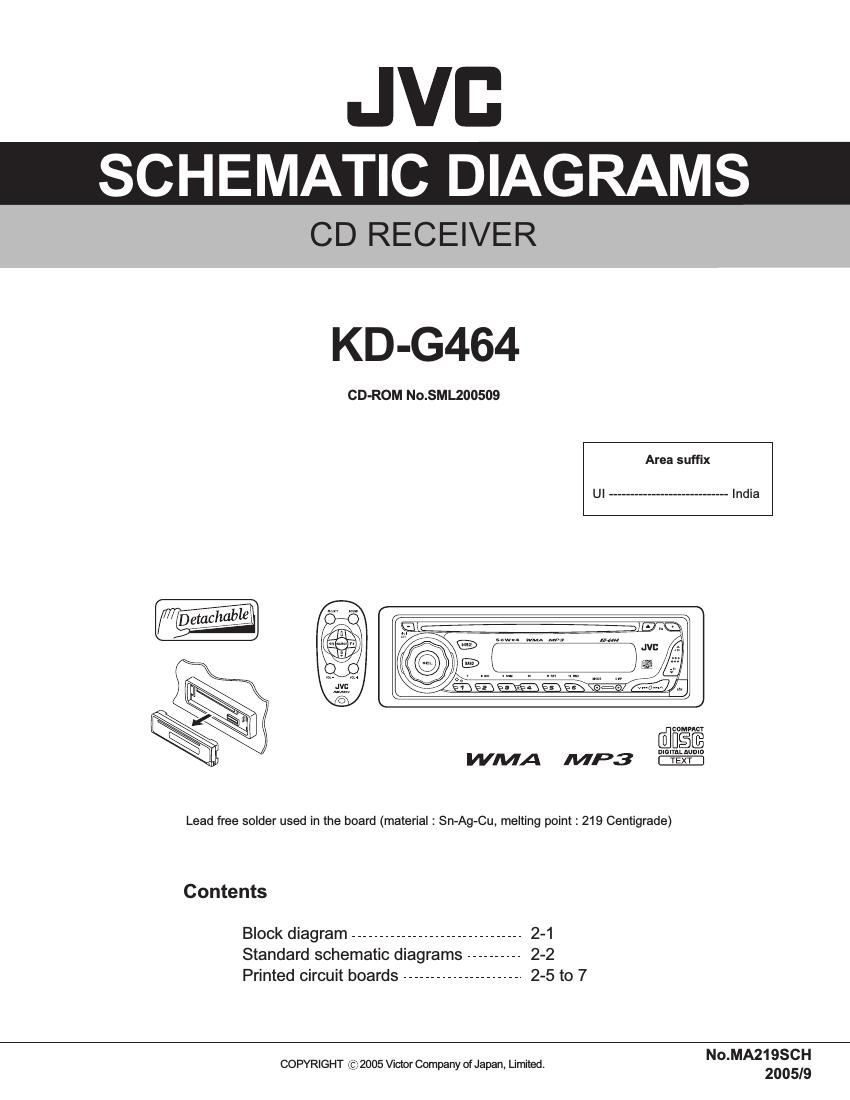

Page 1
JVB
SCHEMATIC DIAGRAMS
CD RECEIVER
KD-G464
CD-ROM No.SML200509
Area suffix
UI ............................ India
cnmncr
DIGIanunm
WMA MP3
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Contents
Block diagram ............................... 2-1
Standard schematic diagrams - 2-2
Printed Circuit boards ..................... 2-5 to 7
No.MA219$CH
COPYRIGHT (9 2005 Victor Company of Japan, Limited.
2005/9
Page 2
Safety precaution
A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
A CAUTION Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
