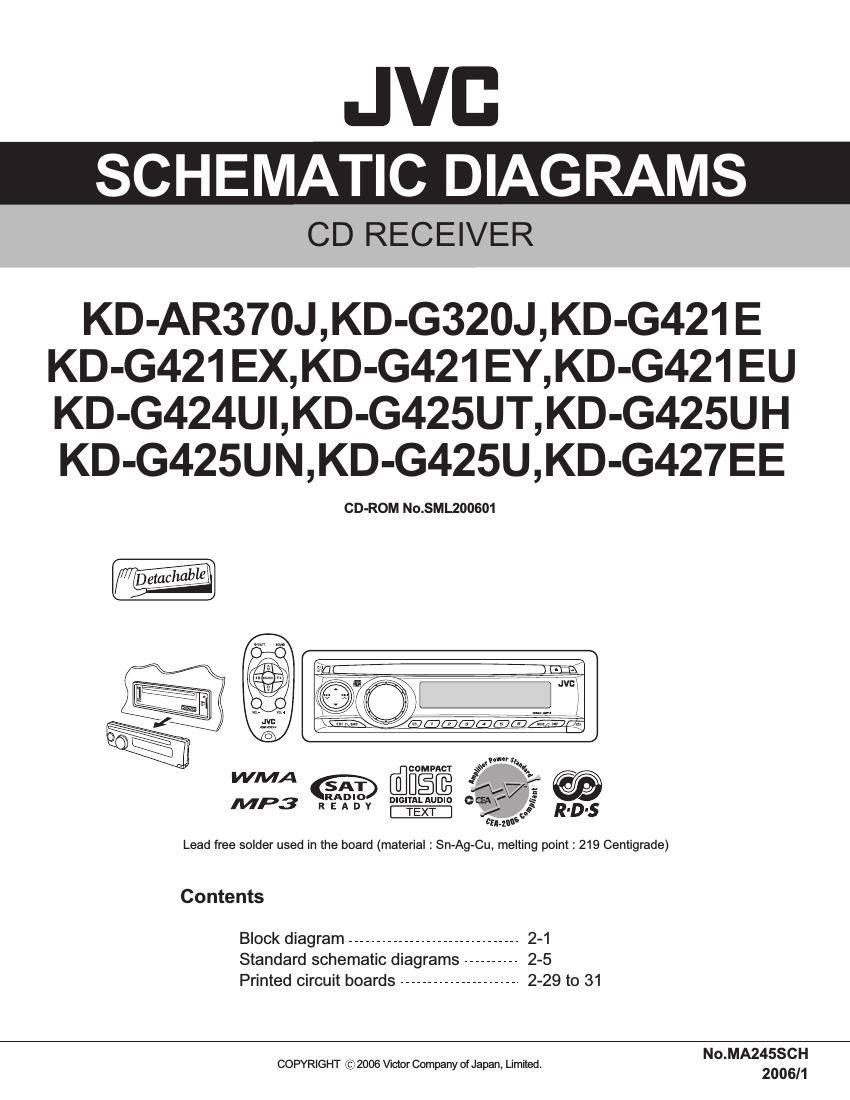

Jvc KDG 421 EU Schematic

Page 2

Safety precaution

& CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.

A CAUTION Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.

DIFFERENT POINT

KD-AR370 KD-GSZO KD-G421 KD-G424 KD-G425 KD-G427
YES YES NO NO NO NO
YES YES NO NO NO NO
NO NO YES NO NO YES
R'D'S
REMOTE
CONTROLLER YES YES NO YES YES YES
