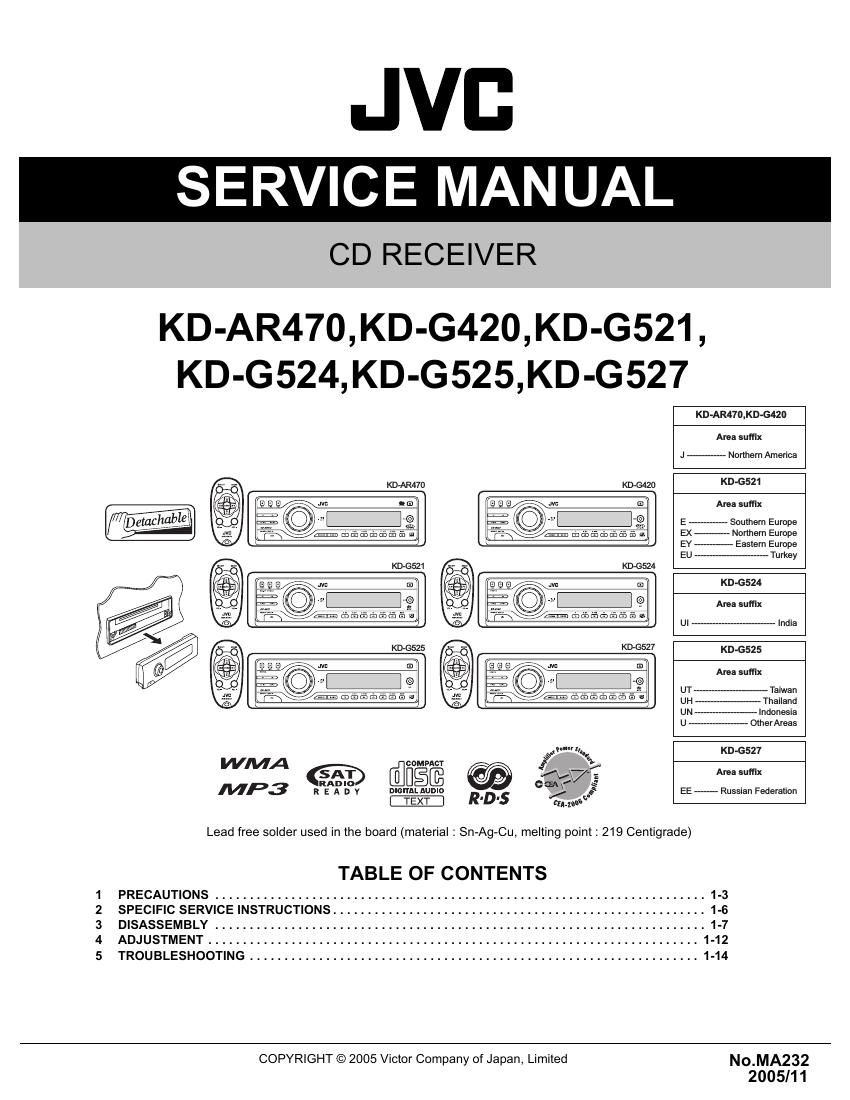

Jvc KDG 420 Service Manual
This is the 225 pages manual for Jvc KDG 420 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KDG 420 Service Manual (Ocr-read)
Page 1
1-2 (No.MA232) SPECIFICATION - Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. -Design and specifications are subject to change without notice.AUDIO AMPLIFIER SECTION Power Output KD-AR470, KD-G420 20 W RMS × 4 Channels at 4 Ω and [< or =] 1% THD+N Maximum Power Output KD-G521, KD-G524, KD-G525, KD-G527Front 50 W per channel Rear 50 W per channel Continuous Power Output (RMS)KD-G521, KD-G524, KD-G525, KD-G527Front 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion. Rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion. Signal to Noise Ratio KD-AR470, KD-G420 80 dBA (reference: 1 W into 4 Ω) KD-G521, KD-G524, KD-G525, KD-G527 70 dB Load Impedance 4 Ω (4 Ω to 8 Ω allowance) Tone Control Range Bass ±10 dB at 100 Hz Treble ±10 dB at 10 kHz Frequency Response 40 Hz to 20 000 Hz Line-Out Level/Impedance KD-AR470 4.0 V/20 k Ω load (full scale) KD-G420, KD-G521, KD-G524, KD-G525, KD-G5272.5 V/20 k Ω load (full scale) Output Impedance 1 k Ω Other Terminals CD changer, Steering wheel remote input ( Only KD-G521 ), AUX (auxiliary) input jack TUNER SECTION Frequency Range FM ( KD-AR470, KD-G420 ) 87.5 MHz to 107.9 MHz (with channel interval set to 100 kHz or 200 kHz) 87.5 MHz to 108.0 MHz (with channel interval set to 50 kHz) FM ( KD-G521, KD-G524, KD-G525 ) 87.5 MHz to 108.0 MHz FM1/FM2 ( KD-G527 ) 87.5 MHz to 108.0 MHz FM3 ( KD-G527 ) 65.00 MHz to 74.00 MHz AM ( KD-AR470, KD-G420 ) 530 kHz to 1 710 kHz (with channel interval set to 10 kHz) 531 kHz to 1 602 kHz (with channel interval set to 9 kHz) AM ( KD-G521, KD-G527 ) (MW) 522 kHz to 1 620 kHz (LW) 144 kHz to 279 kHz AM ( KD-G524, KD-G525 ) 531 kHz to 1 602 kHz FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω) 50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω) Alternate Channel Selectivity (400 kHz) 65 dB Frequency Response 40 Hz to 15 000 Hz Stereo Separation 35 dB Capture Ratio 1.5 dB AM Tuner KD-AR470, KD-G420, KD-G524, KD-G525Sensitivity 20 µV Selectivity 35 dB MW Tuner KD-G521, KD-G527 Sensitivity 20 µV Selectivity 35 dB LW Tuner KD-G521, KD-G527 Sensitivity 50 µV CD PLAYER SECTION Type Compact disc player Signal Detection System Non-contact optical pickup (semiconductor laser) Number of Channels 2 channels (stereo) Frequency Response 5 Hz to 20 000 Hz Dynamic Range 96 dB Signal-to-Noise Ratio 98 dB Wow and Flutter Less than measurable limit MP3 Decoding Format MPEG1/2 Audio Layer 3 Max. Bit Rate: 320 kbps WMA (Windows Media® Audio) Decoding Format Max. Bit Rate: 192 kbps GENERAL Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance) Grounding System Negative ground Allowable Operating Temperature 0 °C to +40 °C (32 °F to 104 °F) Dimensions (W × H × D) Installation Size (approx.) 182 mm × 52 mm × 150 mm (7-3/16" × 2-1/16" × 5-15/16") Panel Size (approx.) 188 mm × 58 mm × 11 mm (7-7/16" × 2-5/16" × 7/16") Mass (approx.) 1.5 kg (3.3 lbs) (excluding accessories)
Page 2
(No.MA232)1-3 SECTION 1 PRECAUTIONS 1.1 Safety Precautions ! Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of preforming repair of this system. ! Please use enough caution not to see the beam directly or touch it in case of an adjustment or operation check.
