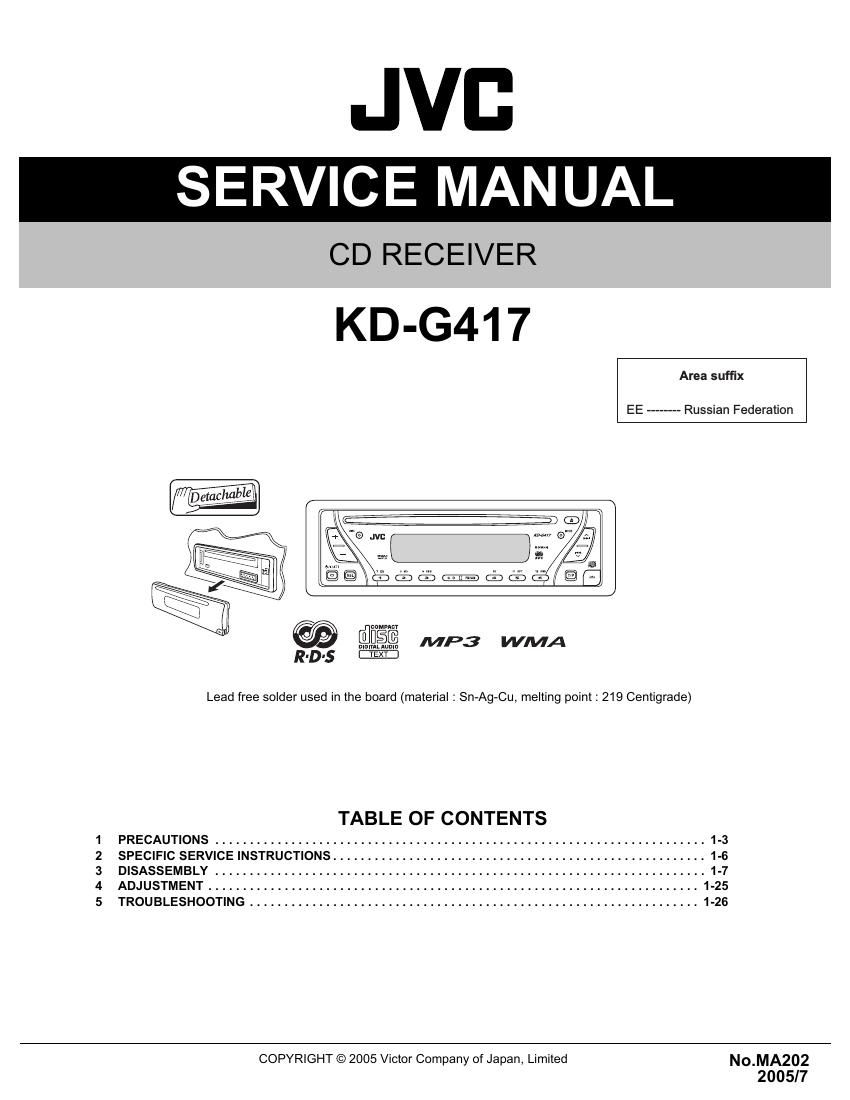

Page 1
JVC
SERVICE MANUAL
CD RECEIVER
KD-G417
Area suffix
EE -------- Russian Federation
:uMPAcr
£5le MP3 WMA
[1.0.5
Lead free solder used in the board (material : Sn-Ag-Cu, melting point: 219 Centigrade)
TABLE OF CONTENTS
1 PRECAUTIONS .......................................................... . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS ......................................... . .. 1-6
3 DISASSEMBLY .......................................................... . . . 1-7
4 ADJUSTMENT ......................................................... . . 1-25
5 TROUBLESHOOTING ................................................................. 1-26
COPYRIGHT © 2005 Victor Company of Japan, Limited No_MA202
2005/7
Page 2
SPECIFICATION
AUDIO AMPLIFIER SECTION
Maximum Power Output Front 50 W per channel
Rear 50 W per channel
Continuous Power Output (RMS) Front 19 W per channel into 4 Q, 40 HZ to 20 000 Hz at no more
than 0.8% total harmonic distortion.
Rear 19 W per channel into 4 Q, 40 HZ to 20 000 Hz at no more
than 0.8% total harmonic distortion.
Load Impedance 4 Q (4 £2 to 8 Q allowance)
Tone Control Range Bass :10 dB at 100 HZ
Treble :10 dB at 10 kHZ
Frequency Response 40 HZ to 20 000 Hz
Signal-to-Noise Ratio 70 dB
Line-Out Level/Impedance 2.5 V/20 k0 load (full scale)
Output Impedance 1 k0
TUNER SECTION
Frequency Range FM1/FM2 87.5 MHZ to 108.0 MHZ
FM3 65.00 MHZ to 74.00 MHz
AM (MW) 522 kHz to 1 620 kHz
(LW) 144 kHz to 279 kHz
FM Tuner Usable Sensitivity 11.3 dBf (1.0 uV/75 Q)
50 dB Quieting Sensitivity 16.3 dBf (1.8 uV/75 Q)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 HZ to 15 000 Hz
Stereo Separation 30 dB
Capture Ratio 1.5 dB
MW Tuner Sensitivity 20 uV
Selectivity 35 dB
LW Tuner Sensitivity 50 uV
CD PLAYER SECTION
Type Compact disc player
Signal Detection System
Non-contact optical pickup (semiconductor laser)
Number of Channels
2 channels (stereo)
Frequency Response
5 HZ to 20 000 HZ
Dynamic Range
96 dB
Signal-to-Noise Ratio
98 dB
Wow and Flutter
Less than measurable limit
MP3 Decoding Format
MPEG1/2 Audio Layer 3
Max Bit Rate: 320 kbps
WMA (Windows Media Audio) Decoding Format
Max. Bit Rate: 192 kbps
GENERAL
Power Requirement IOperating Voltage
DC 144 V (11 V to 16 V allowance)
Grounding System
Negative ground
Allowable Operating Temperature
0°C to +40°C
Dimensions (W x H X D) Installation Size (approx)
182 mm><52 mm>< 150 mm
Panel Size (approx)
188mm><58mm><11 mm
Mass (approx)
1.3 kg (excluding accessories)
Design and specifications are subject to change without notice.
1-2 (No.MA202)
