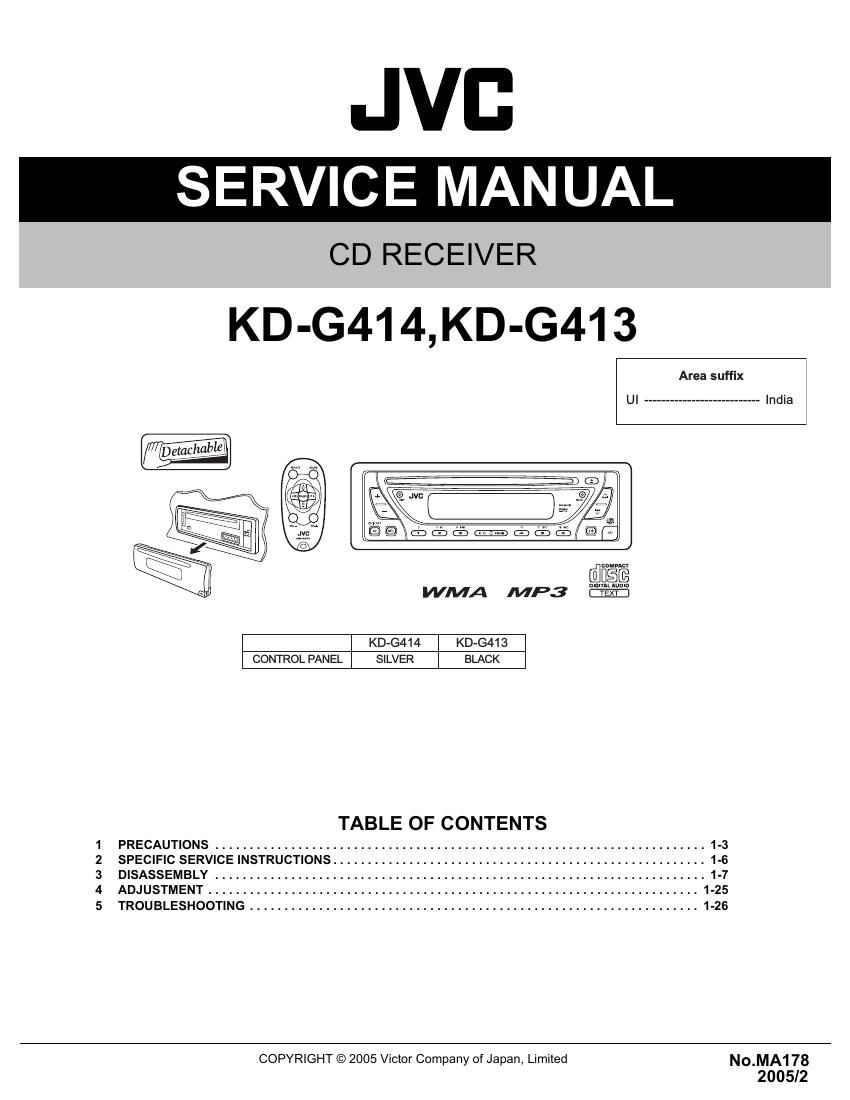

Page 1
JVC
SERVICE MANUAL
CD RECEIVER
KD-G414,KD-G413
UI ........................... India
Area suffix
WMA MP3
KD-G414 KD
TABLE OF CONTENTS
1 PRECAUTIONS ....................................................................... 1-3
2 SPECIFIC SERVICE INSTRUCTIONS ...................................................... 1-6
3 DISASSEMBLY ....................................................................... 1-7
4 ADJUSTMENT ....................................................................... 1-25
5 TROUBLESHOOTING ................................................................. 1-26
COPYRIGHT © 2005 Victor Company of Japan, Limited No_MA178
2005/2
Page 2
SPECIFICATION
AUDIO AMPLIFIER SECTION
Maximum Power Output Front 50 W per channel
Rear 50 W per channel
Continuous Power Output (RMS) Front 19 W per channel into 4 £2, 40 Hz to 20 000 Hz at no more
than 0.8% total harmonic distortion.
Rear 19 W perchannel into 4 £2, 40 Hz to 20 000 Hz at no more
than 0.8% total harmonic distortion.
Load Impedance 4 Q (4 £2 to 8 Q allowance)
Tone Control Range Bass :10 dB at 100 Hz
Treble :10 dB at 10 kHz
Frequency Response 40 Hz to 20 000 Hz
Signal-to-Noise Ratio 70 dB
Line-Out Level/Impedance 2.0 V/20 k0 load (full scale)
Output Impedance 1 k0
TUNER SECTION
Frequency Range FM 87.5 MHZ to 108.0 MHZ
AM 531 kHz to 1 602 kHz
FM Tuner Usable Sensitivity 11.3 dBf (1.0 uV/75 Q)
50 dB Quieting Sensitivity 16.3 dBf (1.8 uV/75 Q)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 35 dB
Capture Ratio 1.5 dB
AM Tuner Sensitivity 20 uV
Selectivity 35 dB
CD PLAYER SECTION
Type Compact disc player
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of Channels 2 channels (stereo)
Frequency Response 5 Hz to 20 000 Hz
Dynamic Range 96 dB
Signal-to-Noise Ratio 98 dB
Wow and Flutter Less than measurable limit
MP3 Decoding Format MPEG1/2 Audio Layer 3
Max Bit Rate: 320 kbps
WMA (Windows Media Audio) Decoding Format Max Bit Rate: 192 kbps
GENERAL
Power Requirement IOperating Voltage DC 14.4 V (11 V to 16 V allowance)
Grounding System Negative ground
Allowable Operating Temperature 0°C to +40°C
Dimensions (W X H X D) Installation Size (approx) 182 mm X 52 mm X 150 mm
Panel Size (approx) 188 mm X 58 mm X 11 mm
Mass (approx.) 1.3 kg (excluding accessories)
- Design and specifications are subject to change without notice.
- Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/
or other countries.
1-2 (No.MA178)
