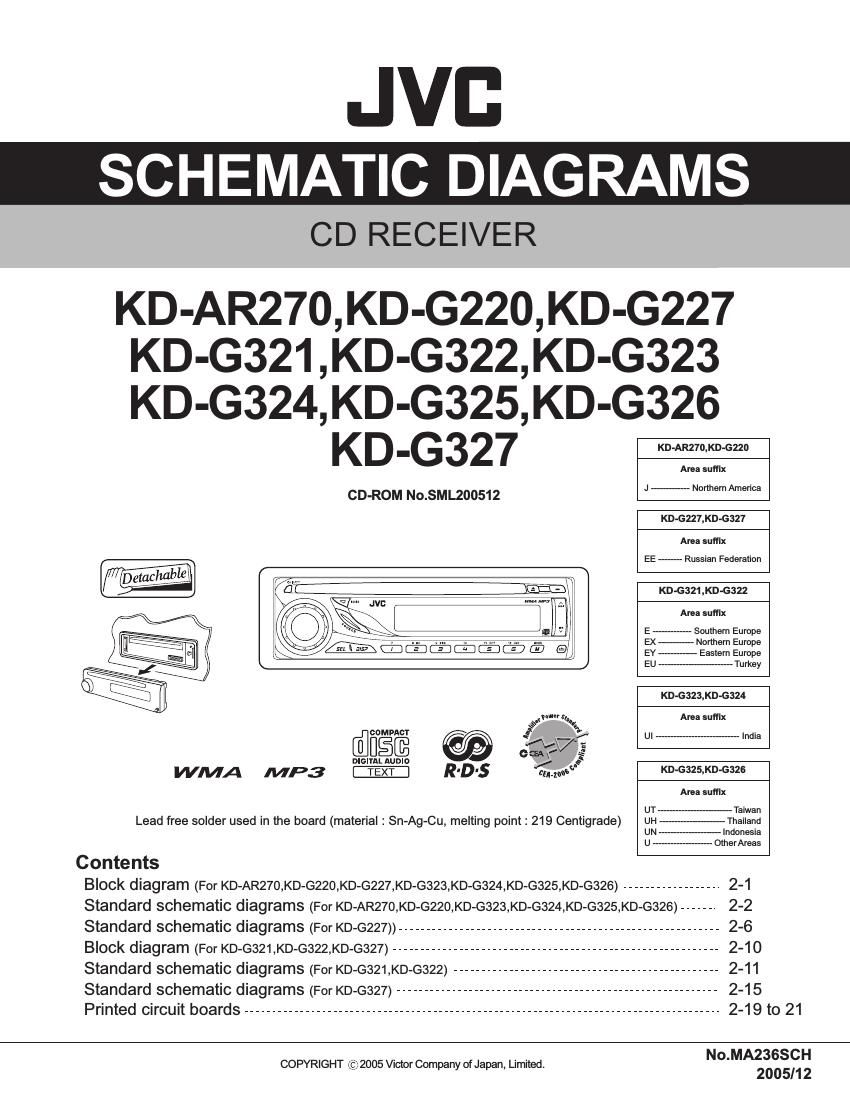

Jvc KDG 325 Schematic
This is the 50 pages manual for Jvc KDG 325 Schematic.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Page: 1 / 50
Extracted text from Jvc KDG 325 Schematic (Ocr-read)
Page 2
Safety precaution
A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforrning repair of this system.
& CAUTION Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
Difference point
KD-AR27O KD-GSZ1 KD-G323,KD-GSZ4 KD-GBZ7
KD-GZZO,KD-GZZ7 KD-GSZZ KD-G325,KD-G326
Remote ready YES NO YES YES
Steering remote ready NO YES NO NO
Power antenna NO NO YES NO
Telephone Muting NO YES NO YES
