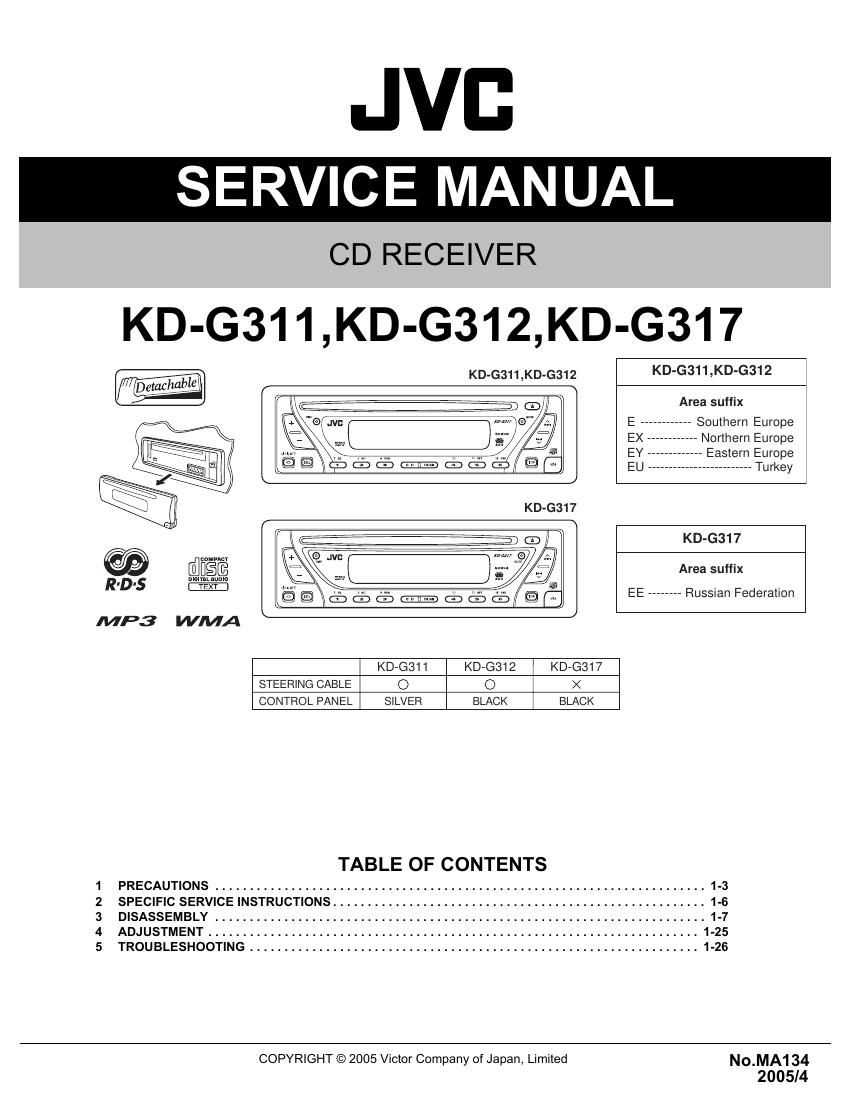

Jvc KDG 311 Service Manual

Page 2

SPECIFICATION

AUDIO AMPLIFIER SE

CTION

Maximum Power Output Front 50 W per channel
Rear 50 W per channel
Continuous Power Output (RMS) Front 19 W per channel into 4 Q, 40 Hz to 20 000 Hz at no more
than 0.8% total harmonic distortion.
Rear 19 W per channel into 4 Q, 40 Hz to 20 000 Hz at no more
than 0.8% total harmonic distortion.
Load Impedance 4 Q (4 £2 to 8 Q allowance)
Tone Control Range Bass :10 dB at 100 HZ
Treble :10 dB at 10 kHz
Frequency Response 40 Hz to 20 000 Hz
Signal-to-Noise Ratio 70 dB
Line-Out Level/Impedance 2.5 V/20 k0 load (full scale)
Output Impedance 1 k9
Other Terminal Steering wheel remote input (KD-6311,KD-G312)
TUNER SECTION
Frequency Range FM 875 MHZ to 108.0 MHZ
FM1/FM2 (KB-6317) 87.5 MHz to 108.0 MHZ
FM3 (KB-6317) 65.00 MHZ to 74.00 MHZ
AM (MW) 522 kHz to 1 620 kHz
(LW) 144 kHz to 279 kHZ
FM Tuner Usable Sensitivity 11.3 dBf (1.0 uV/75 Q)
50 dB Quieting Sensitivity 16.3 dBf (1.8 uV/75 51)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 30 dB
Capture Ratio 1.5 dB
MW Tuner Sensitivity 20 uV
Selectivity 35 dB
LW Tuner Sensitivity 50 uV
CD PLAYER SECTION
Type Compact disc player

Signal Detection System

Non-contact optical pickup (semiconductor laser)

Number of Channels

2 channels (stereo)

Frequency Response

5 HZ to 20 000 HZ

Dynamic Range

96 dB

Signal-to-Noise Ratio

98 dB

Wow and Flutter

Less than measurable limit

MP3 Decoding Format

MPEG1/2 Audio Layer 3
Max. Bit Rate: 320 kbps

WMA (Windows Media Audio) Decoding Format

Max. Bit Rate: 192 kbps

GENERAL

Power Requirement (Operating Voltage

DC 144 V (11 V to 16 V allowance)

Grounding System

Negative ground

Allowable Operating Temperature

0°C to +40°C

Dimensions (W X H X D) Installation Size (approx.)

182 mm><52 mm>< 150 mm

Panel Size (approx.)

188mm><58mm><11 mm

Mass (approx.)

1.3 kg (excluding accessories)

- Design and specifications are subject to change without notice.
- Microsoft and Windows Media are either registered trademarks or trad
or other countries.

1-2 (No.MA134)
