Jvc KDG 120 Schematic
This is the 14 pages manual for Jvc KDG 120 Schematic.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Page: 1 / 14

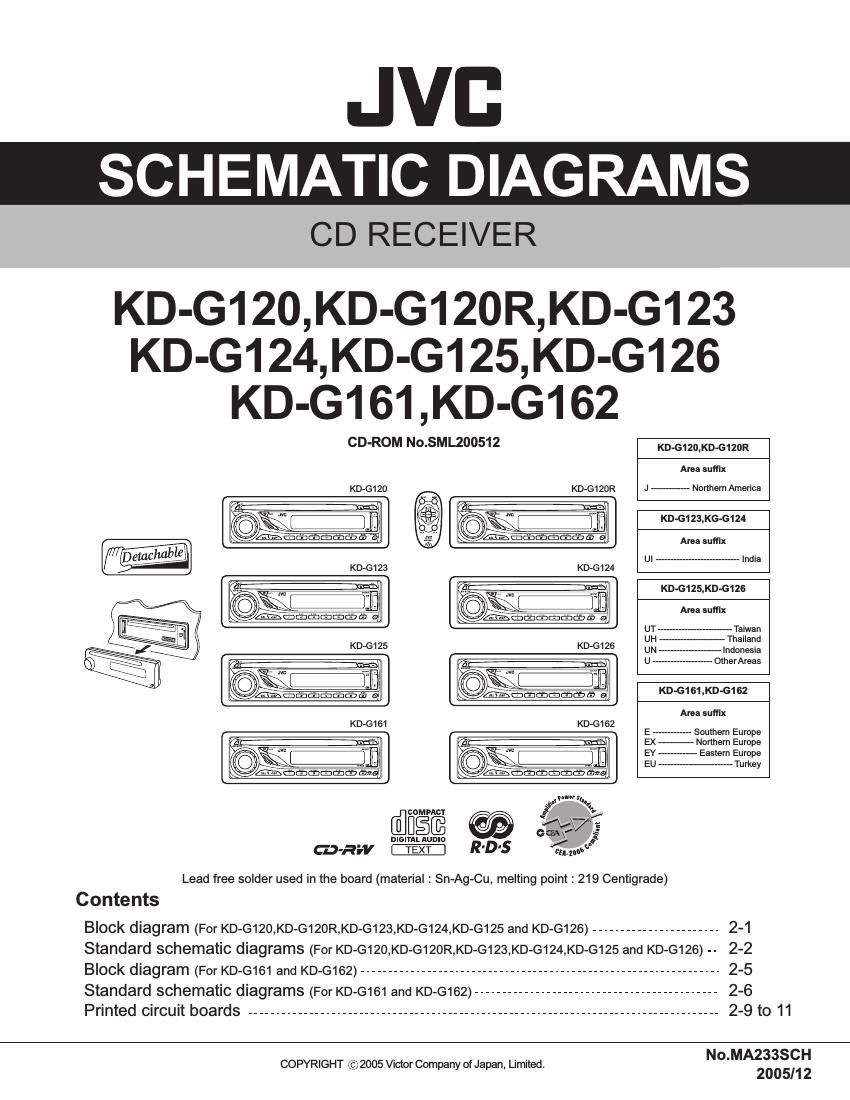

Extracted text from Jvc KDG 120 Schematic (Ocr-read)
Page 2
Safety precaution
A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
A CAUTION Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
Difference point
KD-G120R
KD-G120,KD-G123,KD-G124,KD-G125,KD-G126
KD-G161,KD-G162
Remote controller YES
NO
NO
Telephone Muting N0
NO
YES
