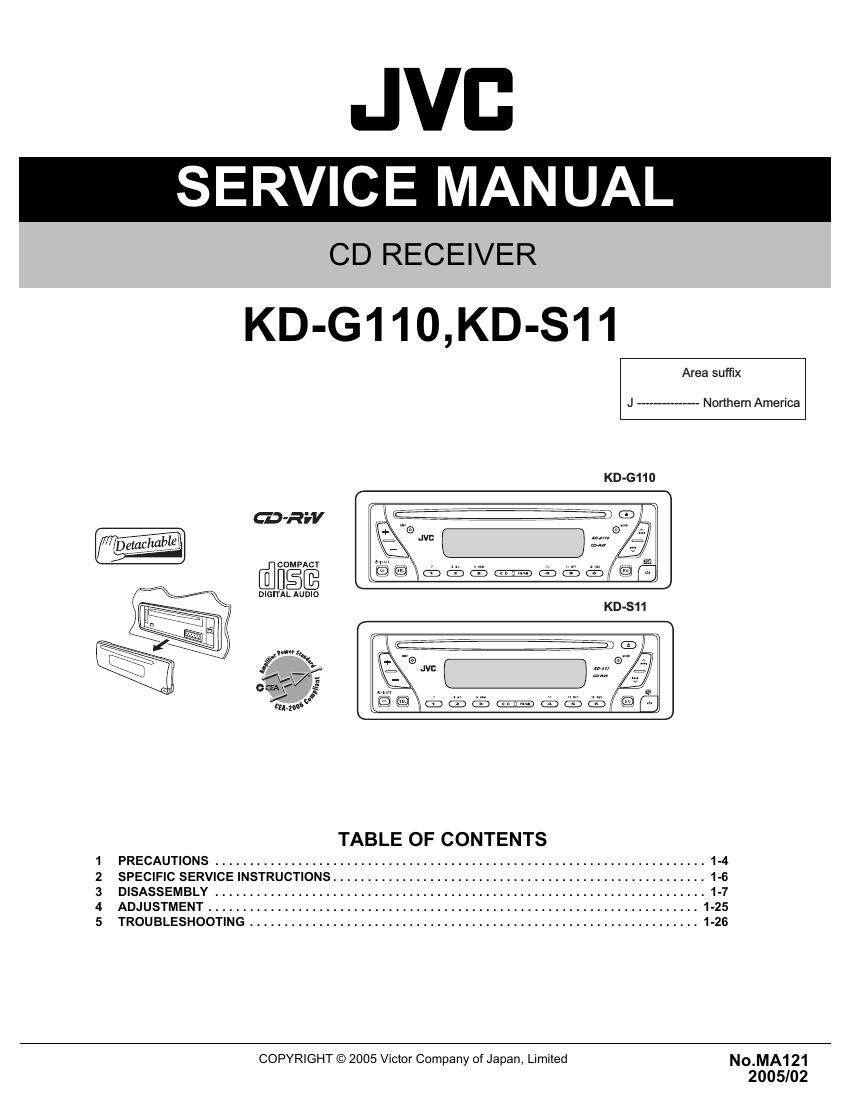

Jvc KDG 110 Service Manual

Page 2

SPECIFICATION

KD-G110

AUDIO AMPLIFIER SECTION

Power Output

18 W RMS X 4 Channels at 4 Q and [< or =]1% THD+N

Signal to Noise Ratio

80 dBA (reference: 1 W into 4 Q)

Load Impedance

4 Q (4 £2 to 8 Q allowance)

Tone Control Range Bass

:10 dB at 100 Hz

Treble

:10 dB at 10 kHz

Frequency Response

40 Hz to 20 000 Hz

Line-Out Level/Impedance

2.0 V/20 kQ load (full scale)

Output Impedance 1 k9
TUNER SECTION
Frequency Range FM 875 MHZ to 107.9 MHz (with channel interval set to 200 kHz)
87.5 MHz to 108.0 MHz (with channel interval set to 50 kHz)
AM 530 kHz to 1 710 kHz (with channel interval set to 10 kHz)
531 kHz to 1 602 kHz (with channel interval set to 9 kHz)
FM Tuner Usable Sensitivity 11.3 dBf (1.0 pV/75 Q)
50 dB Quieting Sensitivity 16.3 dBf (1.8 pV/75 0)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 35 dB
Capture Ratio 1.5 dB
AM Tuner Sensitivity 20 MV
Selectivity 35 dB
CD PLAYER SECTION
Type Compact disc player

Signal Detection System

Non-contact optical pickup (semiconductor laser)

Number of channels

2 channels (stereo)

Frequency Response

5 Hz to 20 000 Hz

Dynamic Range

96 dB

Signal-to-Noise Ratio

98 dB

Wow and Flutter

Less than measurable limit

GENERAL

Power Requirement Operating Voltage

DC 14.4 V (11 V to 16 V allowance)

Grounding System

Negative ground

Allowable Operating Temperature

0°C to +40°C (32°F to 104°F)

Dimensions (W x H X D) Installation Size (approx.)

182 mm X 52 mm X 150 mm (7-3/16" >< 2-1/16" >< 5-15/16")

Panel Size (approx.)

188 mm X 58 mm X 11 mm (7-7/16" >< 2-5/16 >< 7/16")

Mass (approx.)

1.3 kg (2.9 lbs) (excluding accessories)

1-2 (No.MA121)
