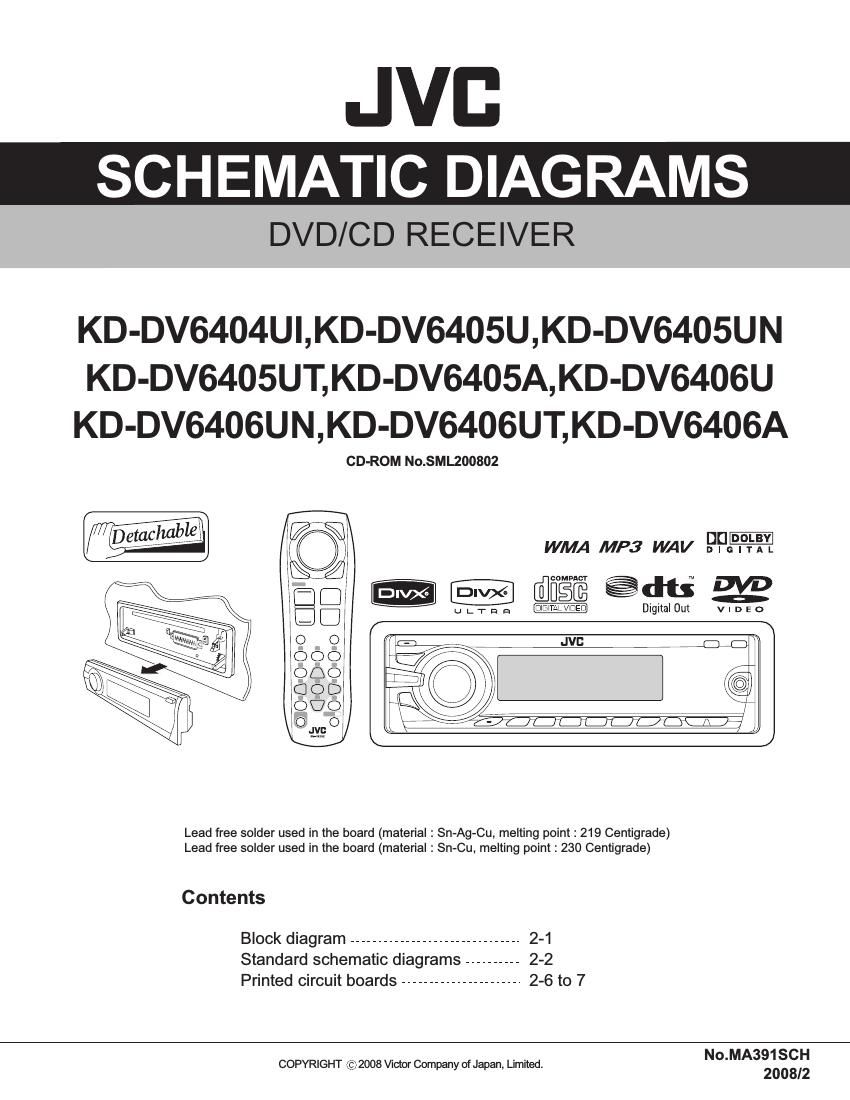

Jvc KDDV 6405 A Service Manual
This is the 10 pages manual for Jvc KDDV 6405 A Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KDDV 6405 A Service Manual (Ocr-read)
Page 2
Safety precaution
& CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
A CAUTION Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
Page 9
I Function board Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
fonivard side
Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade)
reverse side
I DVD board
fonivard side
Lead free solder used in the board (material : Sn-Ag-Cu, melting point: 219 Centigrade)|
Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade)|
2-7
