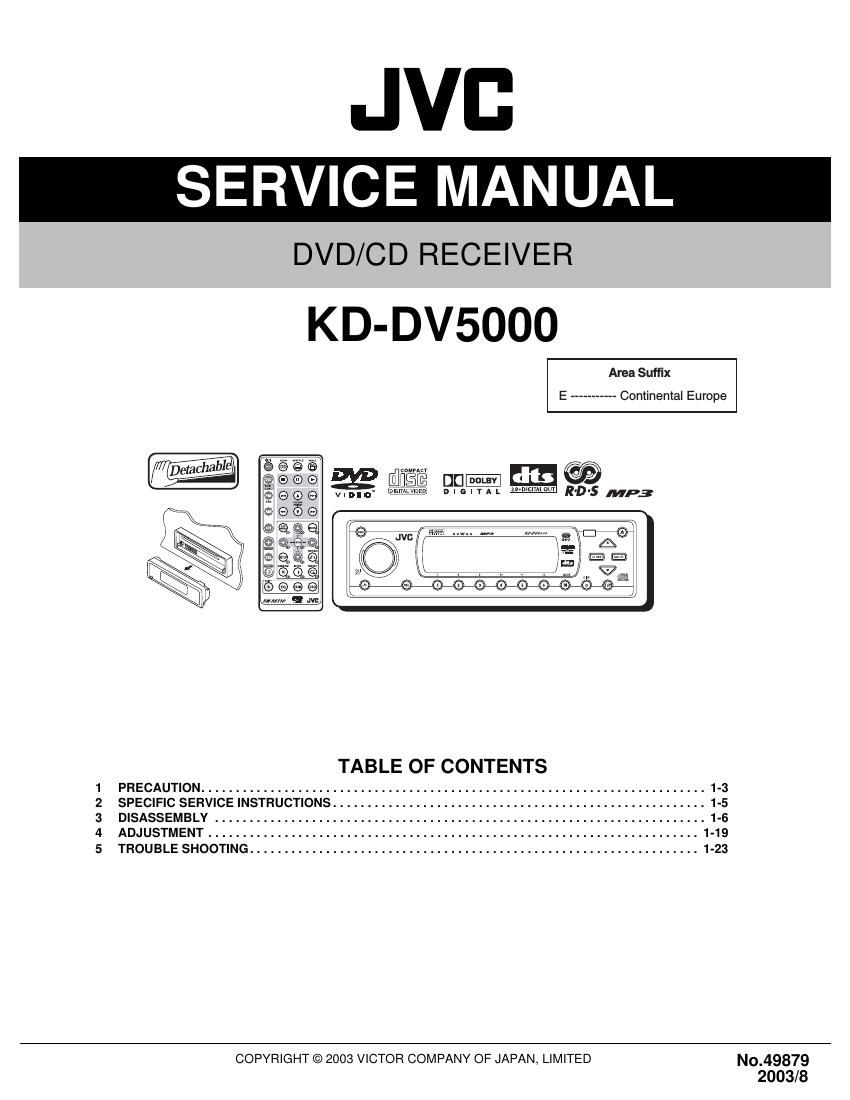

Jvc KDDV 5000 Service Manual
This is the 30 pages manual for Jvc KDDV 5000 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KDDV 5000 Service Manual (Ocr-read)
Page 1
1-2 (No.49879) SPECIFICATION - Design and specifications are subject to change without notice. - If a kit is necessary for your car, consult a telephone directory for the nearest car audio speciality shop. - Mistracking may result from driving on extremely rough roads. This does not damage the unit and the disc, but will be annoying. We recommend that you stop disc play while driving on such rough roads. AUDIO AMPLIFIER SECTIONMaximum Power Output Front 50 W per channel Rear 50 W per channel Continuous Power Output (RMS) Front 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion. Rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion. 0.8% total harmonic distortion. Load Impedance 4 Ω (4 Ω to 8 Ω allowance) Equalizer Control Range Frequencies 60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.4 kHz, 6 kHz, 12 kHz Level ±10 dB Signal-to-Noise Ratio 70 dB Audio output level Analog (2nd AUDIO OUT) 6 mW (at 16 Ω) Digital (DIGITAL OUT: Optical) Signal wave length: 660 nm Output level -21 dBm to -15 dBm Line-Out Level/Impedance 2.0 V/20 kΩ load (full scale) Output Impedance 1 kΩ Color system NTSC Video output (composite) 1 Vp-p/75 Ω TUNER SECTION Frequency Range FM 87.5 MHz to 108.0 MHz AM (MW) 522 kHz to 1620 kHz (LW) 144 kHz to 279 kHz [FM Tuner] Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω) 50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω) Alternate Channel Selectivity (400 kHz)65 dB Frequency Response 40 Hz to 15000 Hz Stereo Separation 35 dB Capture Ratio 1.5 dB [AM Tuner] Sensitivity 20 µV Selectivity 35 dB DVD/CD PLAYER SECTIONSignal Detection System Non-contact optical pickup (semiconductor laser) Number of channels 2 channels (stereo) Frequency Response DVD, fs=48 kHz 16 Hz to 22000 Hz DVD, fs=96 kHz 16 Hz to 44000 Hz VCD, CD, MP3 16 Hz to 20000 Hz Dynamic Range 96 dB Signal-to-Noise Ratio 98 dB Wow and Flutter Less than measurable limit MP3 recording format MPEG 1/2 Audio Layer 3 Max. Bit rate 320 Kbps GENERAL Power Requirement Operating Voltage: DC 14.4 V (11 V to 16 V allowance) Grounding System Negative ground Allowable Operating Temperature 0°C to +40°C (32°F to 104°F) Dimensions (W × H × D) Installation Size (approx.) 182 mm × 52 mm × 158 mm (7-3/16" × 2-1/16" × 6-1/4") Panel Size (approx.) 188 mm × 58 mm × 12 mm (7-7/16" × 2-5/16" × 1/2") Mass (approx.) 1.7 kg (3.8 lbs) (excluding accessories)
Page 2
(No.49879)1-3 SECTION 1 PRECAUTION 1.1 Safety Precautions ! Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of preforming repair of this system. ! Please use enough caution not to see the beam directly or touch it in case of an adjustment or operation check.
