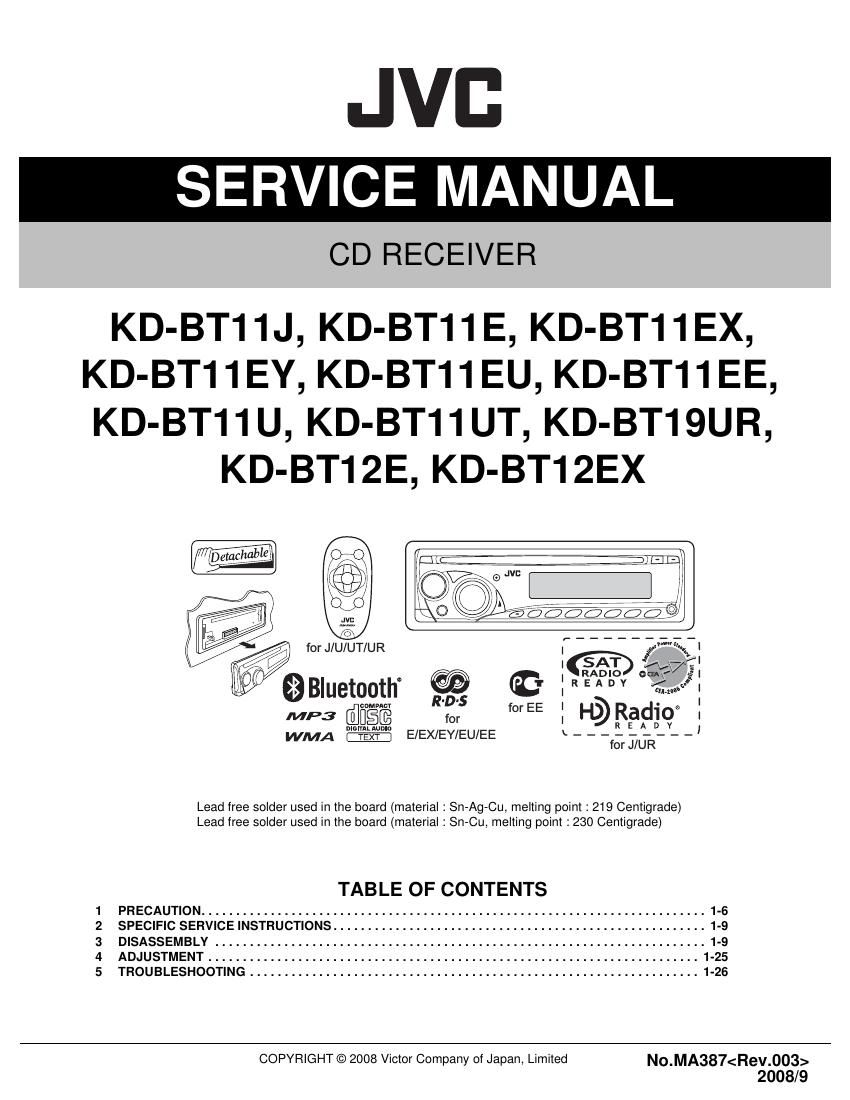

SERVICE MANUAL
CD RECEIVER
KD-BT1 1 J, KD-BT11 E, KD-BT11 EX,
KD-BT11EY, KD-BT11 EU, KD-BT11EE,
KD-BT11 U, KD-BT11 UT, KD-BT19UR,
KD-BT12E, KD-BT12EX
, for J/U/UT/UR I gum," I
/¢ : $9.3 @le
- aBluetooth @ G .W /w*.
\
L1
R-D-S _ B .
MP3 @figfi for forEE : H3599}? I
WMA E/EX/EY/EU/EE __________ i
for J/UR
Lead tree solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Lead tree solder used in the board (material : Sn-Cu, melting point : 230 Centigrade)
TABLE OF CONTENTS
1 PRECAUTION ......................................................................... 1-6
2 SPECIFIC SERVICE INSTRUCTIONS ...................................................... 1-9
3 DISASSEMBLY ....................................................................... 1-9
4 ADJUSTMENT ....................................................................... 1-25
5 TROUBLESHOOTING ................................................................. 1-26
COPYRIGHT © 2008 Victor Company of Japan, Limited No_MA387
2008/9
