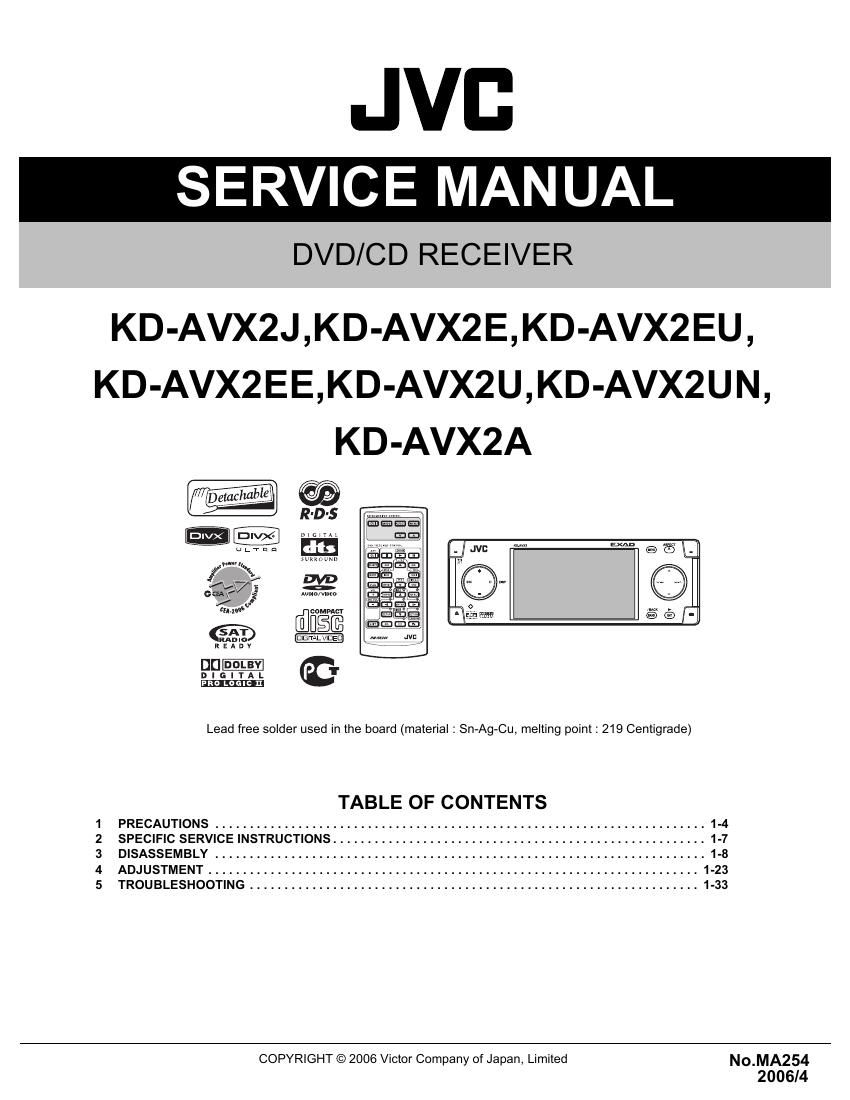

Jvc KDAVX 2 UN Service Manual

Page 2

SPECIFICATION

AUDIO AMPLIFIER SECTION

Power Output

Only the United States

20 W RMS X 4 Channels at 4 Q and [< or =]1% THD+N

Signal to Noise Ratio

Only the United States

80 dBA (reference: 1 W into 4 Q)

In countries other than the United States

70 dB

Maximum Power Output In other countries Front 50 W per channel
Rear 50 W per channel
Continuous Power Output In other countries Front 20 W per channel into 4 Q, 40 HZ to 20 000 Hz at no more than 0.8%
(RMS) total harmonic distortion.
Rear 20 W per channel into 4 Q, 40 HZ to 20 000 HZ at no more than 0.8%
total harmonic distortion.

Load Impedance

4 £2 (4 Q to 8 £2 allowance)

Equalizer Control Range

Frequencies

60 Hz, 150 Hz, 400 HZ, 1 kHz, 2.5 kHz, 6.3 kHz, 15 kHZ

Level

:10 dB

Line-In Level/Impedance

1.5 V/20 k9 load

Line-Out Level/Impedance

Only the United States and Southern Europe

2.5 V/20 k9 load (full scale)

In other countries

2.5 V/20 k9 load (full scale)

Output Impedance

Only the United States and Southern Europe

1kQ

In other countries

25 V/20 k9 load (full scale)

Subwoofer-Out Level/

Only the United States and Southern Europe

2.0 V/20 k9 load (full scale)

Impedance In other countries 25 V/20 k9 load (full scale)
Color System Only the United States NTSC
In Europe PAL
In other countries NTSC/PAL
Video Input (composite) 1 Vp-p/75 (2
Video Output (composite) 1 Vp-p/75 £2

Other Terminals

Only the United States and Europe

2nd AUDIO OUT, CD changer, Steering wheel remote input (OE RE-
MOTE)

In other countries

2nd AUDIO OUT, CD changer

Frequency Range

TUNER SECTION
FM Only the United States 87.5 MHZ to 107.9 MHZ (with channel interval set to 100 kHz or 200
kHz)
Only the United States 87.5 MHZ to 108.0 MHZ (with channel interval set to 50 kHZ)
In other countries 87.5 MHZ to 108.0 MHZ
AM Only the United States 530 kHZ to 1 710 kHZ (with channel interval set to 10 kHz)

Only the United States

531 kHz to 1 602 kHZ (with channel interval set to 9 kHZ)

In Europe

(MW) 522 kHZ to 1 620 kHz

In Europe

(LW) 144 kHz to 279 kHZ

In other countries

531 kHz to 1 602 kHz

FM Tuner Usable Sensitivity 11.3 dBf (1.0 uV/75 0)
so dB Quieting Sensitivity 16.3 dBf (1.8 uv175 0)
Alternate Channel Selectivity (400 kHZ) 65 dB
Frequency Response 40 Hz to 15 000 HZ
Stereo Separation 35 dB
Capture Ratio 1.5 dB

AM Tuner( In other countries ) Sensitivity 20 pV
Selectivity 35 dB

MW Tuner ( In Europe ) Sensitivity 20 11V
Selectivity 35 dB

LW Tuner( In Europe ) Sensitivity 50 uV

1-2 (N0.MA254)
