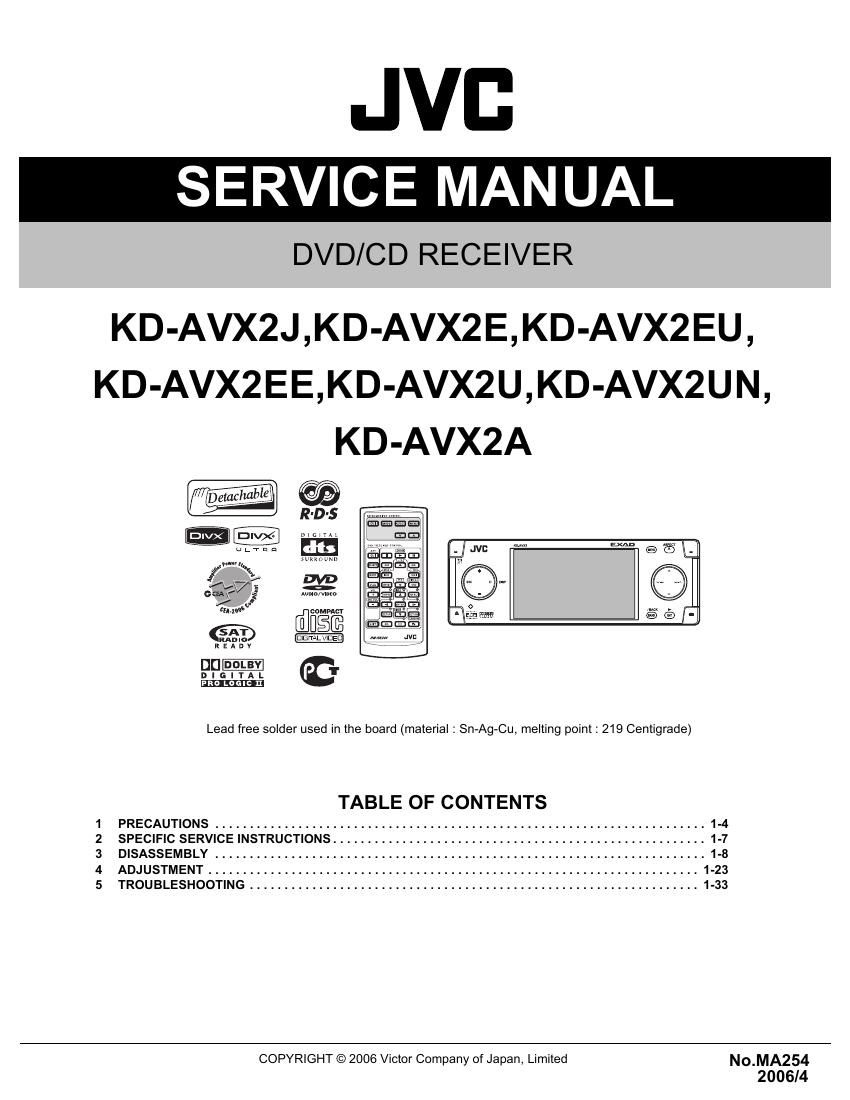

Jvc KDAVX 2 U Service Manual
This is the 75 pages manual for Jvc KDAVX 2 U Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KDAVX 2 U Service Manual (Ocr-read)
Page 2
SPECIFICATION
AUDIO AMPLIFIER SECTION
Power Output
Only the United States
20 W RMS X 4 Channels at 4 Q and [< or =]1% THD+N
Signal to Noise Ratio
Only the United States
80 dBA (reference: 1 W into 4 Q)
In countries other than the United States
70 dB
Maximum Power Output In other countries Front 50 W per channel
Rear 50 W per channel
Continuous Power Output In other countries Front 20 W per channel into 4 Q, 40 HZ to 20 000 Hz at no more than 0.8%
(RMS) total harmonic distortion.
Rear 20 W per channel into 4 Q, 40 HZ to 20 000 HZ at no more than 0.8%
total harmonic distortion.
Load Impedance
4 £2 (4 Q to 8 £2 allowance)
Equalizer Control Range
Frequencies
60 Hz, 150 Hz, 400 HZ, 1 kHz, 2.5 kHz, 6.3 kHz, 15 kHZ
Level
:10 dB
Line-In Level/Impedance
1.5 V/20 k9 load
Line-Out Level/Impedance
Only the United States and Southern Europe
2.5 V/20 k9 load (full scale)
In other countries
2.5 V/20 k9 load (full scale)
Output Impedance
Only the United States and Southern Europe
1kQ
In other countries
25 V/20 k9 load (full scale)
Subwoofer-Out Level/
Only the United States and Southern Europe
2.0 V/20 k9 load (full scale)
Impedance In other countries 25 V/20 k9 load (full scale)
Color System Only the United States NTSC
In Europe PAL
In other countries NTSC/PAL
Video Input (composite) 1 Vp-p/75 (2
Video Output (composite) 1 Vp-p/75 £2
Other Terminals
Only the United States and Europe
2nd AUDIO OUT, CD changer, Steering wheel remote input (OE RE-
MOTE)
In other countries
2nd AUDIO OUT, CD changer
Frequency Range
TUNER SECTION
FM Only the United States 87.5 MHZ to 107.9 MHZ (with channel interval set to 100 kHz or 200
kHz)
Only the United States 87.5 MHZ to 108.0 MHZ (with channel interval set to 50 kHZ)
In other countries 87.5 MHZ to 108.0 MHZ
AM Only the United States 530 kHZ to 1 710 kHZ (with channel interval set to 10 kHz)
Only the United States
531 kHz to 1 602 kHZ (with channel interval set to 9 kHZ)
In Europe
(MW) 522 kHZ to 1 620 kHz
In Europe
(LW) 144 kHz to 279 kHZ
In other countries
531 kHz to 1 602 kHz
FM Tuner Usable Sensitivity 11.3 dBf (1.0 uV/75 0)
so dB Quieting Sensitivity 16.3 dBf (1.8 uv175 0)
Alternate Channel Selectivity (400 kHZ) 65 dB
Frequency Response 40 Hz to 15 000 HZ
Stereo Separation 35 dB
Capture Ratio 1.5 dB
AM Tuner( In other countries ) Sensitivity 20 pV
Selectivity 35 dB
MW Tuner ( In Europe ) Sensitivity 20 11V
Selectivity 35 dB
LW Tuner( In Europe ) Sensitivity 50 uV
1-2 (N0.MA254)
